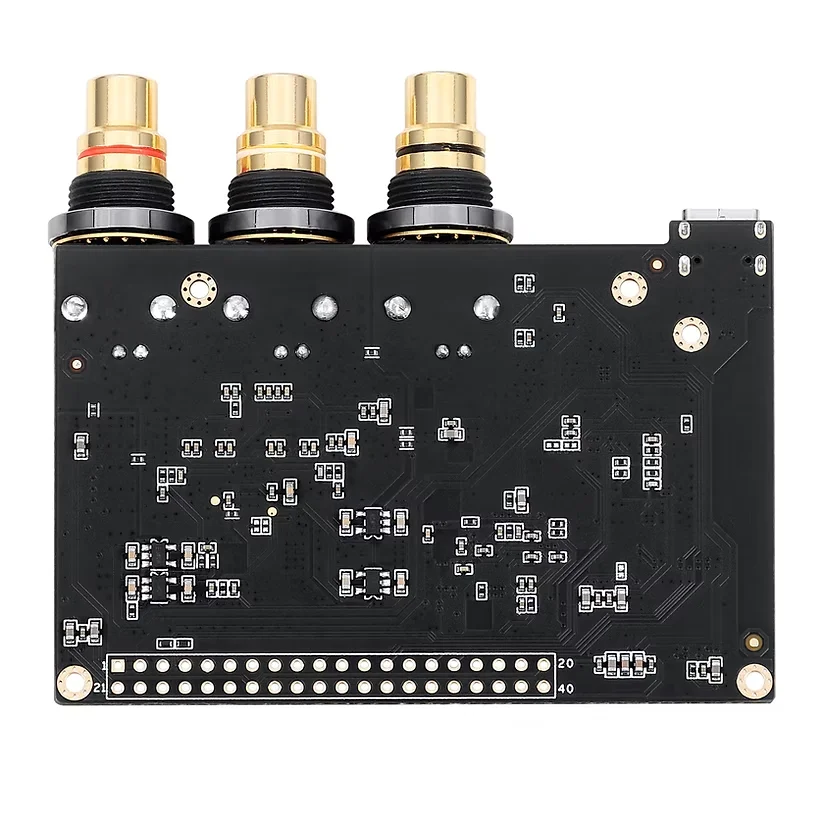

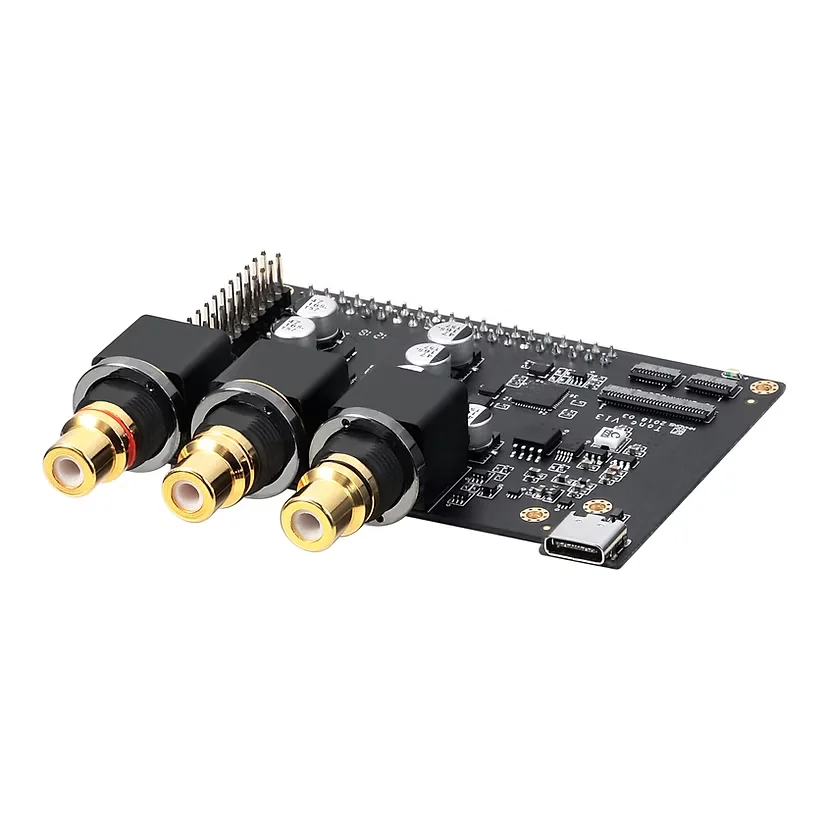

High Performance DAC With ES9038Q2M 32-Bit Stereo Mobile Audio Generic/VIMs Edition Tone Board Of Khadas
Technical Details
| Audio formats: | APE2, FLAC,OGG,WAV,ACC,ALAC,MP3,WMA, etc. |
| Brand Name: | Khadas |
| Chipset: | XMOS XU208-128-QF48 Octa Cores, Core Share up to 500 MIPS |
| Crosstalk: | More than 127dB @ 10Hz~20KHz |
| DAC: | ES9038Q2M 32-Bit Stereo Mobile Audio DAC |
| Data Clock Jitter: | Less than 30ps |
| Demo Board Type: | ARM |
| Dimensions: | 82.0 x 74.5 x 24.0 mm |
| DNR: | More than 120dB @ 10Hz~20KHz |
| FPC Connector 30pin: | 30-Pin 0.5mm Pitch: for 8 Channels Extension |
| FPC Connectors 10pin-A, VIMs Edition: | 10-Pin 0.5mm Pitch: for VIMs I2S Extension |
| FPC Connectors 10pin-B, VIMs Edition: | 10-Pin 0.5mm Pitch: for OLED Display |
| Frequency response: | +/- 0.08 dB @ 10Hz~20KHz |
| Indicator: | White LED x1 |
| Line Out: | 1x Red RCA for Right Channel, 1 x White RCA for Left Channel |
| Model Number: | Tone Board |
| Mounting holes: | Size M2 x 5 |
| PIN Header: | Yes on VIMs Edition, No on Generic Edition |
| Reference Clock Jitter: | Less than 3ps |
| Sample rate: | PCM: Up to 768KHz@32bit; DSD: Up to DSD256@1bit |
| SNR: | More than 120dB @ 10Hz~20KHz |
| S/PDIF IN: | Up to 192KHz |
| S/PDIF OUT: | Yes, only supported on VIMs Edtions= |
| THD+N: | Less than 0.000337% @1KHz |
| USB-C Port: | Power Supply(5V/500mA) & USB 2.0 Data |
