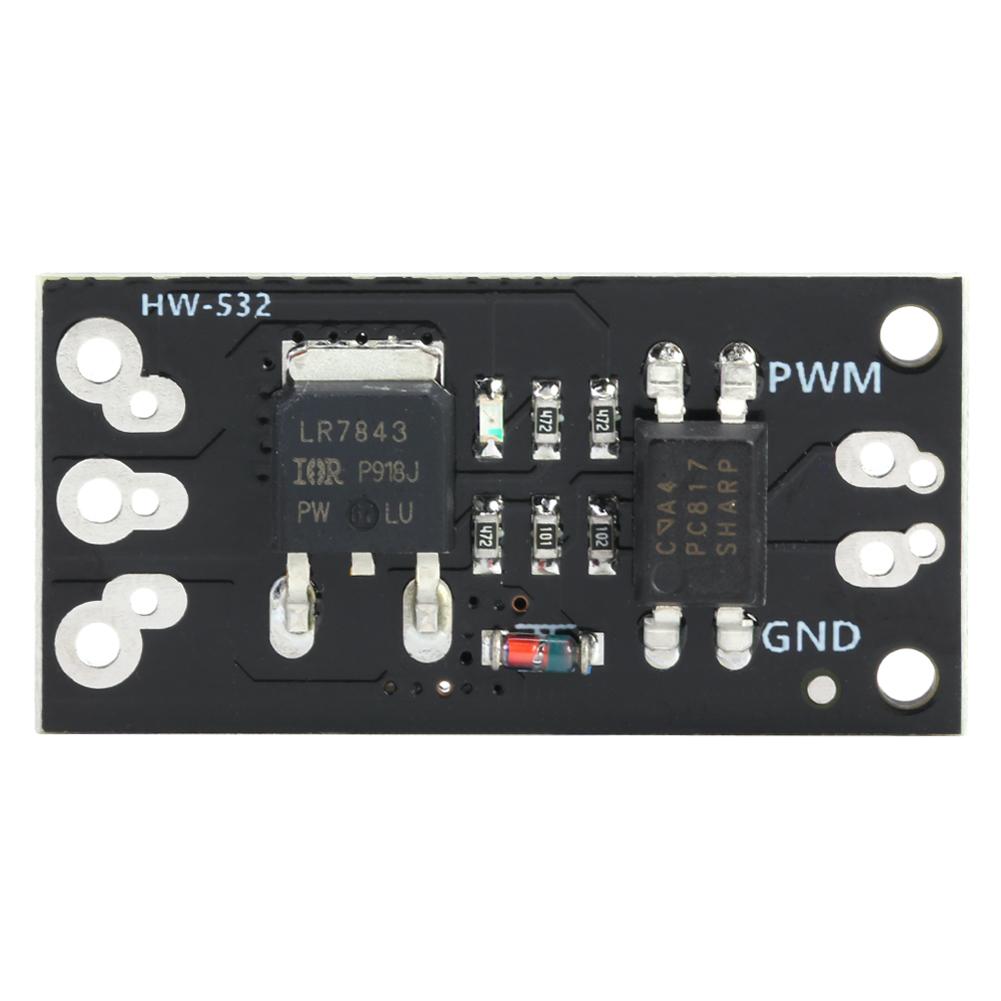

HW-532B LR7843 Isolated MOSFET MOS Tube FET Module Replacement Relay Board, 501 Original

Feature:1. Compatible with MCU and control board, 3V or 5V signal.2. High level start, low level stop, PWM speed regulation.3. It is widely used to control the start and stop of motor, solenoid valve and other mainstream equipment.4. With optocoupler isolation, control signal and controlled equipment power supply isolation, greatly improving anti-interference.5. PC817 linear optocoupler is used to transmit continuously changing analog voltage or current signals.Specification:Product Name: FET MODULEProduct model: HW-532BMOS tube model: LR7843Voltage regulation mode: PWM modulationInput voltage: DC5-30VMaximum current: 161APackage size: 80 * 60mm/3.14*2.36''Warm Tips:1. The current and supply voltage of the controlled equipment depend on the MOS tube model and specification.2. Do not connect the positive and negative poles reversely, which will burn the module.3. MCU output, high level, start, low level, stop, PWM, speed regulation.Note: Please allow 1-3mm differs due to manual measurement.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.1 X Isolated MOSFET MOS Tube FET Module
