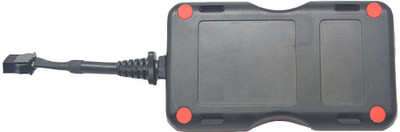

Global Partner GPTR06S-12 GPS Car Alarm

Chapter 1: Indicating Led Light 1.Blue Led-GSM status indicator1)Quick Flashing: Working normally, Uploading GPRS data to platform server.2)Slow Flashing: Working normally, Receive GSM signal normally.3)Continuously in bright status: Searching GSM signal4)Continuously in Dark status: Device Error 2.Red Led- Power status indicator1)Quick Flashing: Working normally (Working by backup car battery2)Slow Flashing：Working normally (Working under battery of device3)Continuously in dark or bright status：Device Error 3.Green Led-GPS status Indicator1)Flashing: Working normally. GPS located. 2)Continuously in bright state: Searching GPS signal3)Continuously in dark state:Device Error Chapter 2 Before installation1)Open the packing box to check whether the type of device is correct and whether the accessories are included. 2)Choose SIM card: each device needs to insert a GSM SIM card. Chapter 3: Installing SIM card.Please use GSM network SIM card; Power off before installing or removing the SIM card. The SIM card used should be enabled for GPRS and for caller ID. Ensure the SIM card can send and receive SMSChapter 4: Installation1)The device installation is covert. Please refer installation to an auto electrical contractor. 2)To prevent theft of the device, it should be installed as covertly as possible. 3) Avoid placing the device close to higher power electrical devices4) The device should be fixed into position with cable ties or wide double-side tape5)The device has built-in GSM antenna and GPS antenna. During installation, please make sure the receiving side face is up, with no metal object above the device to interfere with GPS reception. The following places are suggested for installation: shelter in the decorated board below the front windshield; shelter around the front instrument panel (non-metallic material face)Chapter 5: Operation of device: 1)Open top cover firstly, Note top cover hasn’t fixed with screws in factory 2)Please press power switch on the up position (Powered off).3)Insert SIM card to the card slot and close well. 4)Please press power switch on the down position (Powered on). 5)Please close the top cover and fix it with 4 screws. 6)Connect the power code with the interface of device7)Please require professional technical to connect wires and install in the car properly. Chapter 6: Cautions of device wiring 1)Power cord wiring: The standard voltage is 9.5V-36VDC. The red line is the positive. The black line is the negative. The negative should earth alone or link iron during installing. Red Led light will flashing while device installed correctly, GSM blue led light and GPS Green led light will flashing around 1 minutes later after getting signal.2)Engine Cut wiring: 1. This device supports12V relay, please make sure install correctly of the power code wiring, or it can’t cut engine. 2. For safety, the device will cut engine via speed is less than 20km per hour. 3. Please use the device in a valid way, or you will be responsible for any invalid activities. Chapter 7: Message command: User can set different kinds of function commands via sending message, including position check, engine cut, etc., Below commands and punctuation marks must be putted under English status. All commands will get auto replies according to the message sent. Note: device with initial password 6666.
