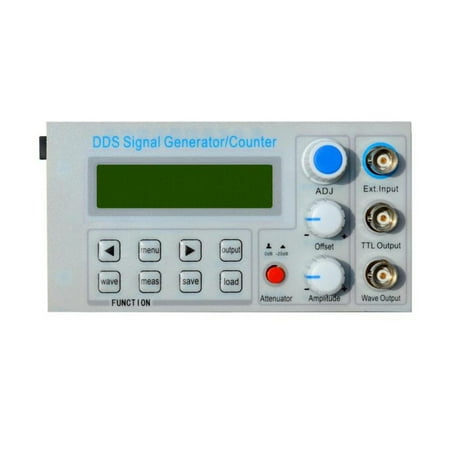

GLFILL Sgp1010S Embedded Panel Dds Function Signal Generator Frequency Counter 10Mhz

Feature *Small body many functions and easy to carry. It has high reliability large -scale integrated circuits surface installation process high reliability and long service life. *High frequency accuracy frequency accuracy can reach 10 ~ 6 levels; high frequency resolution full range frequency defense rate 10MHz. *Infinite line restrictions the full range of frequency regardless of gear direct digital settings. The waveform accuracy is high the output waveform is synthesized by the function calculation value the waveform accuracy is high and the distortion is small. A variety of waveforms: sine square waves triangular waves sawtooth waves. *Scanning characteristics with frequency scanning function scan the starting point set. Storage characteristics can store 10 sets of instrument status parameters set by 10 sets of users which can be transferred and reproduced at any time. *Operation method all key operation LCD1602 LCD English display direct digital settings or knobs continuously adjust. Frequency measurement comes with the 60MHz frequency meter function and measure the frequency of internal/external signals. Specification Stront wave frequency range: 0Hz-10MHz Square wave frequency range: 0Hz-2MHz Triangular wave frequency range: 0Hz-2MHz Other waveform frequency range: 0Hz-2MHz Output channel: The TTL level output of the main wave -shaped output and the main wave shape Output waveforms: sine waves Fang waves (adjustable ratio can be adjusted) triangular waves lift jagged waves and sawnooth waves. Output range: ≥10VP-P (empty load) Output impedance: 50Q ± 10% DC bias: ± 3V Frequency resolution: 0.01Hz (10MHz) Sinusoidal wave distortion: ≤0.8%(reference frequency 1kHz) Triangle wavelonality: ≥98%(0.01Hz-10KHz) Fang wave rising decrease time: ≤100ns Fang waves occupy the scope of the duty ratio: 1%~ 99% A amplitude:> 3VP-P Fan out coefficient:> 20TTL load T level rising to decrease time: ≤ 20ns Critical range 0-4294967295 Frequency measurement: 1Hz-60MHz Input range: 1VP-P ~ 20VP-P Scanning method: linear scanning pairing scanning Frequency setting range: starting point and termination point arbitrarily set Frequency scanning range: m1 preset frequency ~ m2 preset frequency Scanning rate: 1S-99S/Step Bob Display: LCD1602 LCD English display Storage and adjustment function: MO-M19 (m0. Hei Mo recognized the transfer) The bee tweee prompt function: can be turned on or closed through the program settings Power supply conditions: DC9V to DC36V width voltage range supply randomly comes with AC220V to DC12V power adapter Operation characteristics: All key operation the knob continuously adjusts Environmental conditions: temperature: 0 ~ 40 ℃; humidity:
