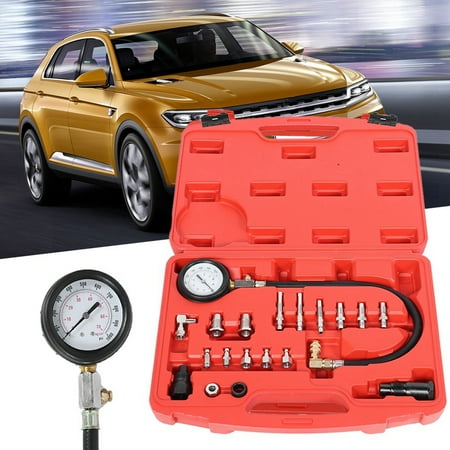

Engine Compression Gauge Engine Cylinder Pressure Tester Use Widely For Auto Repair For Auto Repair Staff

Engine Compression Gauge Engine Cylinder Pressure Tester Use Widely for Auto Repair for Auto Repair Staff Specification: Features: Specially designed to check the compression pressure of gas in the cylinder. Selection of premium grade material durable and long lasting; Various specifications complete configuration. Double-scale pressure gauge clear scale with vent valve easy to use. Quick connector is easy to insert and remove corner design easy to use. Includes multiple adapters that fit for GM Isuzu -Benz . Specification: Pressure Gauge Diameter: 75mm / 3inch Measuring Range: 0-1000psi Hoe to Use: 1. Start the engine and run to the normal working temperature turn off the engine and wait for the engine to stop running remove all the spark plugs; 2. Fully open the throttle valve and press the connector of the pressure gauge against the hole; 3. Use the motor to drive the engine to rotate at 100-150R/MIN for 3-5 seconds. At this time the pointer on the gauge will gradually rise and will stop when a certain value is reached. The indicated value at this time is the compression pressure of the cylinder; 4. Press the button to reset the pointer to ; 5. Repeat the steps above for 2~3 times to improve the measurement accuracy; 6. The cylinder pressure of general cars is >0.9MPA and
