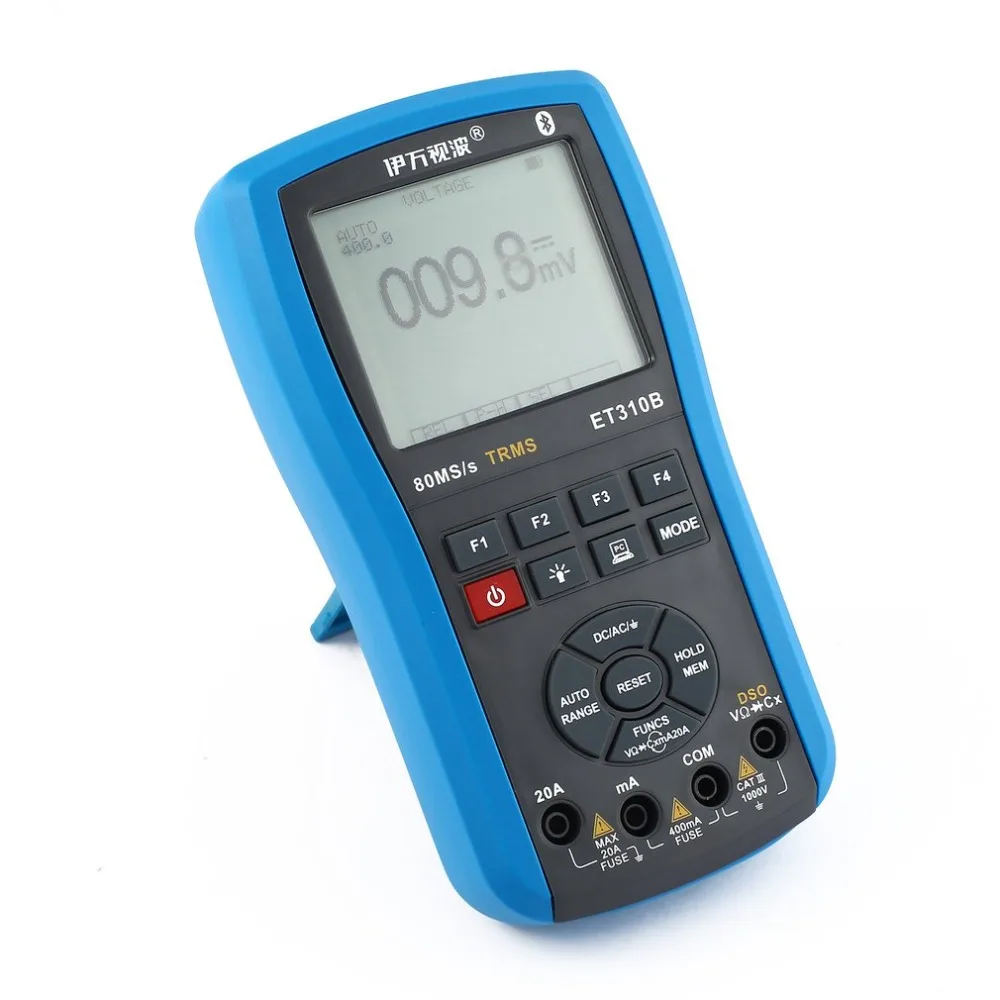

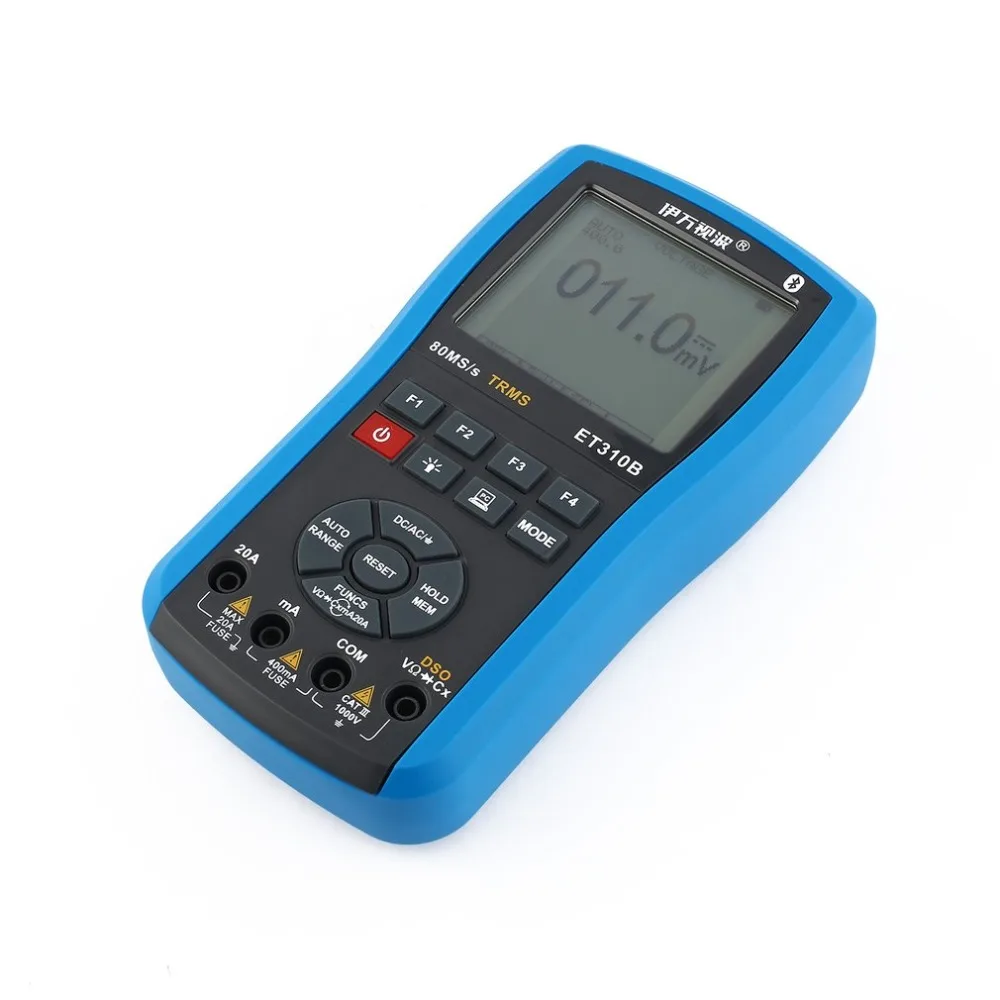

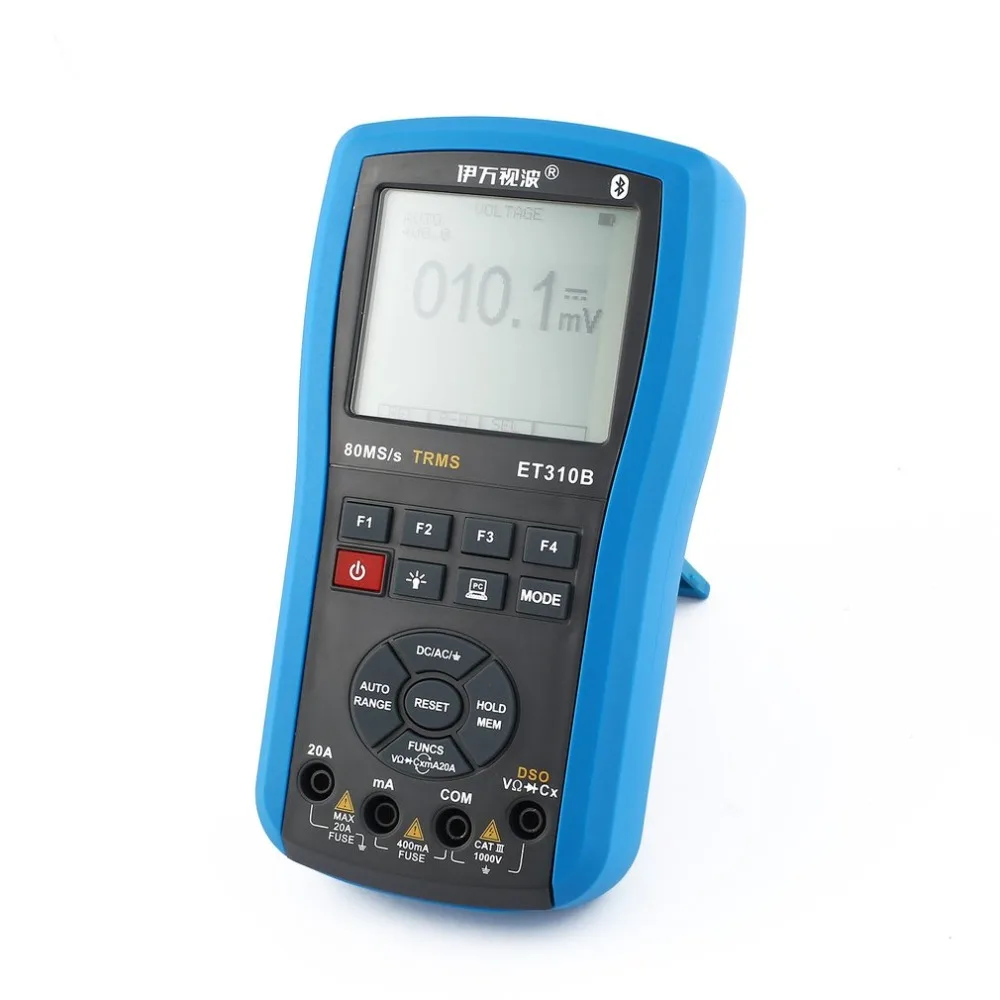

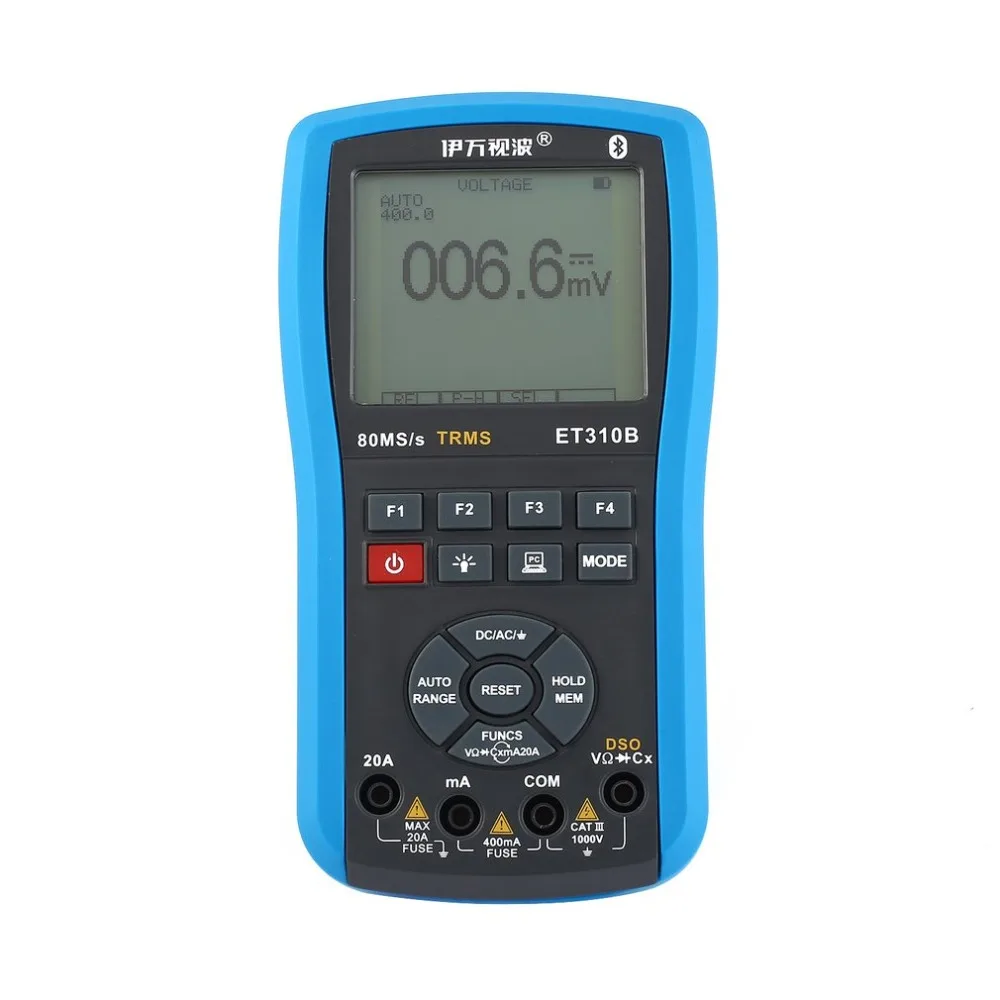

EONE ET310B Scope Meter Digital Oscilloscope Multimeter Built in Lithium Battery Pack High Storage Capacity
sku: 32933626680
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$182.96
Shipping from: China
Technical Details
| Accuracy: | ±(0.01%+0.1div) |
| AC Current: | / |
| AC current accuracy: | ±(1.5%+10) |
| AC current Range: | 40mA/400mA/4A/20A |
| AC Voltage: | / |
| AC voltage accuracy: | ±(1%+10) -- ±(3%+10) |
| AC Voltage Range: | 400mV/4V/40V/400V/750V |
| Automatic power off: | 5-60min adjustable with disable feature |
| Auto zero reference: | in DC/dB measurement |
| Back Light: | White LED,3 levels of brightness |
| bandwith: | DC 20MHz(50mV/div-10V/div) |
| Battery Life: | 12-16h |
| Brand Name: | ACEHE |
| Capacitance accuracy: | ±(1%+3) -- ±(2%+10) |
| Capacitance Range: | 51.2nF/512nF/5.12μF/51.2μF/100μF |
| Channel: | 1 |
| Color: | blue |
| Continuity: | <30Ω buzzer sounds. |
| Coupling: | DC/AC/GND |
| DC Current: | / |
| DC current accuracy: | ±(1.2%+10) |
| DC current Range: | 40mA/400mA/4A/20A |
| DC Voltage: | / |
| DC voltage Accuracy: | ±(0.75%+10)/±(1.5%+10) |
| DC voltage Range: | 400mV/4V/40V/400V/1000V |

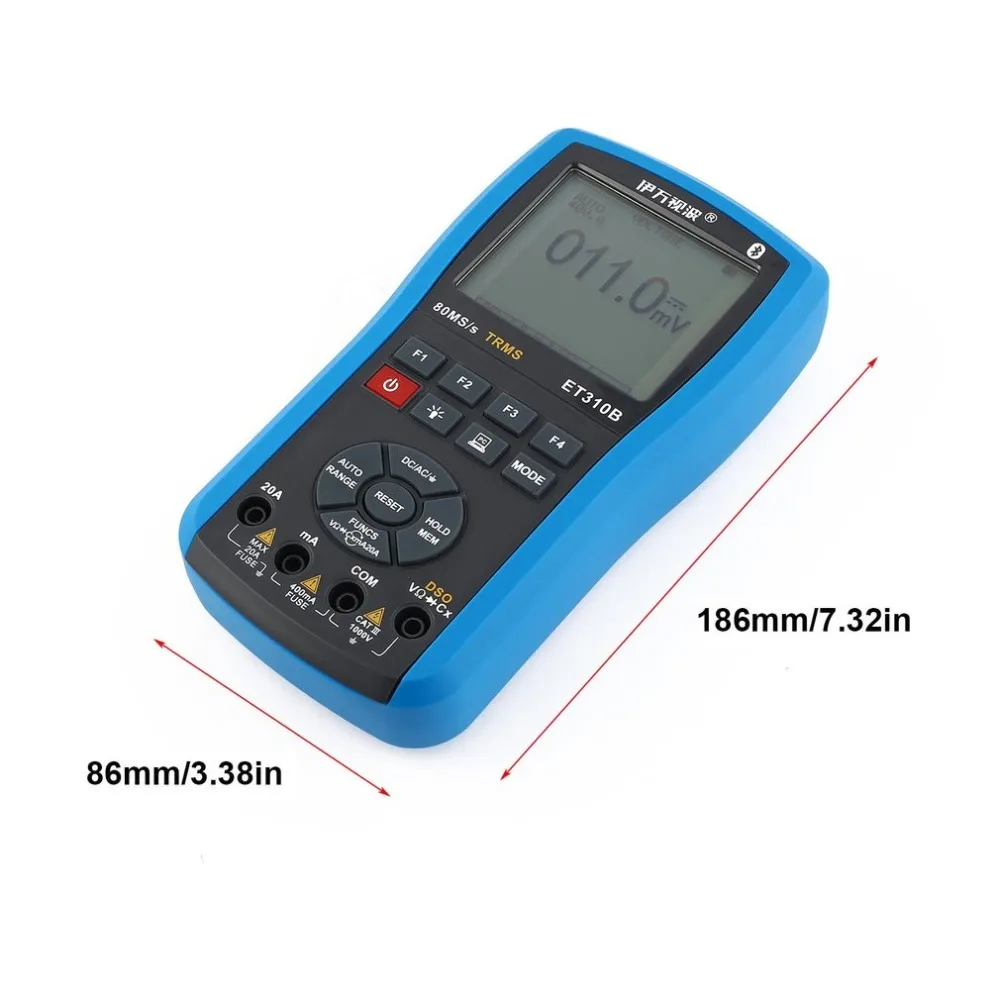

| Dimensions: | 186 x 86 x 32mm |
| Diode Measurement: | Open circuit voltage 1.5V,maximun current about 1.5mA |
| Diode test: | yes |
| Display: | 128 x 128 pixel graphic LCD |
| Display Type: | Digital Display |
| DIY Supplies: | Electrical |
| Duty Circle: | 0.1%-99.9% |
| Frequency accuracy: | ±(1%+5) |
| Frequency range: | 5.12Hz-5.12MHz |
| Input Impedance: | 10MΩ |
| Item Size: | 186 x 86 x 32mm |
| Item Weight: | 527g |
| Measuring Capacitance Range: | / |
| Measuring Inductance Range: | / |
| Measuring Resistance Range: | / |
| Memory: | 100 records |
| Model: | ET521S |
| Model Number: | ET310B |
| Nonlinearity: | ±1 |
| Operating Mode: | / |
| Operating Temperature: | / |
| Resistance Accuracy: | ±(1%+5) |
| Resistance Range: | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ |
| Sampling Rate: | 80M per second |
| Scanning mode: | Auoto/normal/single |
| trigger level: | ±12div |
| Trigger position adjustment: | ±6div |
| Trigger slope: | Rising along/down along |
| Vertical amplitude accuracy: | ±(5%+0.1div) |
| Vertical sensitivity range: | 50mV/div-200V/div |
| Voltage resolution: | 8 bits |
| When range: | 31.25ns/div-20s/div |
