Digital DDS Dual-channel Signal Generator Arbitrary Waveform Function 200MSa/s 6MHz 12 Bits Frequency Meter
sku: 4000235998395
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$64.81
Shipping from: China
Technical Details
| Amplitude Flatness: | (+/-)5%(<10MHz); (+/-)10%(>10MHz) |
| Amplitude RangePeak to Peak: | 10mVpp~20Vpp |
| Amplitude resolution: | 1mVp-p (-20dB Attenuation) |
| Amplitude Stability: | (+/-)0.5%/5 Hours |
| Arbitrary Waveform: | 0Hz~6MHz(Except the 2MHz Model) |
| Bias Adjustment Range: | (+/-)10V |
| Bias Resolution: | 0.01V |
| Brand: | FellTech |
| Brand Name: | ACEHE |
| Communication rate: | 9600bps |
| Counting: | Manually |
| Counting range: | 0~4294967295 |
| Distortion: | <0.8%(20Hz~20KHz, 0dBm) |
| DIY Supplies: | Electrical |
| Duty cycle adjustment range: | 0.1%~99.9% |
| Environment temperature: | 0~40°C |
| Fan-out: | >20 TTL Load |
| Frequency Error: | (+/-)5*10^(-6) |
| Frequency Measuring Range: | GATE-TIME=1S 1Hz - 60MHz |
| Frequency Scan Range: | It is determined by the sweep parameter settings |
| Frequency Setting Range: | Start Point and End Point can be set freely |
| Frequency stability: | (+/-)1*10^(-6)/3 Hours |
| Harmonic Arrived System: | ≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz) |
| High Level: | 1V~10V |
| Input voltage range: | 0.7Vpp~20Vpp |
| Interface mode: | Using USB to Serial Interface |
| Level Amplitude: | >3Vpp |
| Level Rise/Down Time: | ≤20ns |
| Lifting Along Time: | ≤20ns |
| Linearity: | ≥98% (0.01Hz~10KHz) |
| Location: | M0~M19 |
| Low level: | <0.3V |
| Model: | FY2300 |
| Model Number: | FY2300 |
| Output Impedance: | 50Ω(+/-10%) (Typical) |
| Overshoot: | ≤7.5% |
| Package Size: | 140x90x50mm/5.46x3.51x1.95in |
| Periodic Measurement: | 20ns Resolution, the Max. Measurable 40s |
| Phase Adjustment Range: | 0~359° |
| Phase Resolution: | 1° |
| Plug: | US/EU(optional) |
| Protocol: | Using the Command Line, the Agreement Public |
| quantity: | 20 |
| Sampling Rate: | 200MSa/s |
| Sawtooth wave: | 0Hz~6MHz(Except the 2MHz Model) |
| Scan mode: | Linear Sweep, Log Sweep |
| Scan Object: | Frequency, Amplitude, Bias and Duty Cycle |
| Scan time: | 0.01s-999.99S/Step |
| Sine wave: | 0Hz~6MHz |

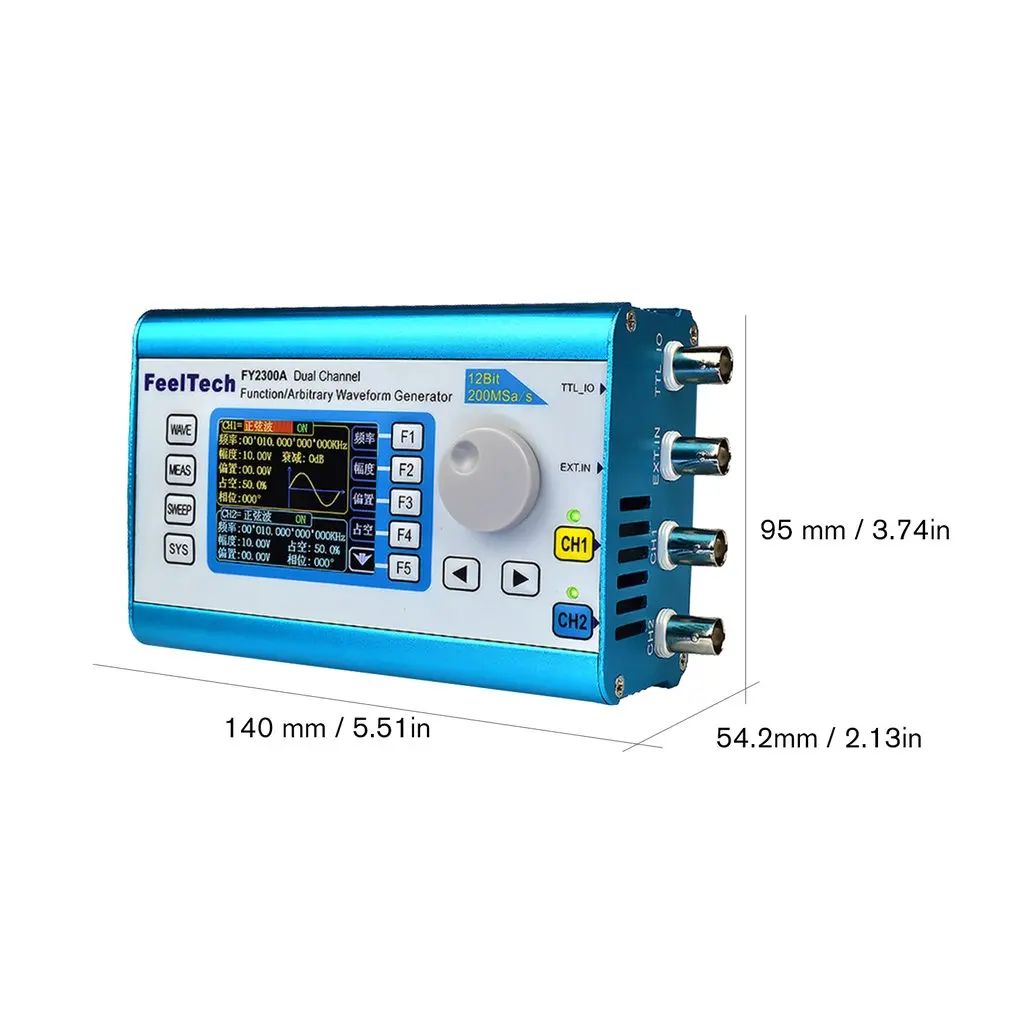

| Size: | 140 x 95 x 54.2mm / 5.51 x 3.74 x 2.13in |
| Square Wave: | 0Hz~6MHz(Except the 2MHz Model) |
| The Min. Frequency Resolution: | 1μHz(0.000001Hz) |
| Triangle wave: | 0Hz~6MHz(Except the 2MHz Model) |
| TTL digital signal wave: | 0Hz~6MHz(Except the 2MHz Model) |
| Vertical resolution: | 12 Bits |
| Voltage Range: | DC 5V (+/-0.5V) |
| Waveform length: | 2048Points |
Price history chart & currency exchange rate
Customers also viewed
$10.44
Автомобильный держатель для планшета, подголовник, крепление для планшета, подставка для подголовника, подставка, совместимая с устройствами для мобильных телефонов и планшетов чёрный
joom.ru
$11.39
Retro Liquid Swirl Abstract Pattern Square in Tangerine Orange and Peach Apron men All For Kitchen And Home Apron
aliexpress.ru
$76.30
Small five port electrolytic cell, 5 / 1020 / 30 / 50ml. Equipped with F pipe, salt bridge and liquid seal.
aliexpress.ru
$11.01
Scottish Terrier Dog Retro T-Shirt Blouse lady clothes vintage clothes oversized Woman fashion
aliexpress.ru
$88.15
Women's Boots Low Heel Spike Solid Color Winter Style Genuine leather Material Trendy Fashionable Daily Wear
aliexpress.com
$28.32
Nopersonality Rainbow Color Gradient Design Flat Boys Slippers Specialist Nurse Pattern Unisex Beach Slides Comfort Water Shoes
aliexpress.com
$1.04
100pieces 100 NF X7R error 10% 50V 0603 104 SMD thick film chip multilayer ceramic capacitor
aliexpress.com
$27.82
Casual Women Patchwork Button Tank Tops Summer Turn Down Collar Cotton Sleeveless Vests Female Streetwear White Slim Tops 2023
aliexpress.com
$39.80
2023 for OPPO A55 5G A57 4G 5G A77 2022 K10 Reno 8 Pro Plus NFC Smartwatch Men Women Bluetooth Call Waterproof Wireless Charging
aliexpress.com
$25.10
Multifunction Steering Wheel Control Switch Audio Control Button 8425060180 For Toyota Land Cruiser Prado
aliexpress.com
$59.26
KJJEAXCMY fine jewelry 925 sterling silver natural Rose Quartz earrings ring pendant bracelet luxury ladies suit support test
aliexpress.com
$60.00
Mikiwi Wholesale 8mm/10mm Short Mink Lashes Natural 5D Mink Eyelashes Wispy Fluffy Mink Lashes Natural looking
aliexpress.com
$92.40
250/315 dual voltage welding machine 220V household small all-copper DC welding machine portable IGBT inverter welding machine
aliexpress.com
$18.35
Fashiondevelopment Board, ADF4351 35M-4400Mhz RF Signal Source / Phase Locked Loop Frequency Synthesizer For LAN Amplifier
aliexpress.com
$9.00
Christmas Elk Phone Case For iPhone 12 11 Pro Max 13 XS XR X 6S 7 8 Plus Cartoon Animals Owl Bear Soft Silicone Matte Back Cover
aliexpress.com
$350.00
CR BUY 2 GET 1 FREE ** NEW ** MatchX M2 Pro Multi-пожалуйста, посмотрите описание, если вы хотите его дешево.
aliexpress.ru
$27.25
Освежитель воздуха для автомобиля, алюминиевый сплав, USB, отрицательные ионы, дезодорирование, перезаряжаемый, для автомобиля, дома, офиса, а...
aliexpress.com
$97.92
Двигатель привода центрального замка двери для BMW 5 7 Series F01 F02 F04 F10 F11 51217185689 51217185692
aliexpress.ru
$13.99
Подростков Для женщин мужские толстовки с капюшоном «Демон» костюм убийцы Tanjirou Zenitsu Nezuko Inosuke Harajuku пуловер свитер с капюшоном
aliexpress.ru
$2.98
1 шт. адаптер для светодиодной ленты RGB 3528 5050 и 1 шт. мини-пульт дистанционного управления диммер для одноцветной светодиодной ленты/светодио...
aliexpress.ru
$25.52
Спортивные брюки, женские штаны для йоги с карманами, на молнии, с завышенной талией, дышащие свободные повседневные брюки для спортзала
aliexpress.ru
$4.77

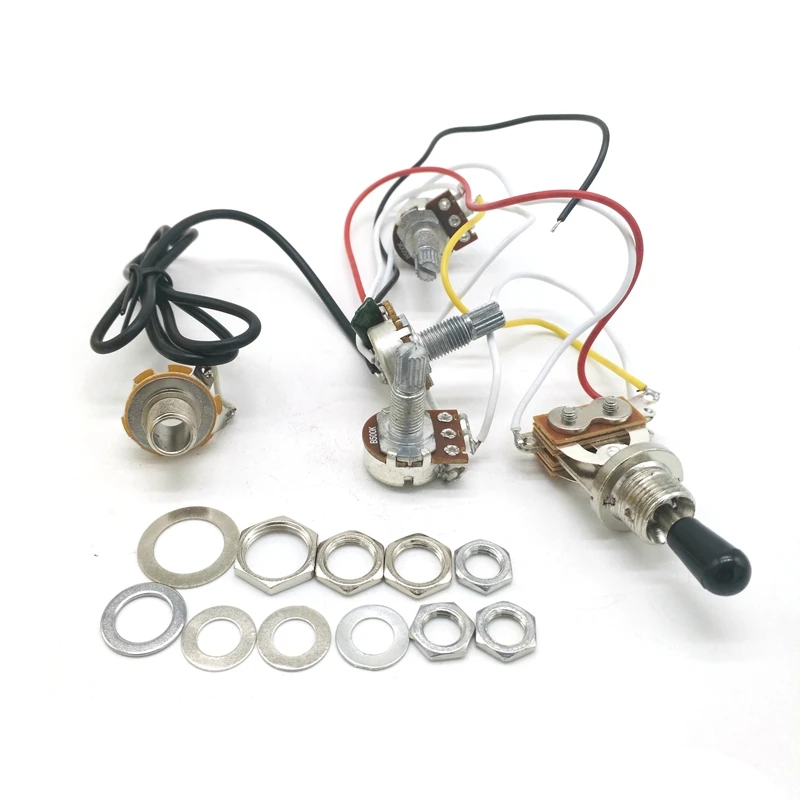

Прямая поставка-запчасти для электрогитары Открытый Жгут проводов 1V2T1J Pots Tone 3 Way тумблер переключатель для гитары Пикапы
