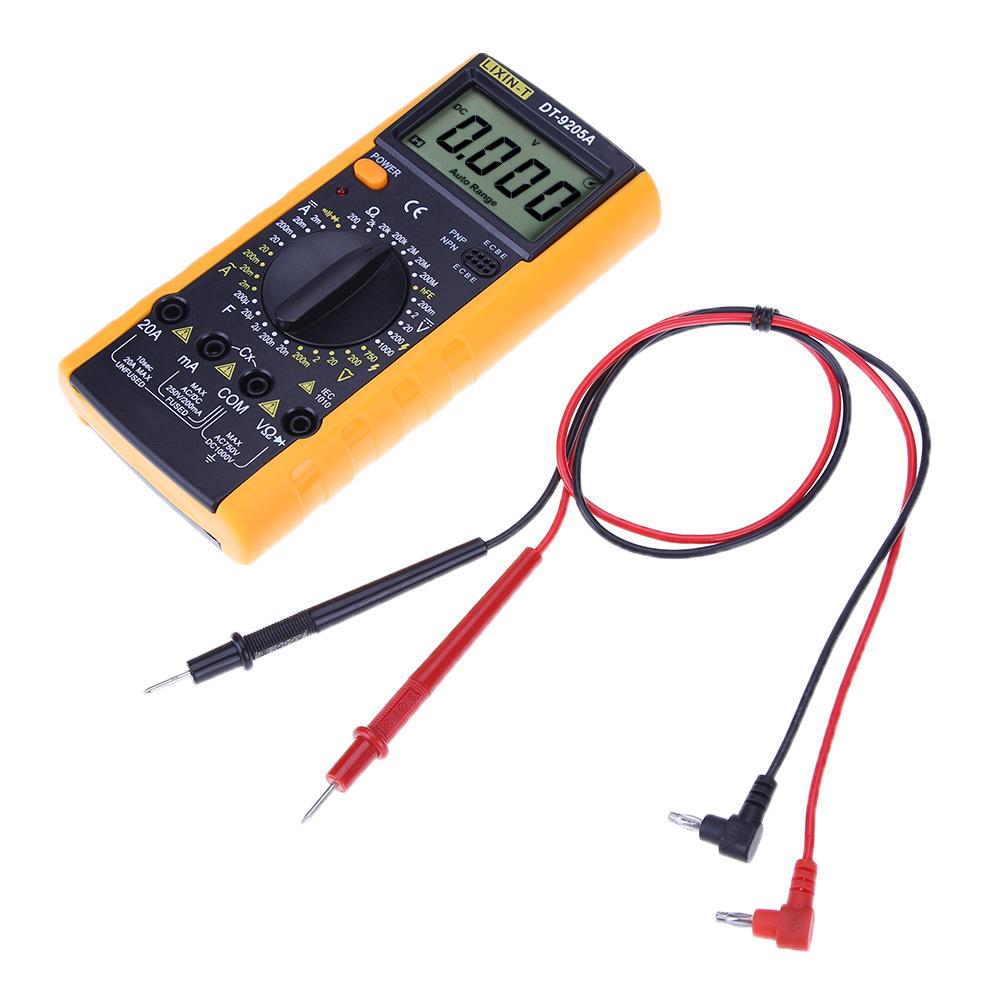

DT9205 Protection Digital Multimeter Ammeter Current Capacitance Tester, 501 Original

DT9205 Protection Digital Multimeter Ammeter Current Capacitance TesterSpecifications:Range:ACV AC voltage: 200mV, 2V, 20V, 200V, 750VDCV DC voltage: 200mV, 2V, 20V, 200V, 1000VACA AC current: 2mA, 20mA, 200mA, 20ADCA DC current:20uA, 200uA, 2mA, 20mA, 200mA, 20AResistance:200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ, 200MΩ, 2000MΩCapacitors: 2nF, 20nF, 200nF, 2uF, 20uF, 200uFPower supply: 9V, 6F22Maximum display:1999Features: Test of crystal pole tube Diode Testing Turn-on buzzer Not Automatic shutdownCMOS integrated circuits, dual integration principle A / D conversion, automatic zero calibration, automatic polarity selection, overrange instructions.LCD screen with high contrast 70 x 40mm/2.76\\\" x 1.57\\\"large screen, the word up to 25mm/0.98\\\". Depending on the viewing position, the display screen has a viewing angle of about 70 ° to achieve the best viewing effect.Attentions:The multimeter is the precision electronic instruments, do not arbitrarily change the internal circuit to avoid damage.1.Do not receive more than 1000V DC or RMS 750V AC above the voltage up.2.Do not accidentally take the range to avoid damage to the external circuit.3.Using it after the instrument cover well 4.Turning off the power before you replace the battery and fuse to be in the pen. Unscrew the rear cover screw, gently lift the back cover slightly and push the cover forward, so that the cover on the back cover is removed from the instrument case. Replace the battery and fuse according to the specifications on the back cover. Package Content:1 X DT9205 Digital Multimeter 2 X Table Line1 X Chinese Manual
