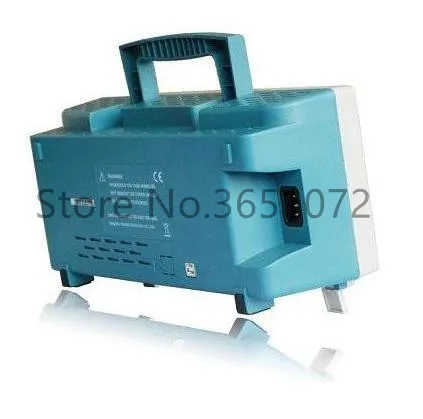

DSO5202BMV 2channels 200MHz 1GSa/s Digital Storage Oscilloscope Built-in Video Help
Technical Details
| A/D converter: | 8-bit resolution, each channel sampled simultaneously |
| Band Width: | 100-349MHz |
| Brand Name: | jinhanic |
| Delay Time Accuracy: | ±50ppm in any ≥1ms time intervals |
| Digital Channels: | 2 |
| Display resolution: | 800*480 Pixels |
| Display Size: | 7 Inches & Above |
| DIY Supplies: | Electrical |
| Memory Depth: | Single-channel: Maximum 2M; Dual-channel:Maximum 1M (4K,16K,40K option |
| Model Number: | DSO5202BMV |
| Real Time Sampling Rate: | 1GSa/S |
| SEC/DIV Range: | 2ns/div~80s/div |
| VOLTS/DIV Range: | 2mV/div - 10V/div at input BNC |
