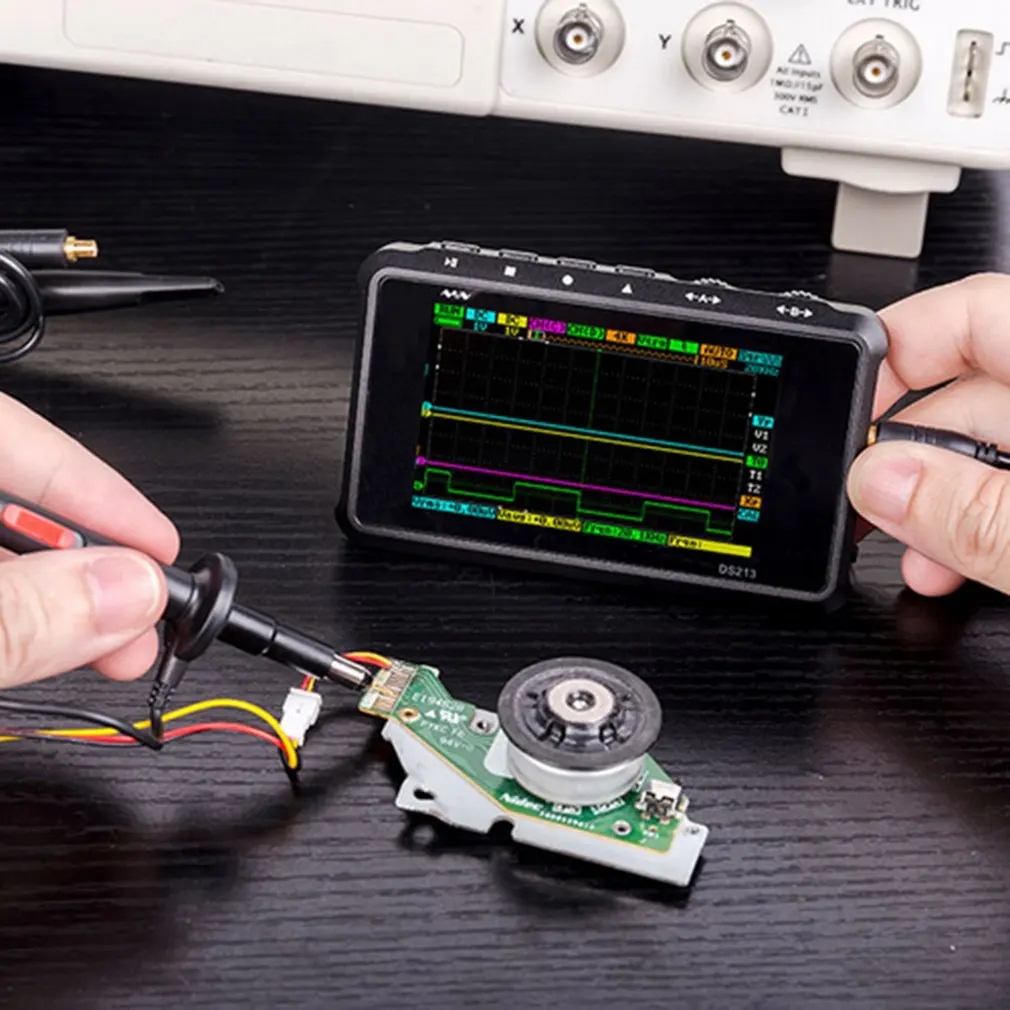

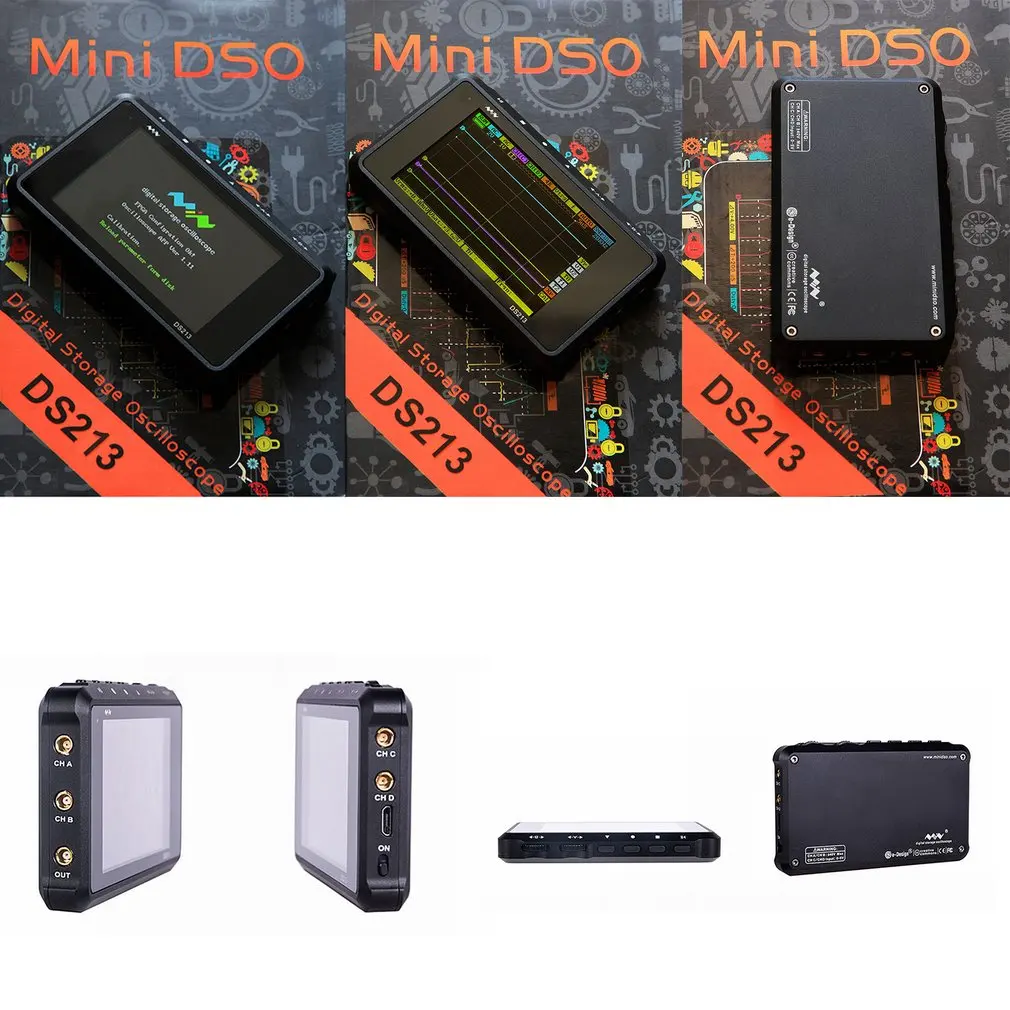

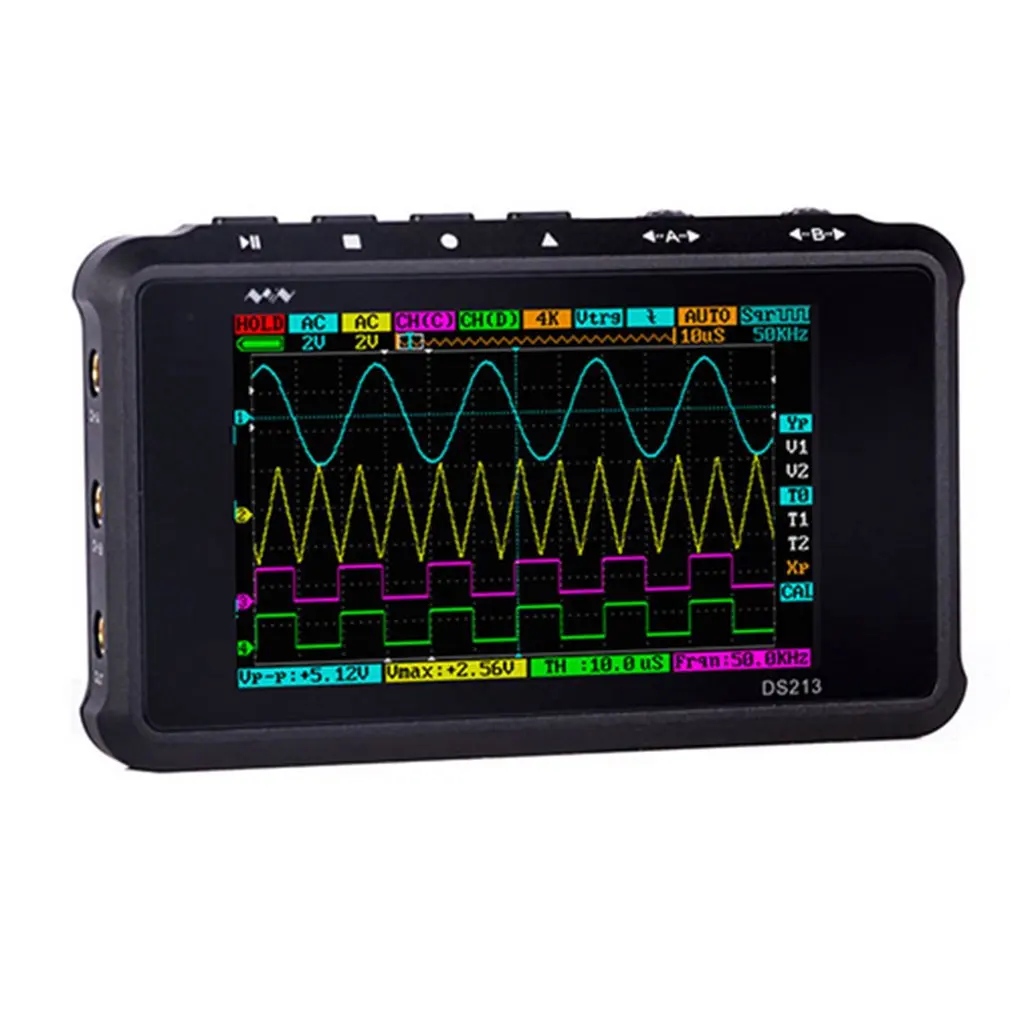

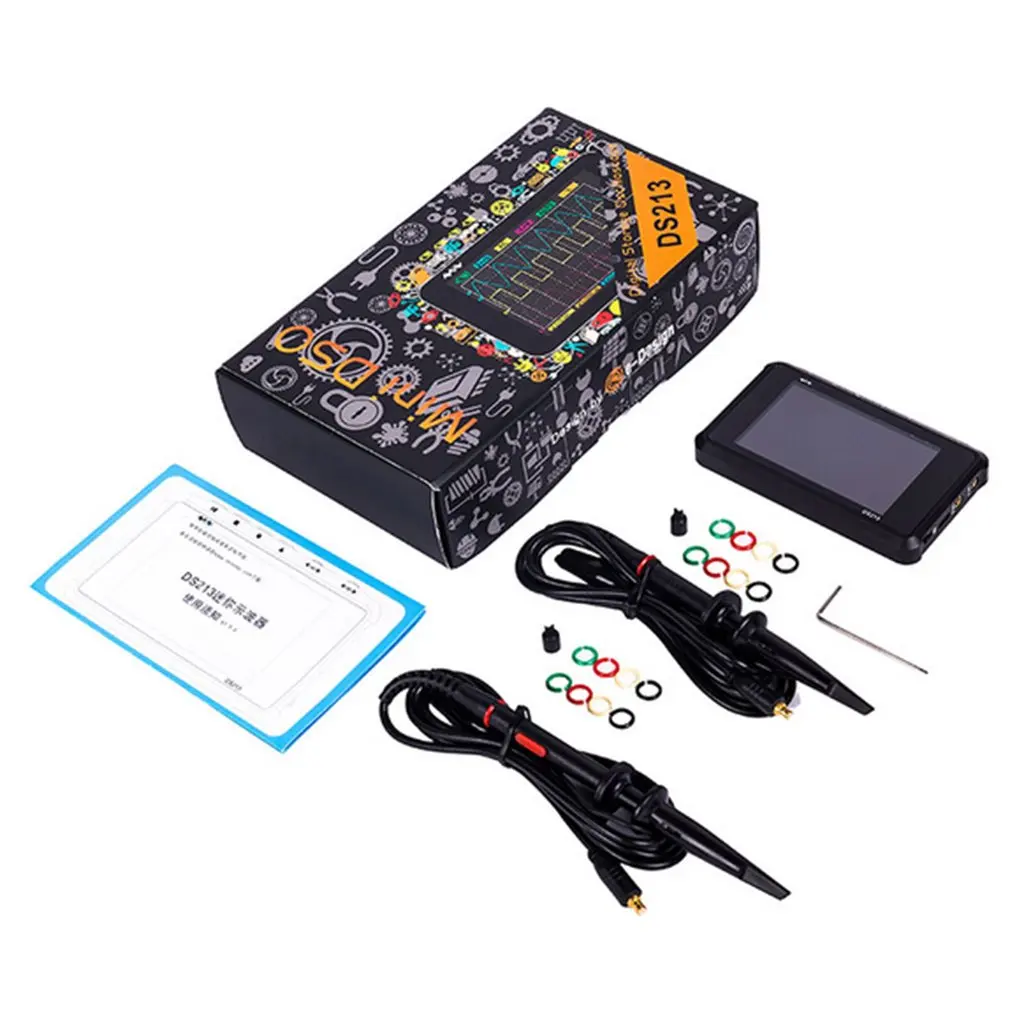

DS213 Portable Digital Storage Oscilloscope 4 Channel 15MHz Bandwidth Mini DSO Scopemeter Scope Meter













sku: 4000341010825
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$171.19
Shipping from: China
Technical Details
| ADC: | HWD9288-100 |
| Analog channels: | 2([CH_A] [CH_B]) |
| Auto Measurement Types: | Please look at the Detail Page |
| Band Width: | 15MHz |
| Battery: | 1000mAh |
| Brand Name: | ACEHE |
| Certificate: | CE,FCC |
| Coupling: | DC,AC |
| CPU: | ARM Cortex M3 |
| Cursor measurement: | Time value,Amplitude value |
| Digital Channels: | 4 |
| Display Modes: | 4 wave lines |
| Display resolution: | / |
| Display Size: | 2.9 Inches & Under |
| DIY Supplies: | Electrical |
| FIFO & Control: | FPGA |
| File types: | BMP,BUF,CSV |
| line: | [CH_D],[CH_A]+[CH_B],[CH_A]-[CH_B],[CH_C]&[CH_D],[CH_C],[CH_D],HIDE |
| Max input Voltage: | ±40Vpp (using X1 probe),±400Vpp (using X10 probe) |
| Model: | DS213 |
| Model Number: | DS213 Digital Oscilloscope |
| Operation Channel: | Pleasre look at the Detail Page |
| Real Time Sampling Rate: | 100MSa/s |
| Sample memory depth: | 4 channels,4*4K |
| Sampling mode: | Real-time Sampling |
| Sampling Rate: | 100M Sa/s |
| Signal source: | Square Wave |
| Sine/Triangle/Sawtooth Wave: | 10Hz to 20MHz, in total 11 shifts and 3 Vpp Signal Sources |

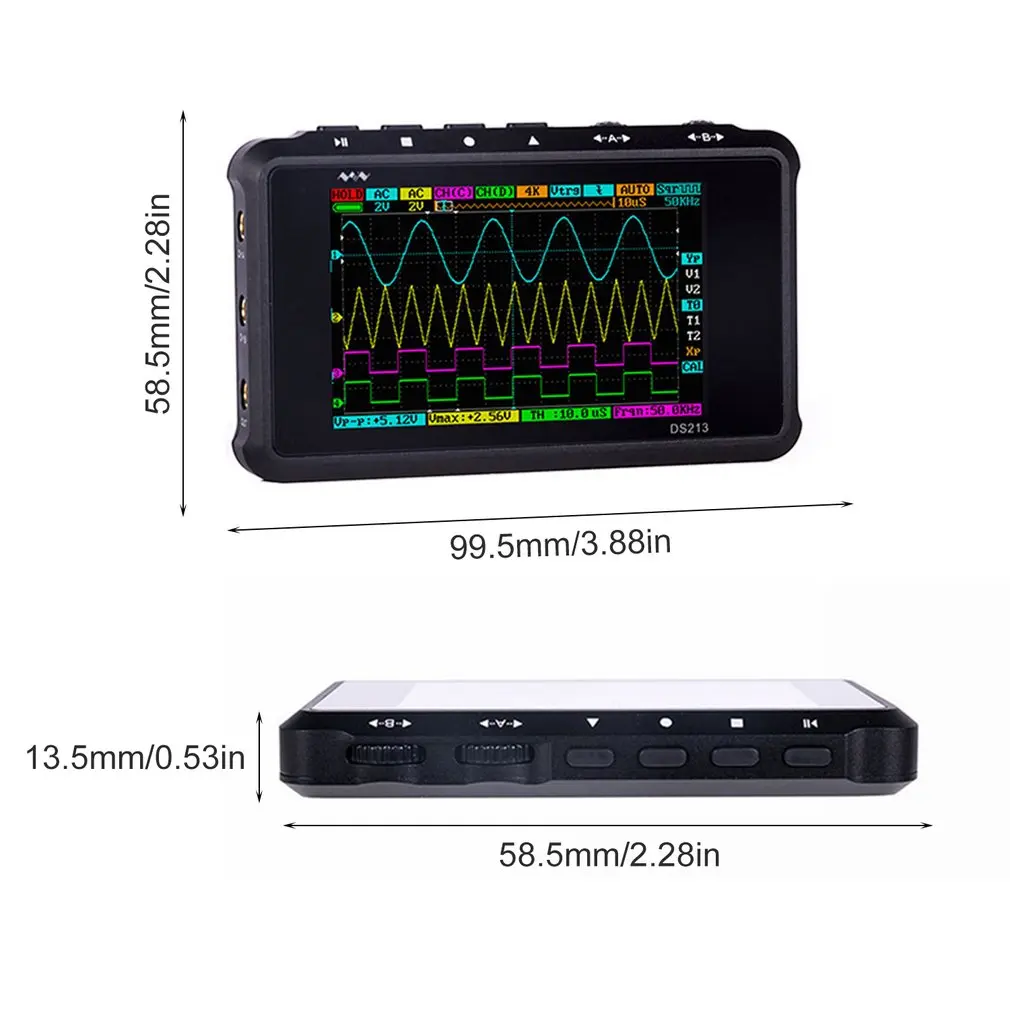

| Size: | 99.5x58.5x13.5mm/3.88x2.28x0.53in |
| Storage: | built in 8M USB disk |
| Trigger Mode: | Auto,Normal,Single,Slow |

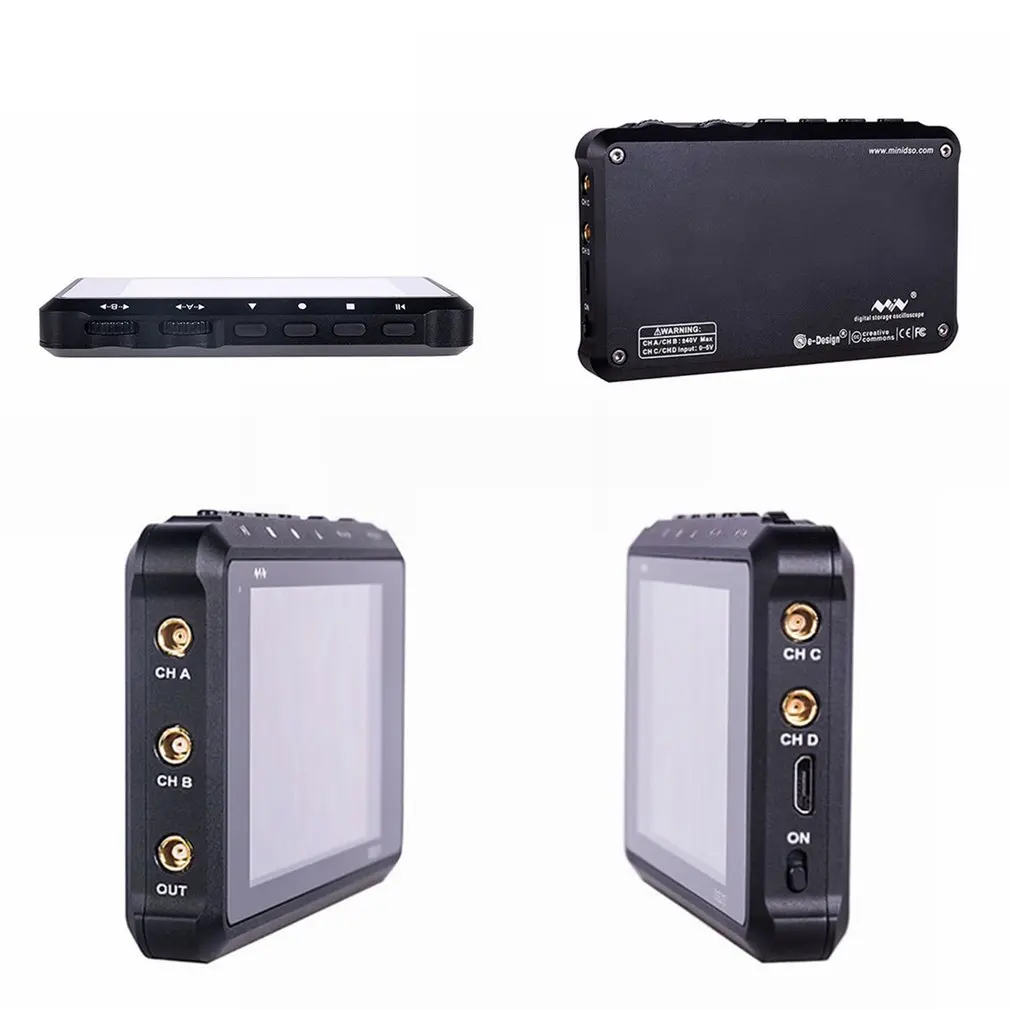

| Trigger Source: | [CH_A] [CH_B] [CH_C] [CH_D] |
| Trigger types: | Please look at the Detail Page |
| Vertical resolution: | 8 bits |
| Vertical Sensitivity A: | 10mV-10V/div (1-2-5 STEP) (using X1 probe) |
| Vertical Sensitivity B: | 100mV-100V/div (1-2-5 STEP) (using X10 probe) |
