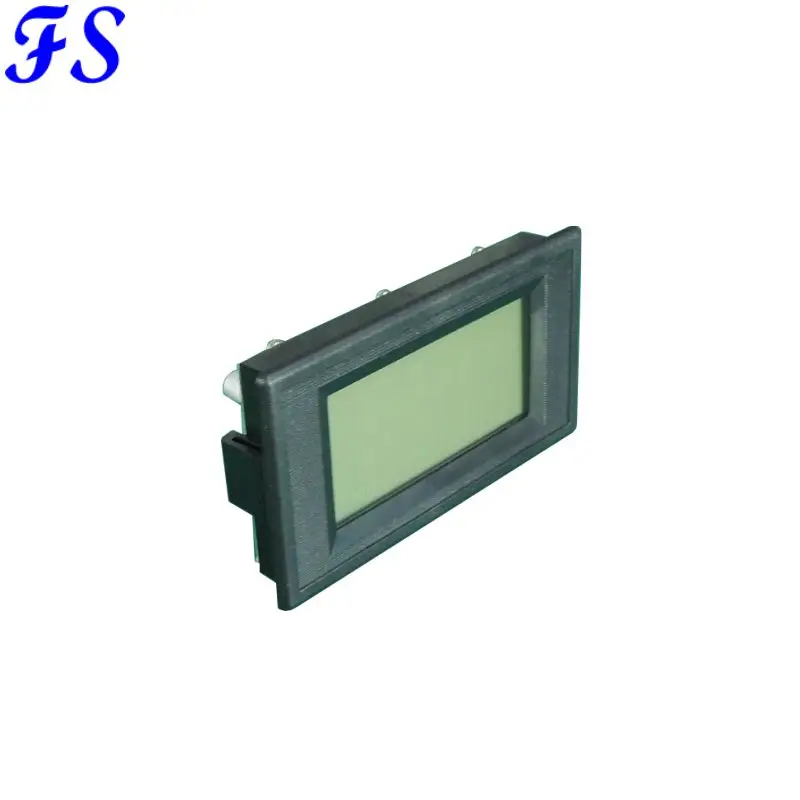

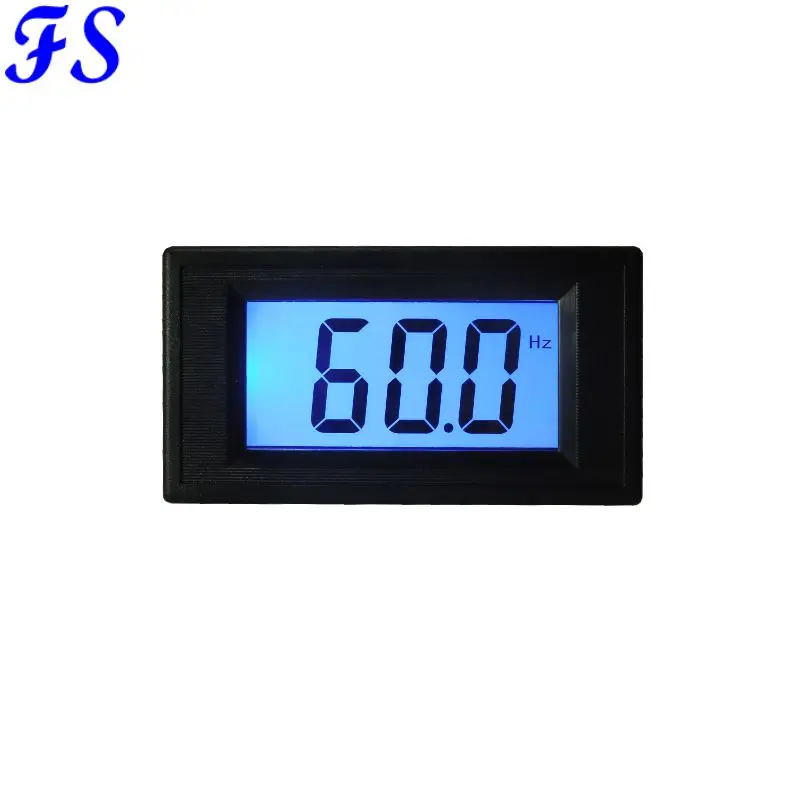

DIY High Accuracy Sensitivity 45-65 Hz Frequency Meter Counter Module Hz Tester Measurement Module LCD Display AC 45.0-65.0Hz

DIY High Accuracy Sensitivity 45-65 Hz Frequency Meter Counter Module Hz Tester Measurement Module LCD Display AC 45.0-65.0Hz
thumb
thumb
thumb
thumb
sku: 33025855953
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$6.50
Shipping from: China
   Technical Details
Accuracy Class: 0.5% (± 2 digits)
Brand Name: YB
Dimensions: 79*43*25 mm
Display Mode: LCD with blue backlight
Display Type: Digital Only
DIY Supplies: Electrical
Font: 19*9mm
Frequency display resolution: 0.1 Hz
LCD viewing area: 51*24.5mm
Measurement rate: ≥ 2 times/S
Measuring Range: 45.0-65.0Hz
Model Number: YB5135FD
Mounting hole: 76*39.5mm
Operating Temperature: -10~ +50 degrees
Power Consumption: Power consumption
Voltage amplitude of test frequency: AC80-500V
Working humidity: 10 ~ 80% (no condensation)
Working Pressure: 80~106kPa
