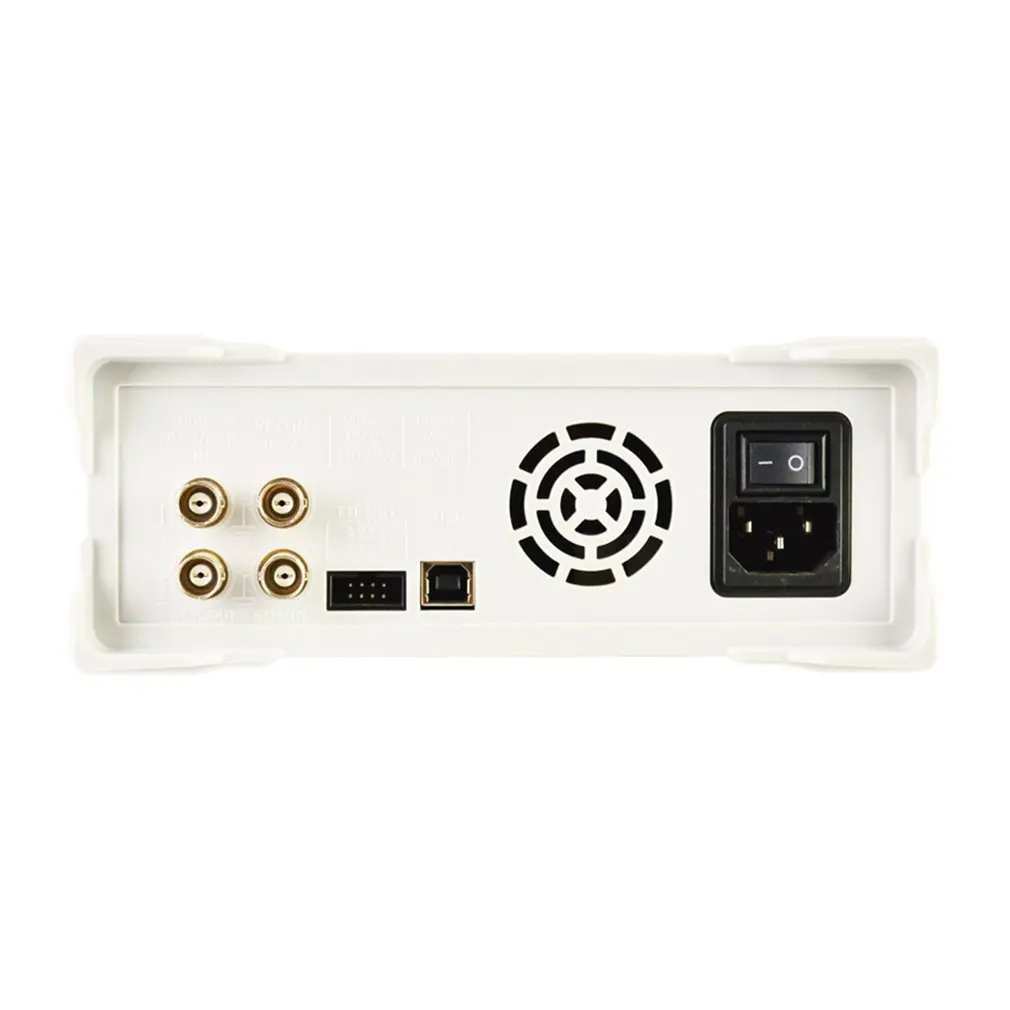

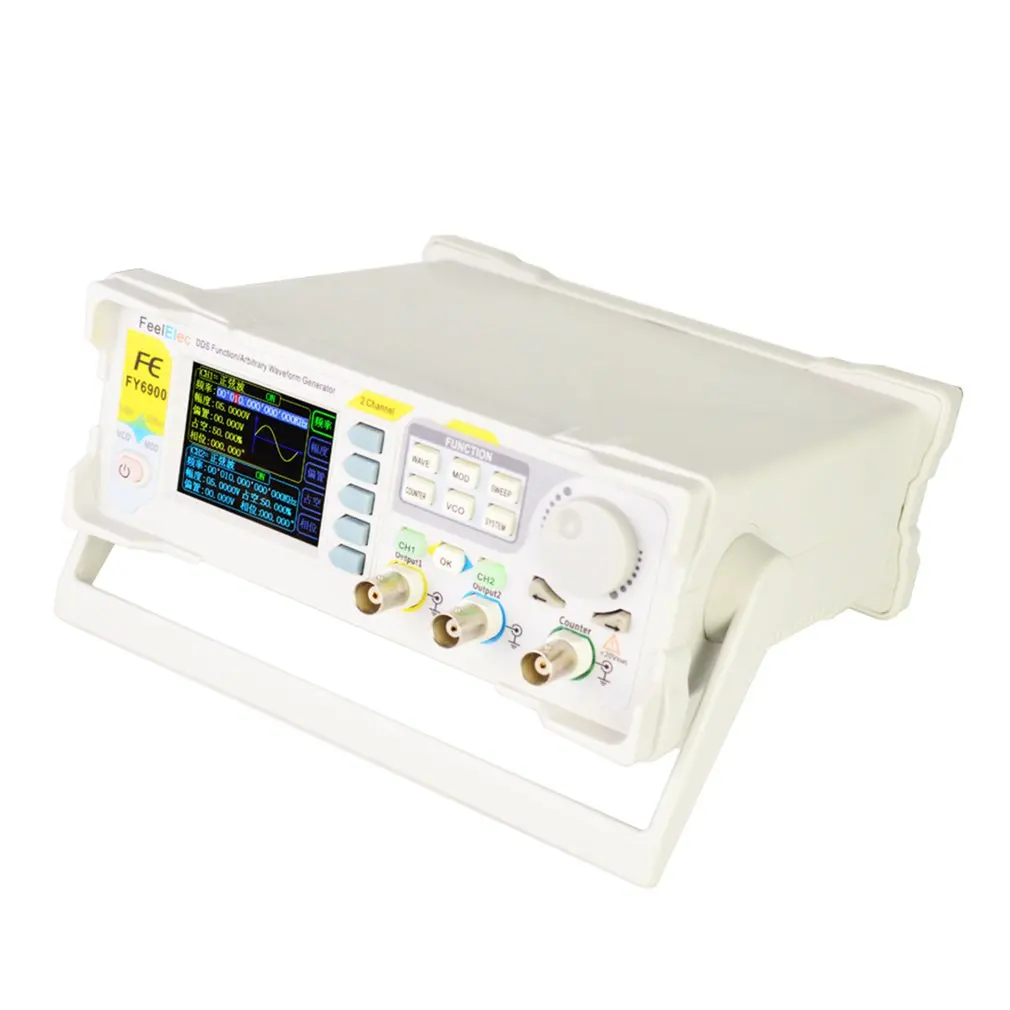

DDS Dual-channel Digital Function Arbitrary Waveform Signal Generator 250MSa/s 60MHz 14bits Frequency Meter
sku: 4000178201259
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$84.08
Shipping from: China
Technical Details
| Amplitude Flatness: | (+/-)5%(<10MHz); (+/-)10%(>10MHz) |
| Amplitude resolution: | 1mV |
| Amplitude Stability: | (+/-)0.5%/5 Hours |
| Arbitrary wave frequency range: | 0~10MHz |
| Arbitrary Wave Non-volatile Storage: | 64 user-defined arbitrary waveforms can be stored |
| Bias Resolution: | 0.01V |
| Brand: | FellTech |
| Brand Name: | ACEHE |
| Communication rate: | 115200bps |
| Counting: | Manually |
| Counting range: | 0~4294967295 |
| Display Type: | 2.4" TFT Color Display |
| Distortion: | <0.5%(20Hz~20KHz, 0dBm) |
| DIY Supplies: | Electrical |
| Duty cycle adjustment range: | 0.1%~99.9% |
| Environment temperature: | 0~40°C |
| Fan-out: | >8 TTL Load |
| Frequency>20MHz: | ±2.5V |
| Frequency Error: | (+/-)20ppm |

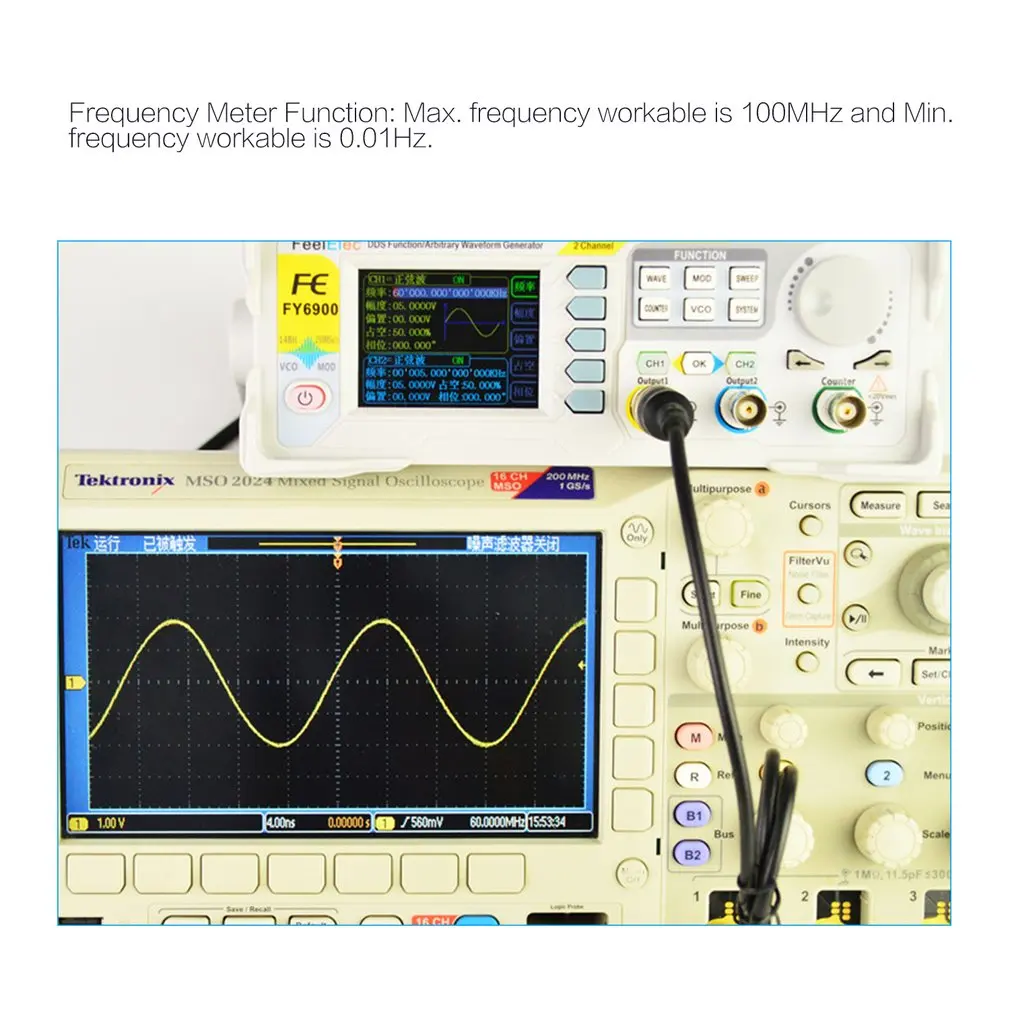

| Frequency Measuring Range: | GATE-TIME=1S 1Hz - 60MHz |
| Frequency Scan Range: | It is determined by the sweep parameter settings |
| Frequency Setting Range: | Start Point and End Point can be set freely |
| Frequency stability: | (+/-)1ppm/3 Hours |
| Harmonic Arrived System: | ≥50dBc(<1MHz); ≥45dBc(1MHz~20MHz) |
| High Level: | 1V~12V |
| Input voltage range: | 2Vpp~20Vpp |
| Interface mode: | Using USB to Serial Interface |
| Level Amplitude: | >3Vpp |
| Level Rise/Down Time: | ≤18ns |
| Lifting Along Time: | ≤7ns(VPP<5V) |
| Linearity: | ≥98% (0.01Hz~10KHz) |
| Location: | M0~M20 |
| Low level: | <0.3V |
| MHz10MHzFrequency>20MHz: | 1mVpp- 5Vpp |
| Model: | FY6900 |
| Output Impedance: | 50Ω(+/-10%) (Typical) |
| Overshoot: | ≤5% |
| Periodic Measurement: | 20ns Resolution, the Max. Measurable 40s |
| Phase Adjustment Range: | 0~359.99° |
| Phase Resolution: | 0.01° |
| Plug: | US/EU(optional) |
| Protocol: | Using the Command Line, the Agreement Public |
| Pulse wave minimum adjustment width: | 20ns |
| Pulse Width Adjusting Range: | 10nS~1S |
| quantity: | 20 |
| Sampling Rate: | 250MSa/s |
| Sawtooth wave: | 0Hz~10MHz |
| Scan mode: | Linear Sweep, Log Sweep |
| Scan Object: | Frequency, Amplitude, Bias and Duty Cycle |
| Scan time: | 0.01s-999.99S/Step |
| Sine wave: | 0Hz~60MHz |

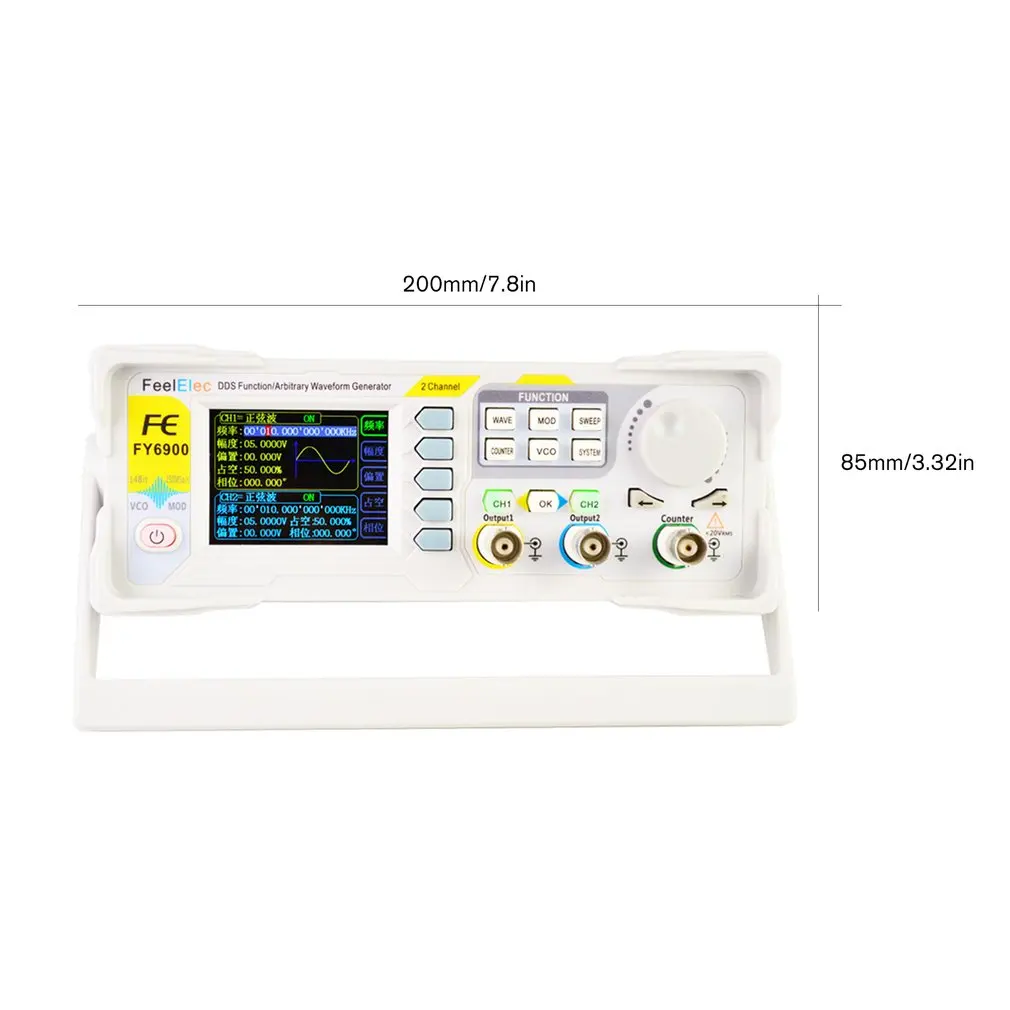

| Size: | 200x190x85mm/7.8x7.41x3.32in |
| Square Wave: | 0Hz~25MHz |
| The Min. Frequency Resolution: | 1μHz(0.000001Hz) |
| Triangle wave: | 0Hz~10MHz |
| TTL/CMOS digital wave range: | 0~20MHz |
| Vertical resolution: | 14 Bits |
| Voltage Range: | AC 100~240V |
| Waveform length: | 8192Points(4K Points)x14Bits |
Price history chart & currency exchange rate
Customers also viewed
$22.35
Автоматическая Плойка для волос, профессиональная вращающаяся плойка 28 мм, электрическая керамическая плойка с отрицательными ионами, уход за волосами для женщин
aliexpress.ru
$19.44
Новейшая супер яркая белая лазерная фара Tpye-c USB аккумуляторная налобный фонарь с зумом Мощный налобный фонарь Мощная уличная рабочая лампа
aliexpress.ru
$59.34
Stairs for High Beds Couch, 3 Steps Pet Stairs for Small Dog Cat, Non-Slip Dog Ramp For Bed Sofa, High-Density Foam Washable Cov
aliexpress.ru
$41.56
Ghost Slayer School Bag Printing Secondary School Student Backpack Tanjiro Nezuko Backpack Men and Women Campus Cartoon
aliexpress.ru
$4.68
6pcs Shower Hair Catchers Bathtub Stopper Drain Covers for Bathroom Bathtub Kitchen
aliexpress.ru
$3.99
Забавный язычок лягушки с аутистическим креативным рисунком, детские игрушки, маска ящерицы, игры для родителей и детей, пазл, игры вечерние...
aliexpress.ru
$190.57
180W 8-arm Led Dj Light rotating Magic Ball Voice-activated Laser Light Bar DJ Disco RGBW Beam Stage light Strobe Light
aliexpress.com
$57.60
Designer Strange Heel Pointed Toe Women Modern Single Shoes All Match Casual High Heel Belt Buckle Pumps Lady Mary Janes 43
joom.com
$57.83
Коротка пухова куртка для жіночої зими Нова маленька пухова куртка Товста куртка-хліб 2XL
joom.com
$151.10
Автомагнітола Android Carplay для Nissan Qashqai J10 2007-2013 Мультимедійний плеєр Головний пристрій Стерео GPS-навігація BT WIFI 4+64 ГБ 4+64GB,A
joom.com
$24.13
NEW Waterweed Turtle Ocean Solid Wood Resin Lamp Decoration for Home Creative Artwork for Decor Fine Gift
aliexpress.com
$48.49
Smart home 5-piece home monitoring system bundled with Wi-Fi-enabled indoor battery-powered, self-monitoring
aliexpress.com
$12.47
Motorcycle 2024 Heat Shield Exhaust Protective Cover For KTM EXC 250 300 TPI XC XC-W For Husqvarna TE250 TE300 2T 2020 2022 2023
aliexpress.com
$10.17
Angles Live in My Town Socks with print cartoon sports and leisure Stockings Socks For Girls Men's
aliexpress.com
$6.91
Women's Pants 2025 New Casual Elastic High Waisted Spliced Pocket Straight Leg Pants Sweatpants Fashionable Comfortable Pants
aliexpress.com
$10.34
Anime Hello Kitty Hibiscus Black Plush Toy Keychain Leopard Print Skirt KT Long Legs Baddie Outfit Kitty cat Stuffed doll charm
aliexpress.com
$24.27
Motorcycle CNC folding clutch brake handle For Honda CR125R CR250R CRF250X CRF450X CRF250R CRF450R CRF125F CRF150F 230F 250F
aliexpress.com
$27.02
Storage Bins, Foldable Fabric Storage Cubes And Cloth Storage Organizer Drawer For Closet And Toys Storage
aliexpress.com
$36.93
Doyerl Elegant Ruched 2 Piece Sets Woman Clothing Loose Sleeveless Halter Backless Top and Wide Leg Pants Matching Sets Outfits
aliexpress.com
$277.70

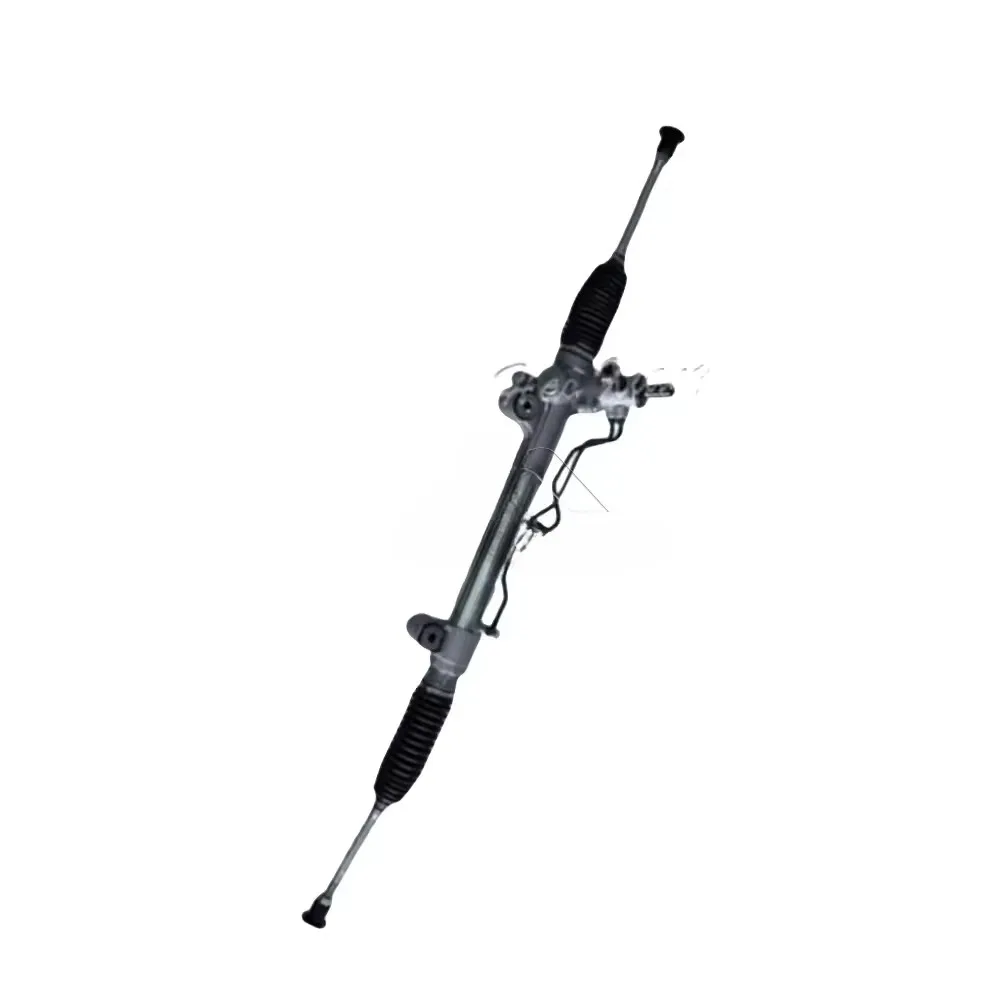

Power Steering Gears Steering Rack for Toyota Hilux Vigo 4WD 44200-0K030, 44250-0K730/44250-12560/44250-0K040/44250-0K030
