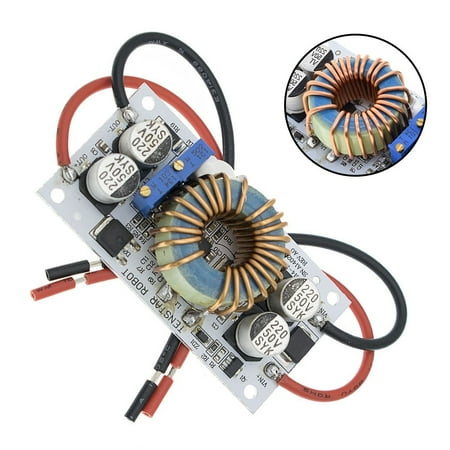

DC-DC boost converter constant module 250W 10A LED driver non-isolated module

Dreamhall
sku: 3457712757
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$10.59
Shipping from: United States
Description
describe: [Module name]: 250W boost constant current module [Module nature]: Non-isolated booster module (BOOST) [Input voltage]: DC10V-40V [Input current]: 6A (MAX) [Static working current]: 10mA (when 12V rises to 20V the higher the output voltage the higher the static current will increase) [Output voltage]: 10-50V continuously adjustable (the default output is 19V for shipment. If you need other voltages please explain to the shopkeeper.) [Output current]: If 6A MAX exceeds 4A please strengthen heat dissipation (related to input and output differential pressure the higher the differential pressure the lower the output current) [Constant current range]: 0.2-6A [Output power]:=input voltage * 6A such as: input 12V * 6A=72W input 24V * 6A=144W Input 36V * 5A=180W input 48V * 5A=240W [Working temperature]: - 40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high) [Working frequency]: 150KHz [Conversion efficiency]: 92% - 96% (efficiency is related to input and output voltage current and voltage difference) [Input reverse connection protection]: Yes (if the reverse connection current is less than 5A please input a diode in series) [Installation method]: 4 3mm screw holes [Wiring mode]: wiring output [Module size]: length 70mm width 36mm height 13mm [Unit weight of module]: 50g features: 1、 Output voltage/current regulation method: 1. Adjust the RV1 potentiometer and set the output voltage to the voltage value you need according to your battery or LED. For example the voltage of 10 LED strings is adjusted to 37 V. 2. Turn the RV2 potentiometer clockwise for about 30 turns set the output current to low connect the LED and adjust the RV2 potentiometer to the current you need. For battery charging after the battery is discharged connect it to the output and adjust RV2 to the current you need. (For charging it must be adjusted with the discharged battery because the more power the battery has left the smaller the charging current.) Please do not adjust the current in the way of short circuit. The circuit structure of the voltage rise module cannot be adjusted in the way of short circuit Package includes: 1 * Booster module
Price history chart & currency exchange rate
