DC 12V 10A 4CH 433Mhz rf Switch Relay Receiver and Transmitter 4 button for Garage Remote Control and Remote Light Switch
Technical Details
| Amount of storage remote controls: | 25 pieces |
| Application: | Garage, Light, Automated curtains, Fan, Door, Gate, LED, Lamps, Motor |
| Application scenario: | Family, Farm, Factory, Office, Supermarket |
| Brand Name: | Diese |
| Channel: | 4 |
| Frequency: | 433 MHz |
| Input Voltage: | 1~250V |
| Max Current: | 10A |
| Model Number: | KR1204 Remote Control 433Mhz RF Relay Receiver |
| Output Voltage: | 1~250V |
| Package: | Yes |
| Quiescent Current: | <5MA |
| Receiving Range: | Open space is more than 50 meters |
| Receiving sensitivity: | >97dbm |
| Remote operating mode: | Momentary/ Toggle/ Latched Mode |
| RF Frequency: | 433MHz |
| RF Operating mode: | ASK superheterodyne wireless reception |
| Support APP: | No |

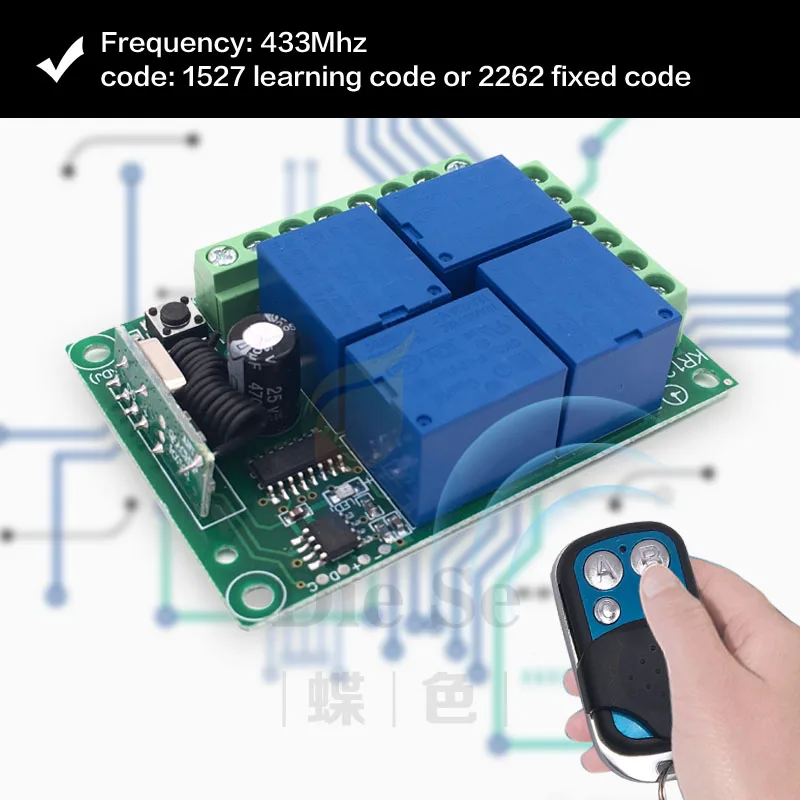

| Support encoding: | 1527 Leaning code/2262 fixed code |
| Use: | Electric Door,Lighting,Automated curtains,Switch,Universal |
| Wireless Communication: | RF |
| Working Temperature: | -30~+80 |
| Working voltage: | 12 V |
