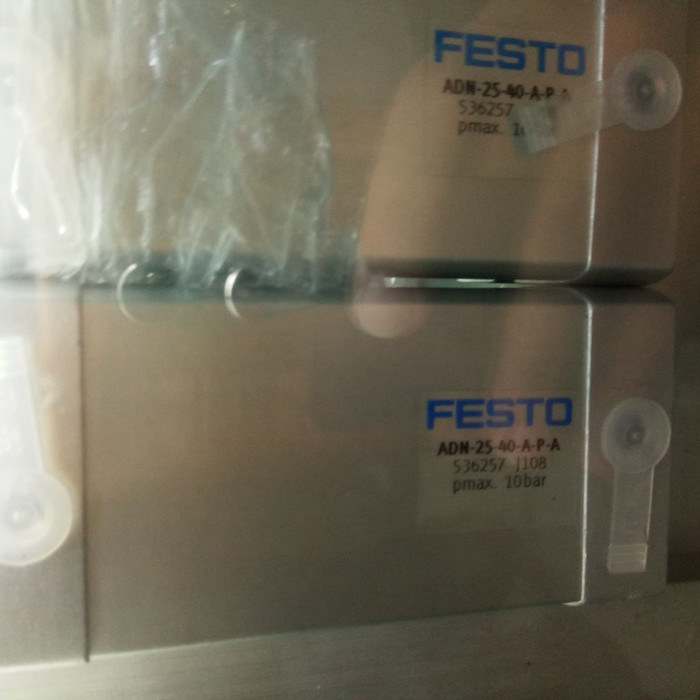

Compact Cylinder ADN-25-40-A-P-A #156611 ( Festo )
Description
Compact cylinder ADN-25-40-A-P-A #156611 ( Festo )
Stroke 40mm
Piston diameter 25 mm
Cushioning P: Flexible cushioning rings/plates at both ends
Assembly position Any
Mode of operation double-acting
Piston-rod end Male thread
Design structure Piston
Piston rod
Position detection For proximity sensor
Variants Single-ended piston rod
Operating pressure 1 ... 10 bar
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 2 - Moderate corrosion stress
Ambient temperature -20 ... 80 C
Impact energy in end positions 0.1 J
Theoretical force at 6 bar, return stroke 247 N
Theoretical force at 6 bar, advance stroke 295 N
Stroke 40mm
Piston diameter 25 mm
Cushioning P: Flexible cushioning rings/plates at both ends
Assembly position Any
Mode of operation double-acting
Piston-rod end Male thread
Design structure Piston
Piston rod
Position detection For proximity sensor
Variants Single-ended piston rod
Operating pressure 1 ... 10 bar
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 2 - Moderate corrosion stress
Ambient temperature -20 ... 80 C
Impact energy in end positions 0.1 J
Theoretical force at 6 bar, return stroke 247 N
Theoretical force at 6 bar, advance stroke 295 N
