Coil Sensor Current Transformer Built-In Input Coil High Accuracy For Circuit

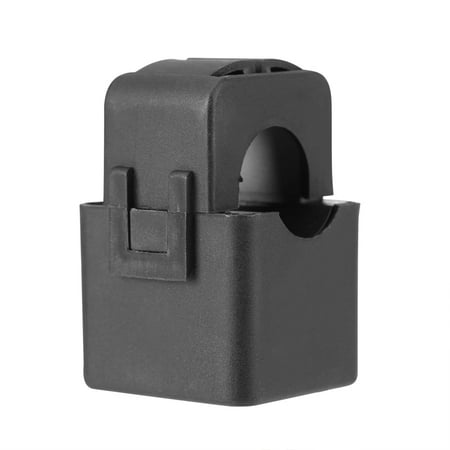

Coil Sensor Current Transformer Built-In Input Coil High Accuracy for Circuit Specification: Descriptions: This is a mini split base current transformer; it s the smallest one compared to the similar products output 100MA. Fully enclosed mechanical properties and environmental resistance strong voltage isolation capability and reliability. Used for energy meter in special; AC 220v 380v power supply can both be applied. Features: This is a mini split base current transformer; it s the smallest one compared to the similar products output 100MA. The diameter of inner hole is 16mm the accuracy is Less than or equal to 0.5 grade Using snap joint structure it can be fixed to the cable directly through nylon ties. Built-in input coil; small and light easy to install. Fully enclosed mechanical properties and environmental resistance strong voltage isolation capability and reliability. Specifications: Brand: PEACEFAIR Model: PZCT-02 Environment temperature: -40 degrees Celsius ~+85 degrees Celsius Relative humidity: Less than or equal to 90%40 degrees Celsius Working frequency: 50Hz~60Hz Insulation endurance grade: B grade 130 degrees Celsius Insulation resistance: >1000 milliohm normally Dielectric strength: can afford power frequency 1000V/1minute Flame resistance: Conform to UL94-Vo grade Internal resistance: 10 Ohm Measuring range: 0-100A Weight:59g Application: 1. The current transformer is used for energy meter in special; AC 220v 380v power supply can both be applied. 2. When you fix the energy meter you don t need to cut off the power if you use this product. Package Included: 1 x Current Transformer Note: 1. The CT primary should be connected in series with the test current the secondary should be as work in the short-circuit state. 2. The secondary circuit is not allowed open circuit so please do not install fuse.
