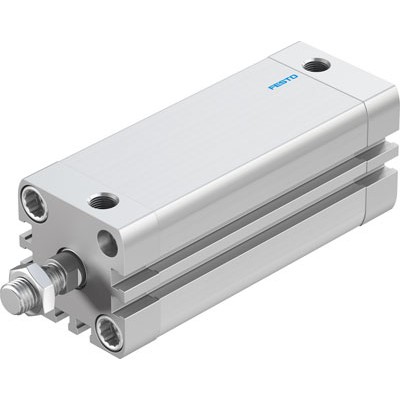

COMPACT CYLINDER 80MM ADN-32-80-A-P-A

Stroke 80 mm
Piston diameter 32 mm
Piston rod thread M10x1,25
Cushioning P: Flexible cushioning rings/plates at both ends
Assembly position Any
Conforms to standard ISO 21287
Piston-rod end Male thread
Position detection For proximity sensor
Variants Single-ended piston rod
Operating pressure 0.6 ... 10 bar
Mode of operation double-acting
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 2 - Moderate corrosion stress
Ambient temperature -20 ... 80 °C
Impact energy in end positions 0.4 J
Theoretical force at 6 bar, return stroke 415 N
Theoretical force at 6 bar, advance stroke 483 N
Moving mass with 0 mm stroke 60 g
Additional weight per 10 mm stroke 30 g
Basic weight for 0 mm stroke 265 g
Additional mass factor per 10 mm of stroke 9 g
Mounting type Optional
with through hole
with internal (female) thread
with accessories
Pneumatic connection G1/8
Materials note Conforms to RoHS
Material cover Aluminium
Anodised
Material seals TPE-U(PUR)
Material piston rod High alloy steel
Material cylinder barrel Wrought Aluminium alloy
Smooth anodised
