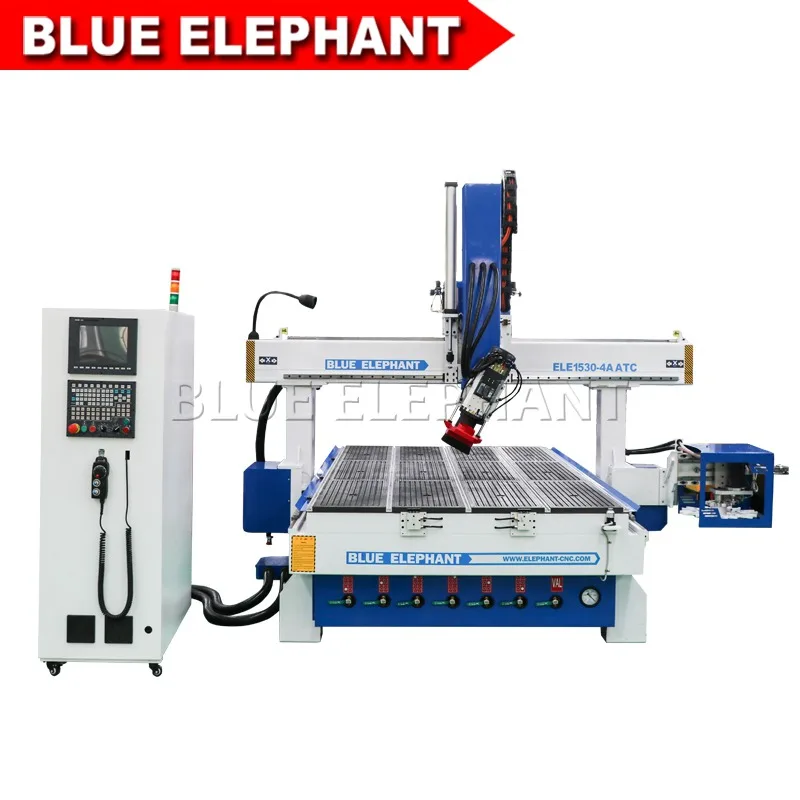

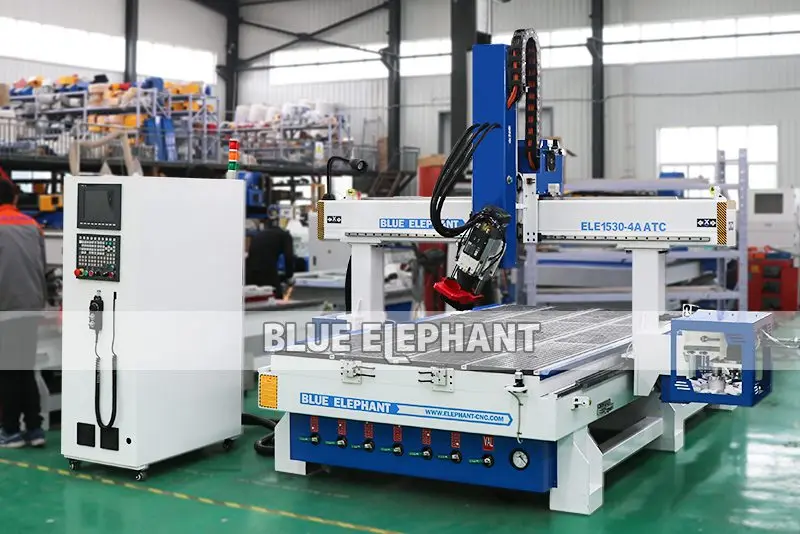

Blue Elephant Carousel ATC1530 4 Axis CNC Router with Rotary Spindle
Technical Details
| Brand Name: | Blue Elephant |
| CNC or Not: | CNC |
| Condition: | New |
| Drive Motors: | 1300W YASKAWA servo driver and 1000W servo motor |
| dust collector: | 5.5KW dust collect |
| Inverter: | 11kw DELTA inverter |
| Lubrication system: | Autol lubrication system |
| Model: | ELE1530ATC |
| Model Number: | 1325 ATC |
| Operating System: | SYNTEC 6MB control system |

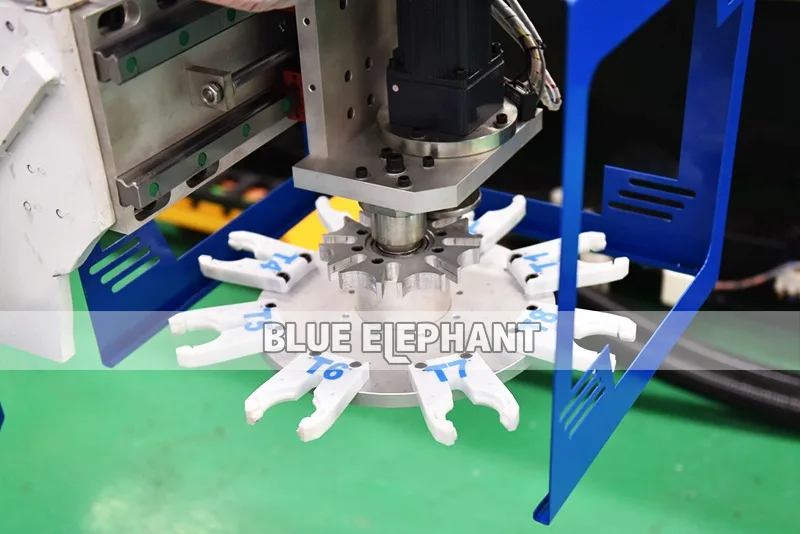

| spindle Power: | 9.6KW HSD ATC air cooling spindle with linear 8 storage |
| Spindle speed: | 0-24000RPM |
| Table surface: | Vacuum & T-slot table |
| Tool sensor: | Automatic tool sensor calibration |
| Vacuum pump: | 7.5KW Vacuum pump |
| Working voltage: | 380V, 3Ph, 60Hz ( 220V for optional) |
| X, Y Structure: | Helical rack gears |
| X,Y,Z working area: | 1500*3000*400mm |
| Z axis travel: | 400mm (according to your requests) |
| Z Structure: | Taiwan TBI Ball Screw |
