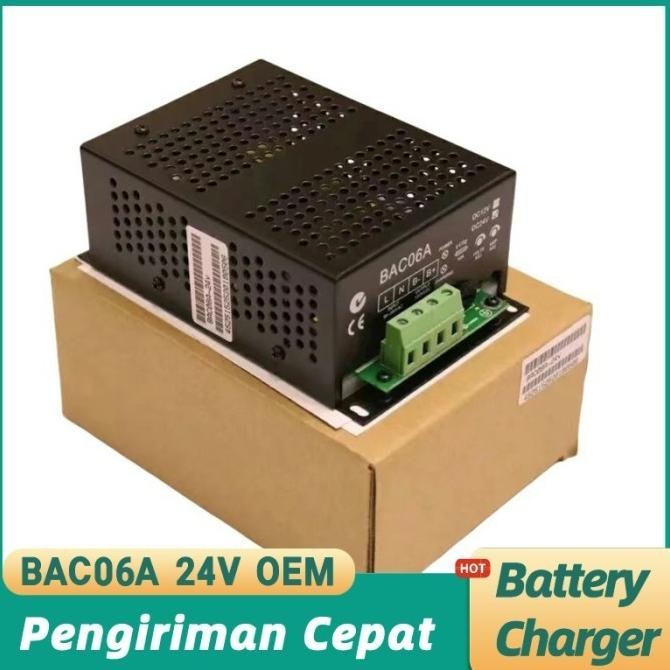

Battery Charger UNIV Electrical BAC06A 24V 3A Charger SMARTGEN OEM

Battery Charger UNIV Electrical BAC06A 24V 6A Charger SMARTGEN OEM
1.Designed in switching power structure, wide range of AC voltage input, small volume, light weight and high efficiency;
2.Two-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, can avoid overcharging and extent extend the battery life to the fullest;
3.With short circuit and reverse connection protection;
4.Charging voltage and current can be adjusted via potentiometer on the spot;
5.Suitable for 12V and 24V batteries, corresponding types are BAC06A-12V and BAC06A-24V;
6.LED display: Power indication and charging indication
Battery Voltage: 12V, 24V
Max. Charge Current: 6A, 3A
Charge Voltage Range: (13~14.5)V, (26~29)V
Charge Current Range: (3~7)A, (1.5~3.5)A
AC Voltage: (95~280)VAC (95~280)VAC
Power Consumption: 120W, 115W
No-Load Power Consumption: Less than 3W
Efficiency: More than 80%, More than 85%
Working Temperature: (-40~60)°C
Storage Temperature: (-40~85)°C
