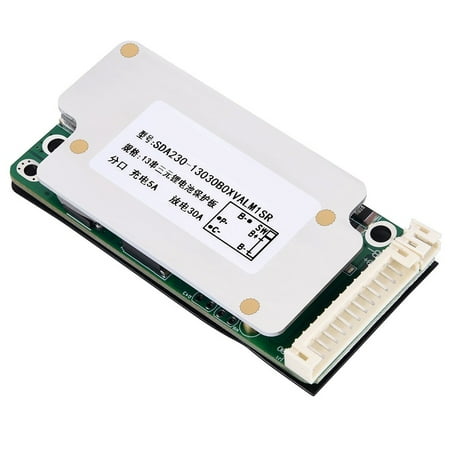

Ana Lithium Battery BMS for E-bike/Escooter 36V 48V 30A 11S 14s system

Description: *Brand new and high quality *Made of high-quality materials durable *High-quality Battery Management System *design forE-bike/Escooter etc，Support 5A fast charging，and 30A output *Effective protection of the Li-Ion cells *36V，48V available ，support 11S 14S 13S batterys *BMS for 36V or 48V with 25A or 30A with on/off cable and cable for single cell connection Specification: Material: PCB Color: green Weight: About 70g/set Model: 36V -30A -11s， 48V-30A-13s 48V-30A-14S Dimensions: 75mm long 36.5mm wide 1.6mm high Resistance: ≤30mΩ Wiring method: same port Single battery over-discharge voltage: 2.7V±0.08V Continuous working current: 20A/30A Instantaneous protection current: 60A/80A Over-current recovery condition: charge recovery/disconnect load Short circuit recovery conditions: charge recovery / disconnect load Single battery overcharge voltage: 4.25V±0.025V Continuous charging current: 20A/30A Charger voltage: 56V-60V (recommended) Charging over temperature: 63°C Discharge over temperature: 85°C Working power consumption: ≤40uA Conduction internal resistance of the main circuit: ≤15mΩ Temperature range: -40 to +80°C Disconnection protection: support Wire size: 2.0MM pitch/40CM length Package Includes: 1x BMS Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
