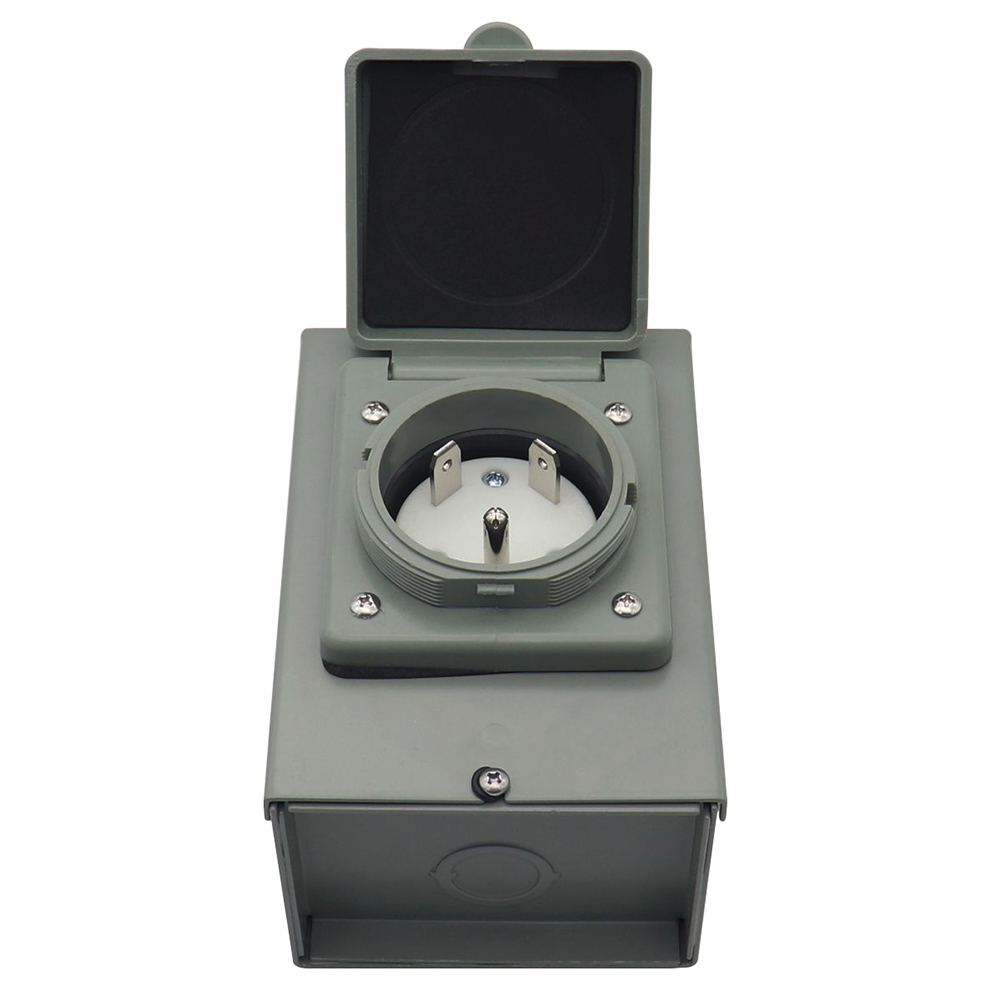

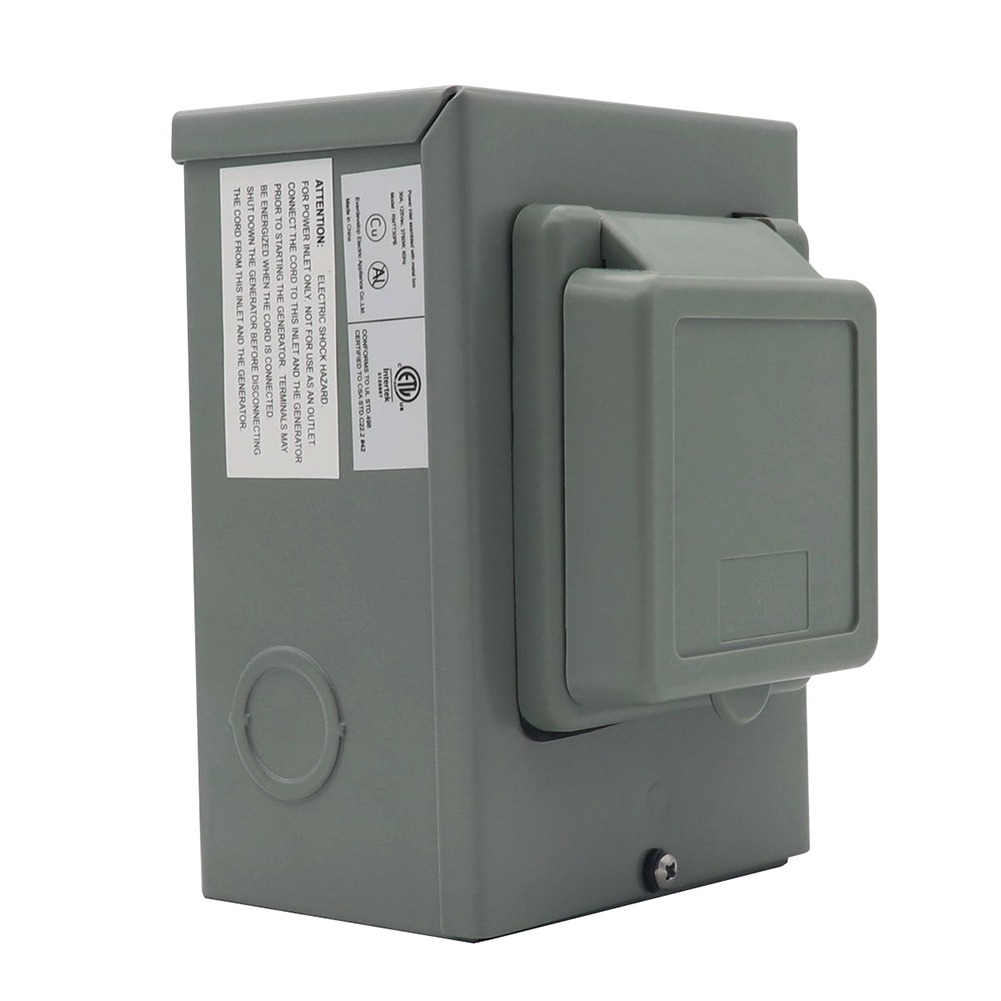

AON1556 Weatherproof 30A 3 Prong Generator Power Inlet Box Outdoor Use, 501 Original

AON1556 Weatherproof 30A Generator Power Inlet Box for 3 Prong Generator Cord Outdoor UseFeature:Frost-proof and weather-proof RV swing cover power socket, plug into the 30A motorhome power supply with a large handle or a very hard heavy wire.Specification:Product model: AON1556Rated voltage: 120VRated current: 30AProduct material: ironProduct size: 106*111*154mmProduct packaging: kraft carton packagingPacking size: 116*116*165mmProduct net weight: 1082gProduct gross weight: 1141gInstallation:Use the three holes provided on the back of the cabinet to install the power outlet in a convenient location outside the building. Using only copper wires and an approved wiring method, connect the wires through an opening in the cabinet to the junction box located near the transfer switch. If using a catheter, pull at least four colors. Maximum wire gauge: 10AWG strip 3/5 inch (15mm) of wire insulation (do not tinned conductor), and then connect the wire toThe power input box is as follows. Ensure that there is no wire insulation on all terminals, and use an electric Phillips screwdriver to tighten the inlet terminal screws to a torque of 35 inch pounds.Cable color scheme:Black = load (120 volts)White = W neutral wire, connected to the \\\"white\\\" marked terminal.Green = Green power input wire to the green ground screw terminal inside the cabinet.If necessary, connect the green wire to the green ground screw terminal inside the cabinet.Warning:Before installation, the socket must not be connected to the power source. Failure to follow this instruction may cause electrical failure, fire and electric shock.This power inlet box and related wiring must be installed by a qualified electrician in accordance with all applicable electrical codes. When used to power a building, the entrance must be used in conjunction with a transfer switch. Not suitable for indoor use. When using an engine-driven generator, please stay away from doors and windows to avoid carbon monoxide accumulation in the engine exhaust in an enclosed area.Note:There may be slight size deviations due to manual measurement, different measuring methods and tools.The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
