AK-RXB35 Electric Remote Control Switch Button Lock LED Light Drive Module, 433mhz, 501 Original

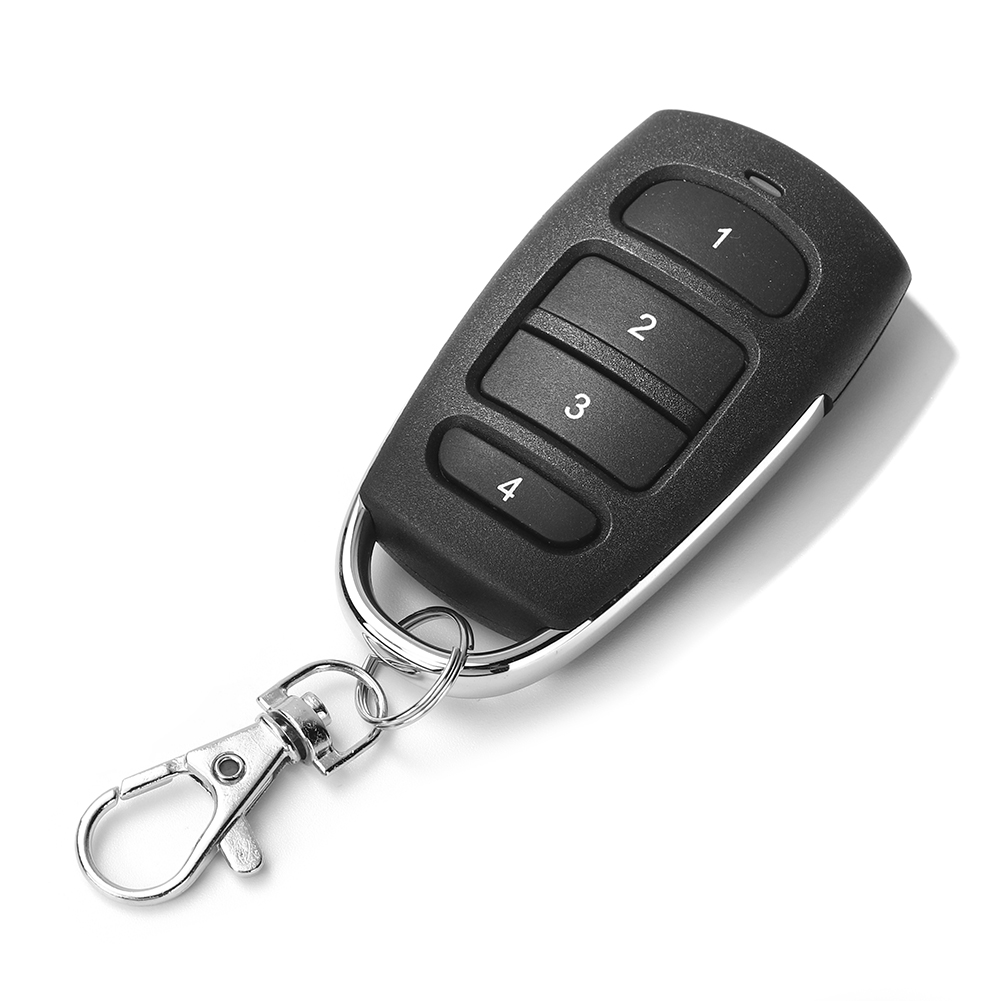

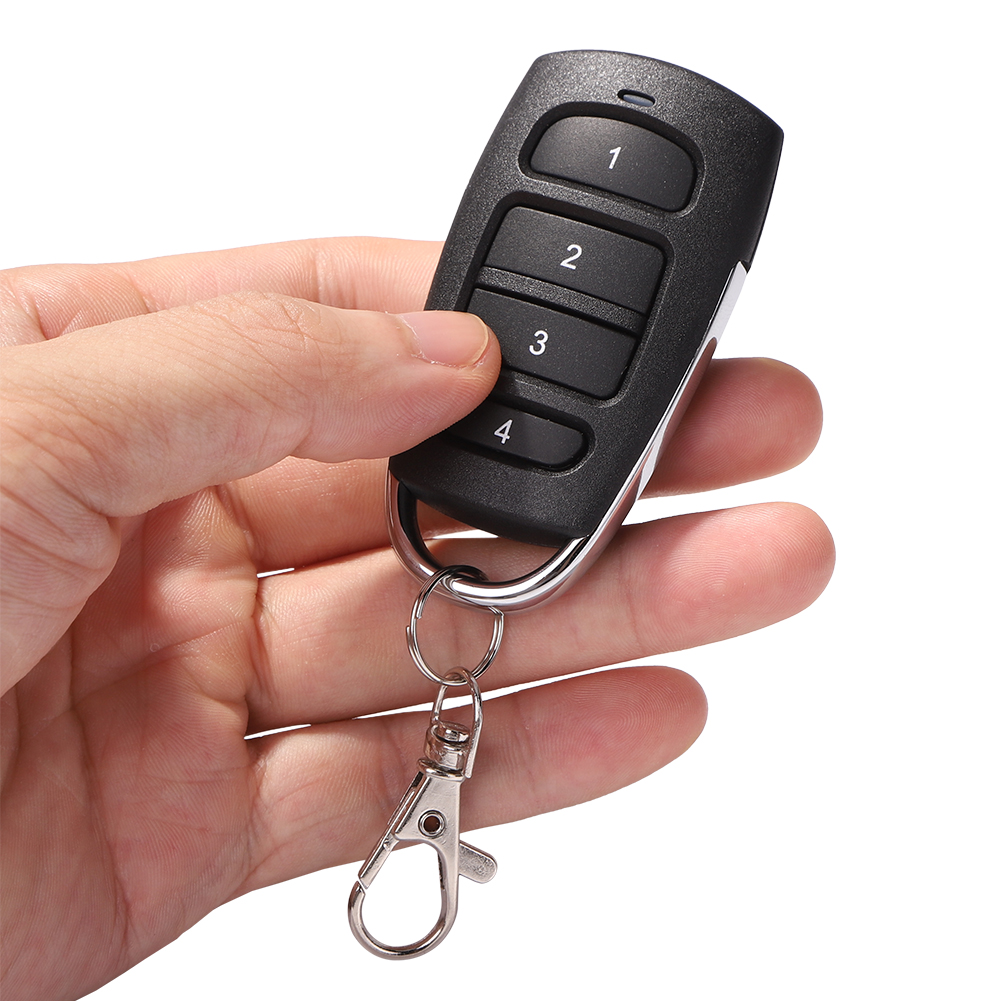

AK-RXB35 Clone Remote Control Switch 315MHz/433MHz Button Lock Learning Code for Car Garage Door LED Light Drive Module Security Alarm System Description:Made of French imported wireless data transmission and reception chip, with stable performance, anti-interference, high sensitivity, and wireless signal input to data signal output can be achieved without any additional circuits. With its own data decoding circuit, it can easily realize the development of wireless products. The output mode is inching, self-locking, and interlocking adjustable, adapting to different users. The code matching method is used to match the remote control, and the remote control with multiple chips such as 2260, 2262, 2240, 1527 and so on can be input, which is convenient for matching.Specification:Receiving sensitivity: -105dBmWorking frequency: 315MHz/433MHzPower supply voltage input range: 3.3V-5.5VLow power consumption: 3.3V/6.7mA @ 433.92MHz; 5.5V/7.5 mA@315MHzTemperature range: -30~+85℃ (can work normally even in harsh environment temperature)Pin description: from left to right VT, D0, D1, D2, D3, VCC, GNDOutput mode: Jog, self-locking, interlocking optionalModule size: 31*14*6mm/1.2*0.55*0.24inApplication range:Car remote control door switch (RKE);Remote control door opener;Wireless security alarm;Wireless door bell; Wireless Controller;Wireless data transmission.Operation method:1. Code pairing (learning)Place the original remote control and the copy remote control as close as possible, first press a button of the original remote control, and immediately after the indicator light turns on, press and hold a button of the self-copy remote control for about three seconds, the LED will flash 3 times and then quickly Flashing, it means that the address code of the original remote control button has been learned successfully. The other keys are operated in the same way for learning.2. Clear code:Press the unlock button and the lock button at the same time for 2 seconds, the LED light starts to flash 3 times. At this time, keep the lock button pressed and release the unlock button. Press the unlock button three or four times within 5 seconds, and the indicator light flashes quickly. The code has been cleared.Test whether the existing code of the remote control has been successfully cleared: When you finish the clearing action, you can press any button of the copy remote control. If the LED does not flash immediately at this time, it will flash after 2 seconds, that means Copy the original code of the remote control has been completely cleared, if the LED still flashes quickly, it means that the code still exists and needs to be cleared again.3. Restore the cleared codeThe copy remote control has a recovery function. If you accidentally clear the address code of the normal copy remote control during use, you can press the start and mute buttons (the next two buttons) on the remote control at the same time. After about three seconds, the LED will flash 3 times. Start to flash quickly, which means that the cleared address code is successfully restoredPrecautions:1. The working voltage cannot exceed the rated voltage.2. In an environment with high wireless interference, the transmission distance may be reduced.3. Keep out of reach of children.4. It is forbidden to use it in a humid environment, otherwise it may cause damage to the remote control.Note:Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!Please allow 1-2cm measuring deviation due to manual measurement.Package Content:1 X Drive Module1 X Remote Control
