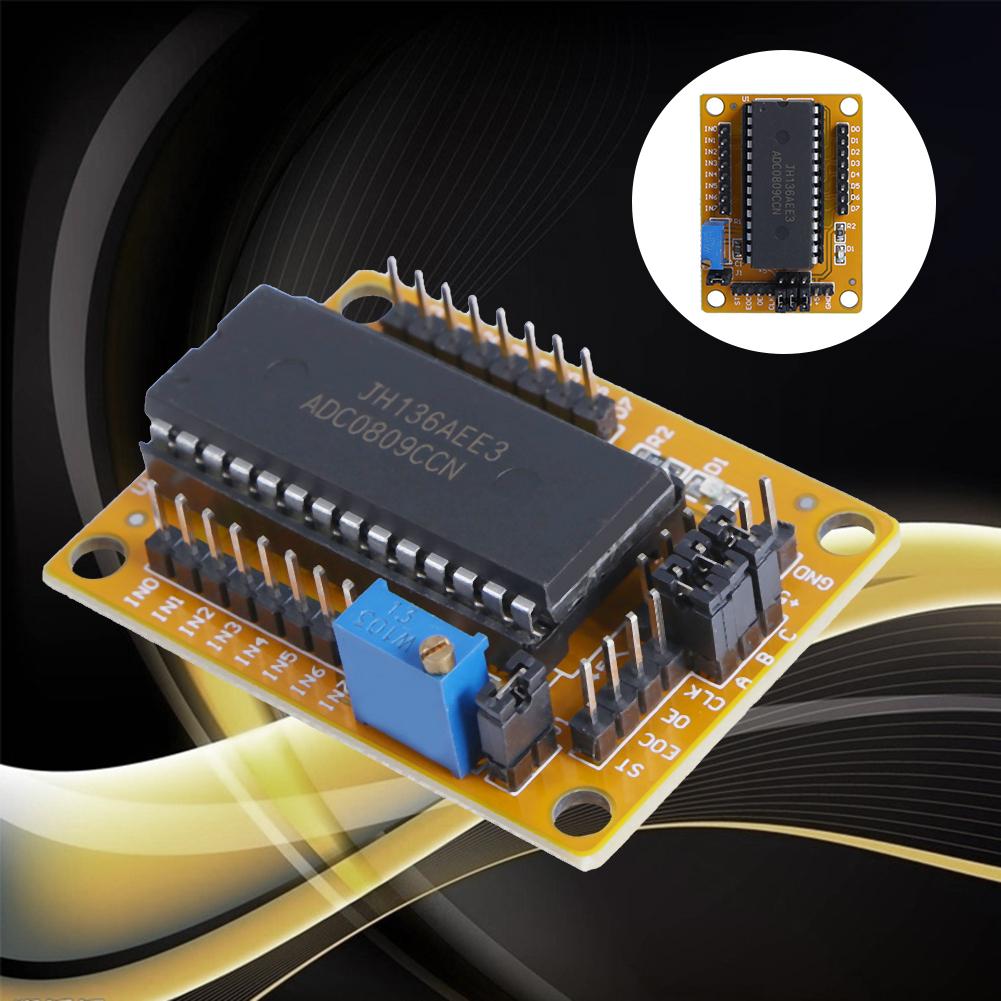

ADC0809 Module AD Converter 8 Channel Parallel Digital Voltmeter Module, 501 Original

ADC0809 Module AD Converter 8 Channel Parallel Digital Voltmeter Module, 501 Original
thumb
thumb
sku: 9502095e-b943-4873-b710-adc069922beb
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$7.40
Shipping from: China
   Description
ADC0809 Module 8 Relay Parallel AD Conversion Module Digital Voltmeter Analog Digital Conversion ModuleADC0809 Module AD Converter 8 Channel Parallel Digital Voltmeter Analog Digital Conversion ModuleDescriptions:1. ADC0809 is a National Semiconductor 8-channel, 8-bit successive approximation A / D analog-to-digital converter manufactured by National Semiconductor.2. Its internal has an 8-channel multi-channel switch, which can be encoded according to the address code after the signal, only through the 8 analog input signal for a A / D conversion. Features:1. 8 input channels, 8-bit A / D converter, the resolution is 8 bits.2. Has a conversion start and stop control terminal.3. Conversion time is 100s (when clock is 640kHz), 130s (when clock is 500kHz).4. Single + 5V power supply.5. Analog input voltage range 0 ~ + 5V, no zero and full scale calibration.6. Operating temperature range of -40 ~ +85 degrees Celsius.7. Low power consumption, about 15mW. 8. The module size is: 5.5 * 4.2cm/2.16*1.65''9. Module built a precision potentiometer, can be used for voltmeter experiment.10. Address for single-chip selection, but also jumper cap selection.11. Need to use the input and output are drawn with a needle is very convenient.Note: Please allow 1-3cm differs due to manual measurement.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.1 x Module
