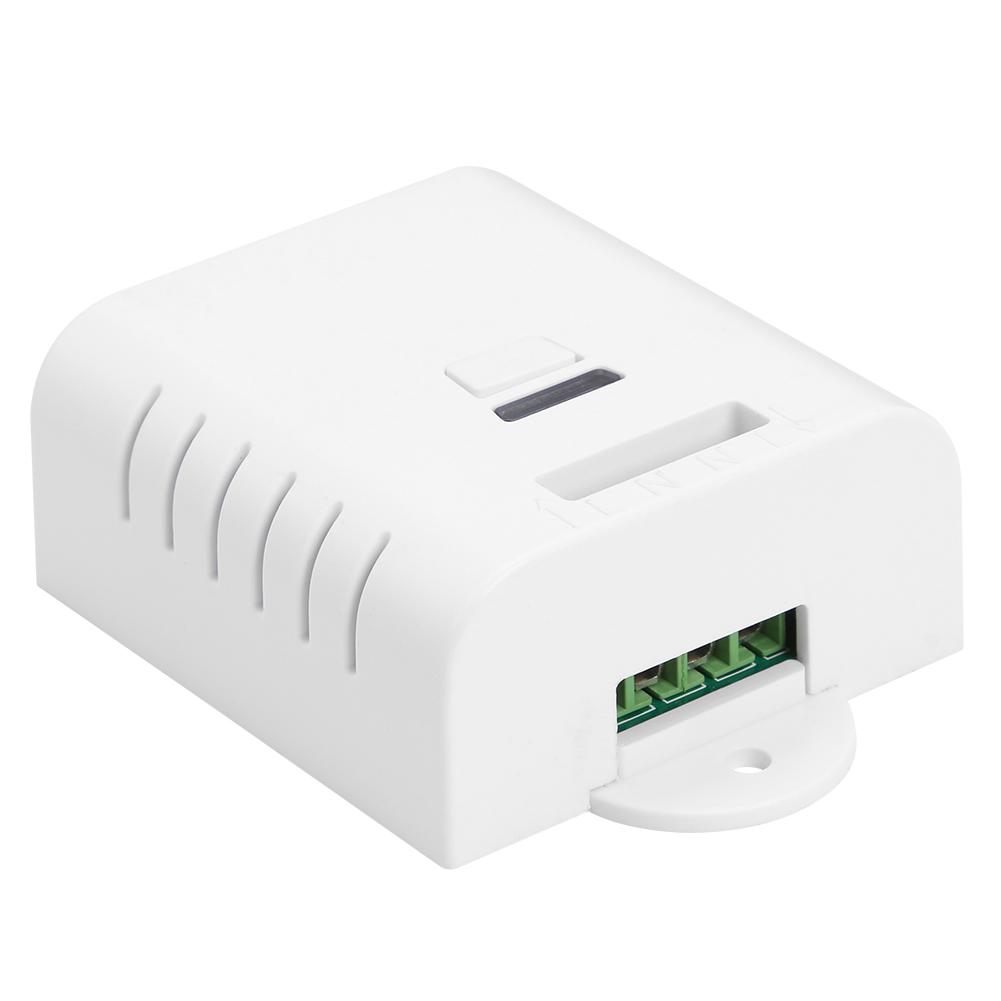

AC85V-250V Remote Control Switch System Transmitter+1CH Receiver for Light, 501 Original

Feature:1. Equipped with manual work button (when the remote control is lost or powered off, it can be manually controlled by itself. Press once to open and then press once to close).2. Small size, convenient installation without holding time.3. The circuit board design is reasonable and the precision accessories ensure the stable and safe operation of the receiver.4. The switching power supply adopts the professional switching power management chip imported from the United States, and the power supply voltage is very stable.Specification:Working voltage: AC85V-250VWorking frequency: 433MHzStatic working current: ≤ 30mAReceiving sensitivity: ≥ - 95dBOutput current: ≤ 30AWorking mode: self lock, interlock (adjustable)Launching distance: about 300-500mLoad: ≤ 1200WProduct size: 75 * 51 * 24mm/2.95*2*0.94''Operation:1. In self-locking mode: learn the code matching with the same key on the remote control, press the same key once to turn on, and then press once to turn off;2. In interlock mode: learn from two different keys on the remote control, press one key to turn on, and press the other key to turn off;3. Self lock learning and code checking method: first, connect the wireless remote control switch to an electrical device to test whether the remote control switch works normally. Then long press the learning key for about 3 seconds, the learning indicator light on the remote control switch interface will be on, release the hand, immediately press any key on the remote control twice, the learning indicator light will flash three times and then turn off the dust, indicating that the learning is successful.4. Interlock learning and code checking method: first, power on the wireless remote control switch, and then connect an electric appliance to test whether the remote control switch works normally. Then long press the learning key on the remote control switch for about 3 seconds, and the learning indicator light on the interface will be on. Release your hand, press any key on the remote control (or unlock key) immediately, and then press another key on the remote control (or close lock key). The learning indicator light will flash three times and then turn off grey, indicating that learning is successful.5. Code clearing method: (please clear the code first and then check the code when changing the working mode).Long press the learning key on the remote control switch interface for about 15 seconds, and the learning indicator light will turn on and off to indicate that the code clearing is successful.Note: Please allow 1-3mm differs due to manual measurement.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.1 X Remote Control 1 X Switch
