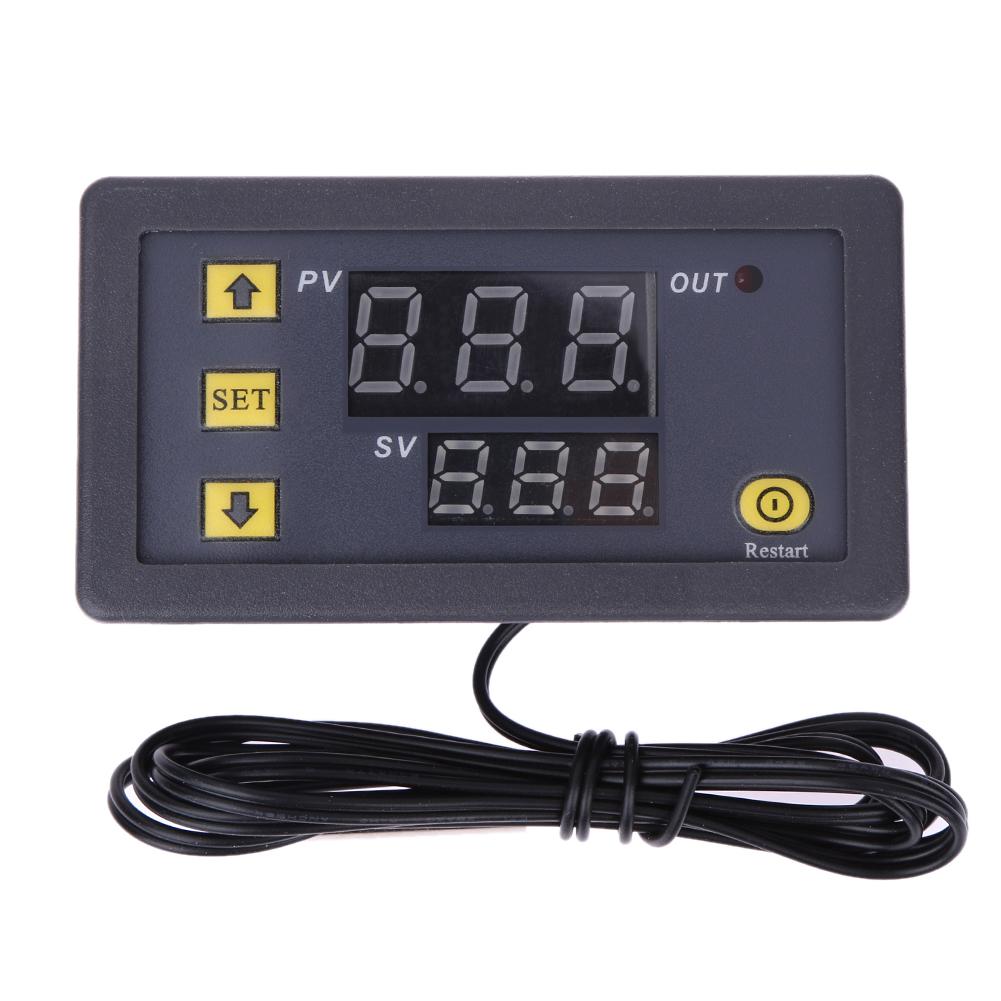

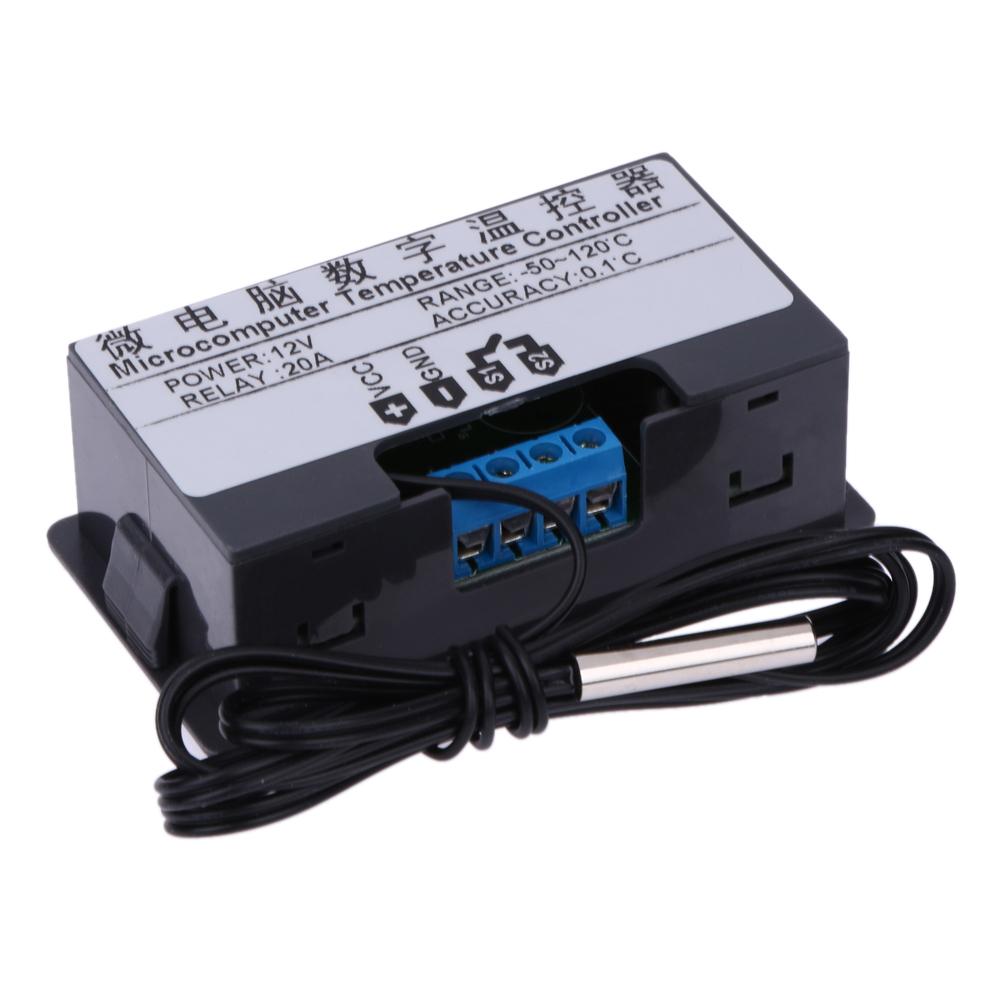

AC110-220V Microcomputer Digital Display Temperature Controller Delay Relay, 501 Original

AC110-220V Microcomputer Digital Display Temperature Controller Delay Relay Timer Control ModuleSpecifications:Timing range: 0-999S 0-999m 0-999hSupply voltage: AC110-220VRelay: 20AWorking current: 10A (max)Power: 1500W (max)Size: 79 * 43 * 26mm/3.11*1.69*1.02\\\"Hole size: 72 * 40mm/2.83*1.57\\\" Style:Temperature Controller/Time Controller Instruction Manual:1.After setting the data, you must wait 6 seconds,6s post modules automatically save memory set data.2.Press SET key once to enter the time setting mode,the red LED flashes, press the key to increase or decrease the setting time T1.3.After setting time T1,short press the SET key again, the green LED flashes,and the time is set by pressing the key Time T2, T2 time setting is completed,press SET key again, the system will automatically save the memory setting time or wait for 6s, 6s module will automatically save the data memory.4.Long press SET,enter parameter setting mode.There are two sets of parameters for the user to select P0, P1.Short press SET in the current mode to switch between P0 and P1. 5.In P0 parameter can be set by pressing the key to adjust their own timing mode.In the P1 parameter can be set by adding and subtracting keys work mode.P0--0:T1 Timing mode is second.P0-1: T1 timing mode is minutes.P0--2:T1 Timing Time mode is hour.P1--0:Delay T1 time,relay pull(T1 timer)P1--1:Relay release after T1 time delay (T1 timer)P1--2:Delay T1 time,relay pull(T1 timer),and then relay release after T2 time delay(T2 timing),then it is finished.P1--3:Relay release after T1 time delay(T1 timer),then delay T2 time,relay pull(T2 timing),then it is finished.P1--4:Delay T1 time,relay pull(T1 timer),and then relay release after T2 time delay(T2 timer),cycling. P1--5: Relay release after T1 time delay(T1 timer),then delay T2 time,relay pull(T2 timer),cycling. Notes:1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!2. Please allow 1-3cm measuring deviation due to manual measurement.Package Content:1 x Digital Display Delay Relay
