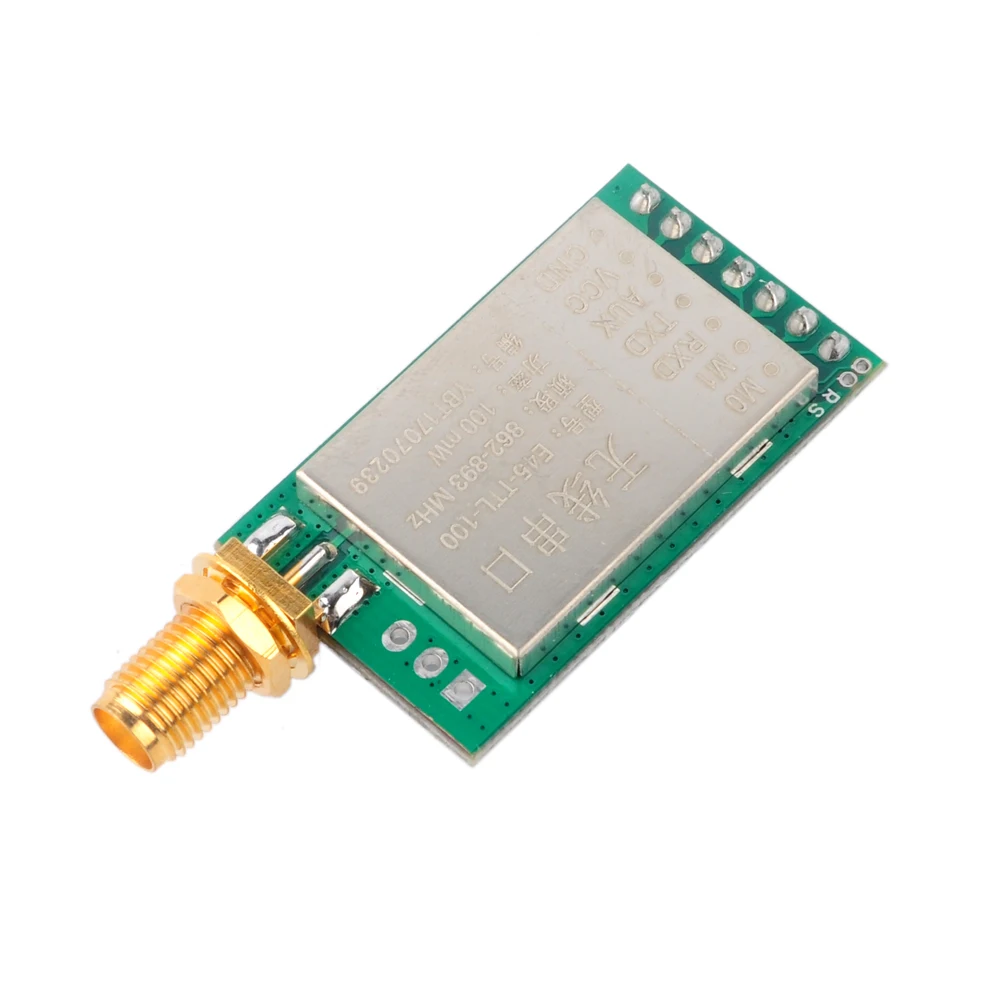

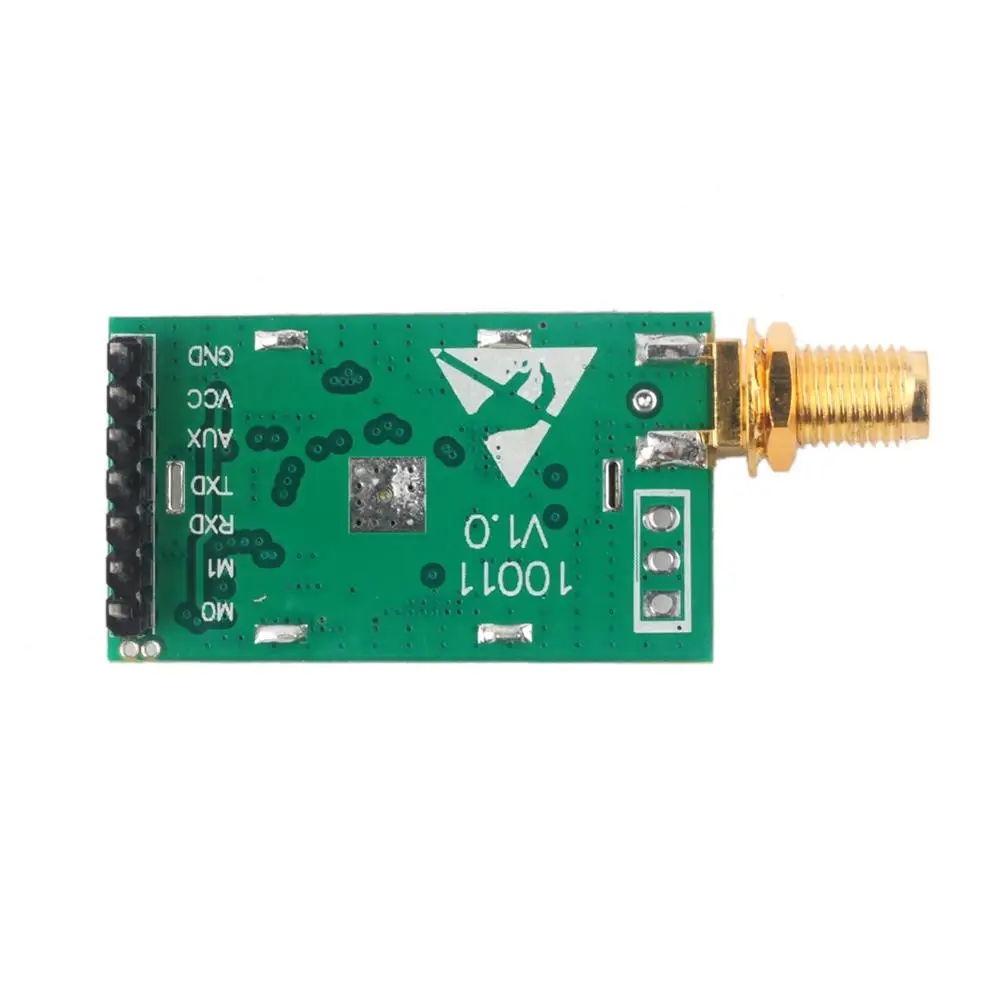

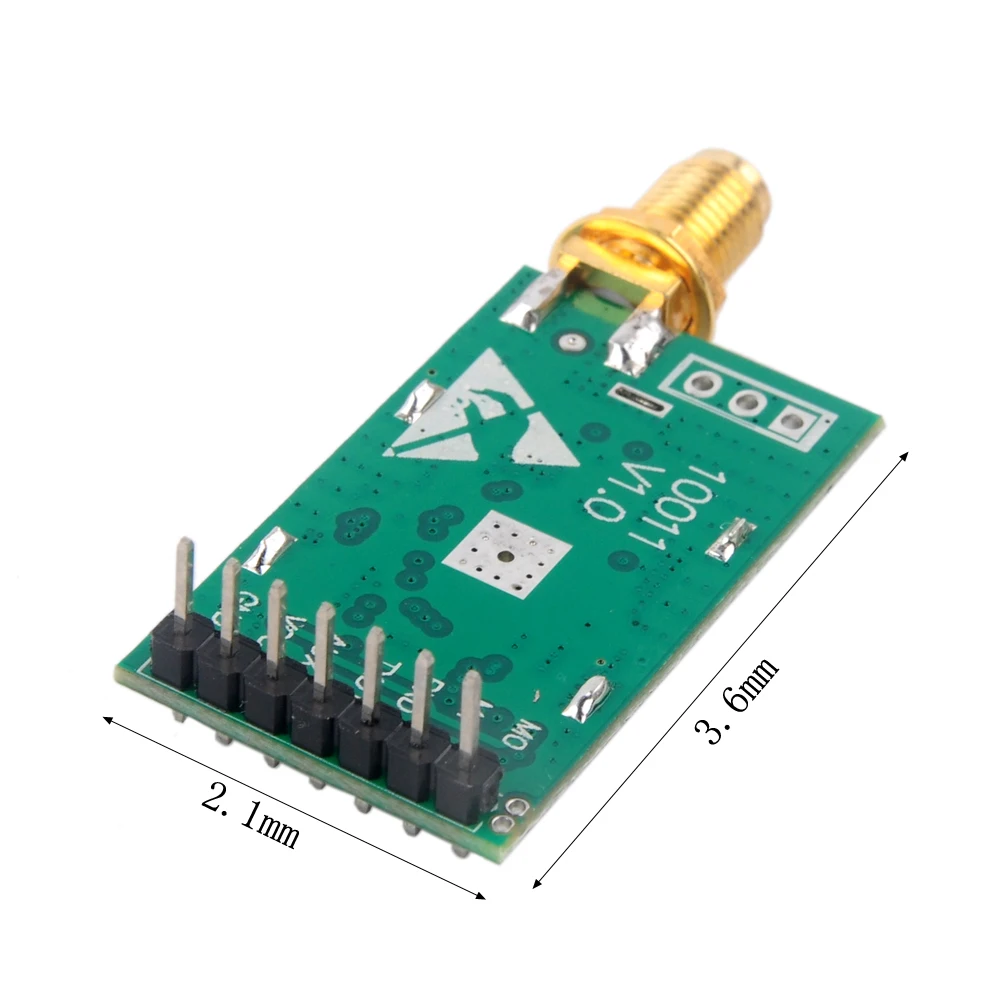

868MHz LoRa SX1276 100mW 20dBm RF Transmitter Receiver Wireless Module UART Long Range Transceiver 3000m 3KM FZ2909
Technical Details
| Antenna Type: | SMA-K |
| Chip: | SX1276 |
| Communication Voltage: | Max 5.2V |
| Distance: | 3000m |
| Frequency: | 862 - 893MHz(Default: 868MHz, channel:32) |
| Interface: | UART |
| Item type: | 868MHz LoRa SX1276 100mW |
| Model Number: | FZ2909 |
| Power: | 20dBm |
| Receiving Current: | 14mA |
| RF connector: | SMA-K |
| Sensitivity: | -138dBm/0.3kbps |
| Supply Voltage: | 2.1 - 5.5V DC(recommend 5V) |
| Transmitting current: | 120mA@20dBm |
| Transmitting power: | 20dBm |
