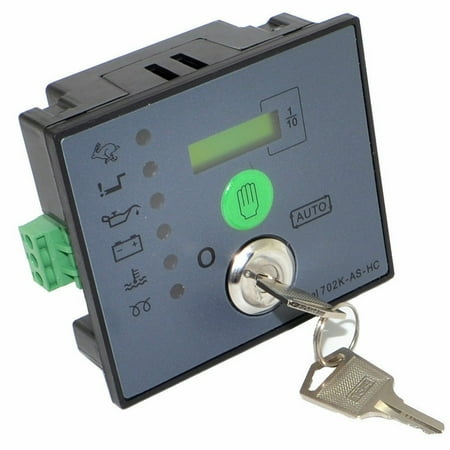

702K-AS-HC Electronic Auto Start Controller For DSE702AS Genset Generator Parts
Description
Features: 100% brand new high quality Made of high-quality materials for durability Type 702HC is a manual engine control module designed to control the engine via a key switch and push button on the front panel. The module is used to start and stop the engine and indicate fault conditions automatically shut down the engine and indicate engine faults through LEDs giving real first-occurring fault information. A full tamper-proof LCD hourly running counter is also provided. Product parameters: DC Power: 8 to 35 V continuous. Startup Voltage Drop: Ability to withstand voltage dips during startup. This is achieved without the need for an internal battery. Alternator input range: 15 - 305 V AC RMS (+20%) Alternator input frequency: 50 - 60 Hz rated engine speed. (minimum 75V AC) Overspeed: nominal frequency +14% (+24% overshoot) Start output: solid state 1.2A negative ground terminal Running output: solid state 1.2A negative ground terminal Preheat output: solid state 1.2A negative ground terminal Operating temperature range: -30°C to +70°C aspect: 84mm x 72mm x 34.9mm (3.3 x 2.8 x 1.4 ) Panel cutout 80mm x 68mm (3.14 x 2.67 ) Install: Install the front panel through the appropriate cutout. Supplied with retaining clips. Cable connection via screw clamp terminals Calibration: The speed trip setting switch is accessible from the rear of the module. Package Included: 1 * 702K-AS-HC Generator Controller Board 1 * key 2 * retaining clips 1 * Instruction Manual Note: 1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2.Please allow slight manual measurement deviation for the data.
