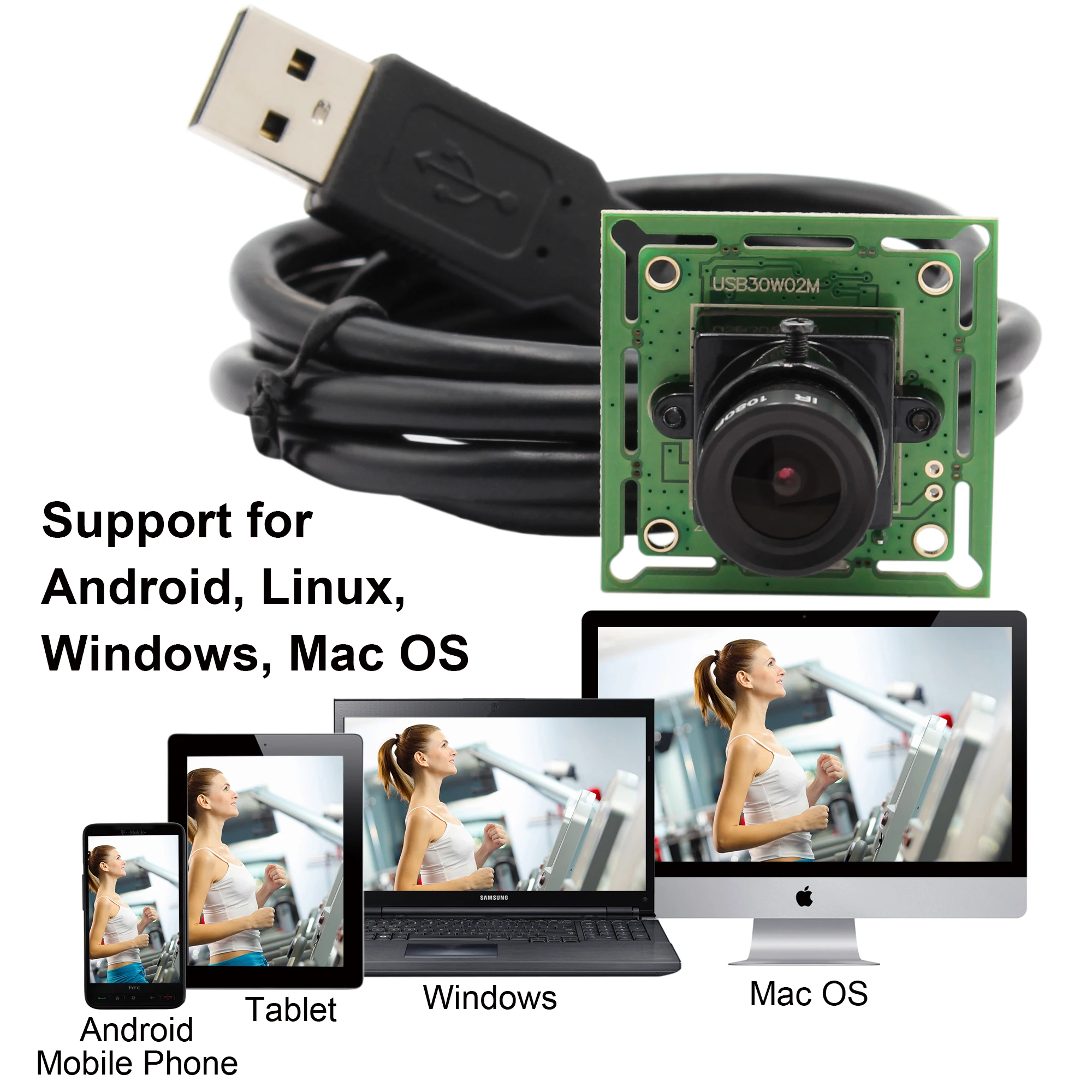

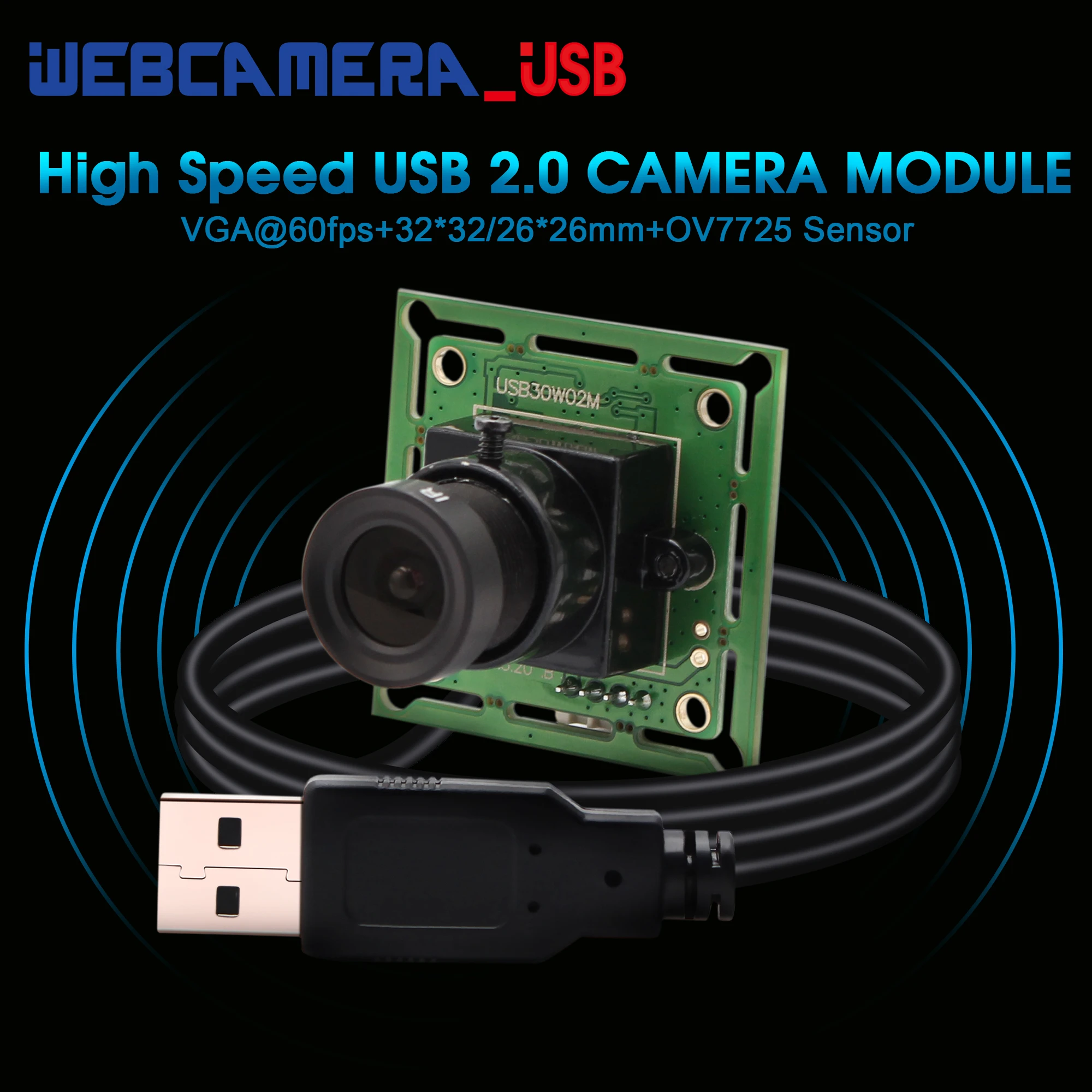

640* 480P Camera Module 1/4 inch CMOS OV7725 USB 2.0 MJPEG 60fps mini board camera usb smallest usb webcam Module
Technical Details
Brand Name: | ELP |
Compression Format: | MJPEG / YUV2(YUYV) |
Connectivity: | Closed System/CCTV Wired |
Dimensions L x W x Dmm: | 32*32mm/26*26mm |
Frame rate: | 60fps at 480P |
High Definition: | 480P(SD) |
IR Distancem: | 0 |
is customized: | Yes |
Lens: | 12mm megapixel lens (2.1/2.8/3.6/6/8/12mm lens optional) |
Lens mm: | 12mm |
Low illumination: | 0.5 lux |
Minimum IlluminationLux: | 0.5lux |
Model Number: | ELP-USB30W02M-L12 |
Power ConsumptionW: | 5V/150mA |
Power SupplyV: | 5V |
Resolution: | 640 (H) x 480(V) pixels |
Sensor: | CMOS |
Ships From: | Shenzhen |
Size: | 32*32/38*38mm |
Special Features: | UVC support |
Style: | Mini Camera |
Supported Operating Systems: | Windows 98,Windows XP,Windows Vista,Windows 7,Mac os,Windows 8 |
Support OS: | UVC or Windows, android ,linux,MAC OS |
Technology: | high speed usb 2.0 interface |
Type: | Video Camera |
USB Protocal: | USB2.0 HS/FS, USB1.1 FS |
Video Compression Format: | MJPEG |
Viewing Angle Degree: | about 20degree |
