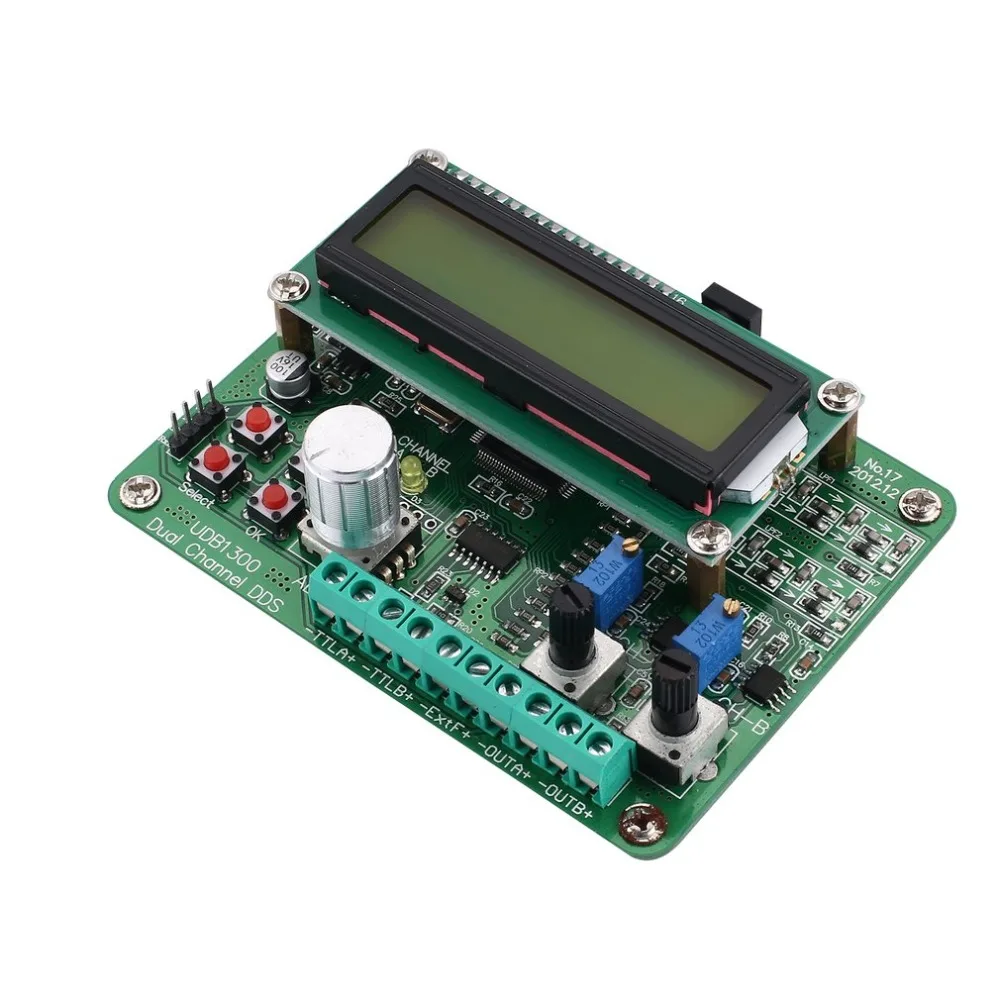

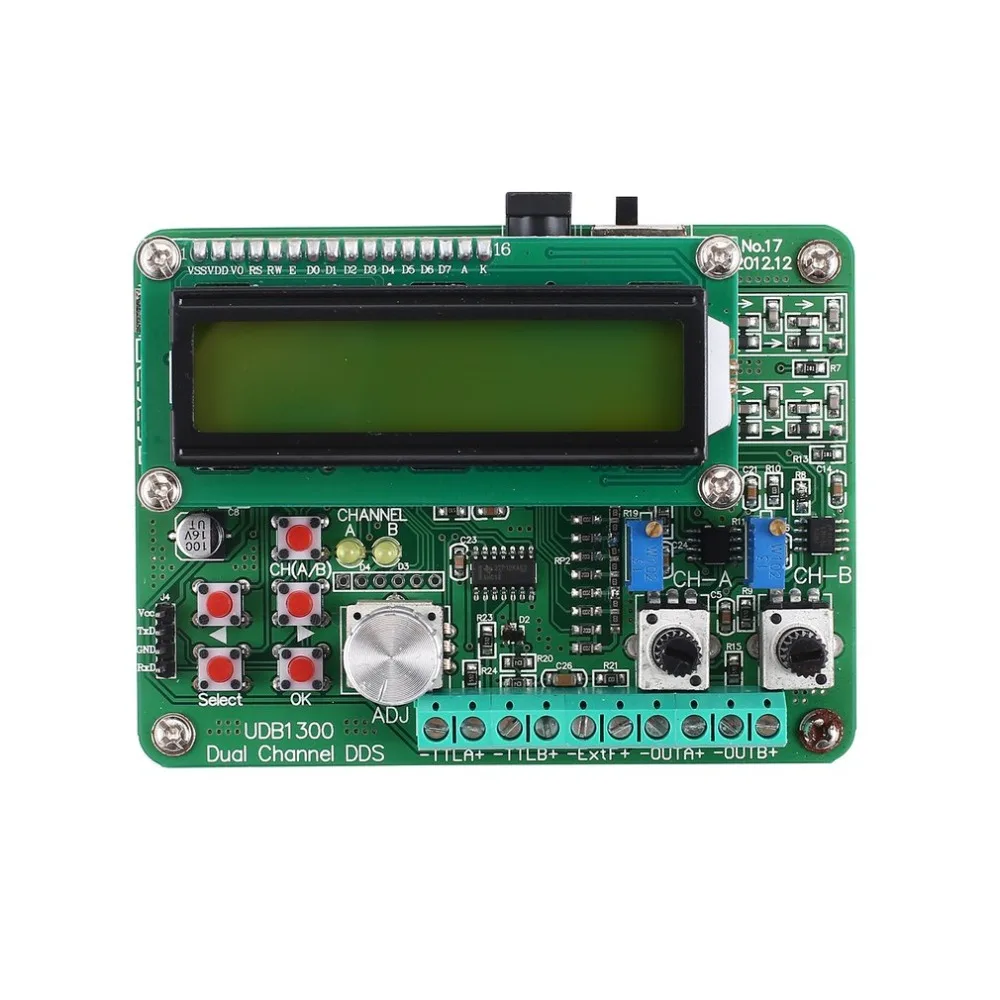

5MHz DDS Function Signal Generator Source Module Sine/Triangle/Square Wave TTL Output C LCD 1602 about 2.5V (no load) 10Vp-p

5MHz DDS Function Signal Generator Source Module Sine/Triangle/Square Wave TTL Output C LCD 1602 about 2.5V (no load) 10Vp-p
thumb
thumb
thumb
thumb
thumb
thumb
sku: 32934905362
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$47.39
Shipping from: China
   Technical Details
Amplitude: 3Vp-p or more
Bundle: Bundle 1
Compatible Audio & Video Equipment Style: Amplifier
DC offset: about 2.5V (no load)
Dimensions WxHxD: 9.5cm x 6.5cm x 3cm - 3.74inch x 2.56inch x 1.18inch.
Display: LCD1602
Fan Out: 20 TTL loads or more
Frequency accuracy: about 5 * 10-6
Frequency range: 0.01Hz ~ 5MHz( FY1005)
Frequency stability: about 1 * 10-6
Model Number: XD513 5MHz DDS Function Signal Generator Source Module Sine/Triangle/S
Output amplitude: 10Vp-p or more (signal output, no load)
Output Impedance: 50ohms more or less 10% (signal output)
Output waveforms: Sine wave, Square wave
Package: Yes
Resolution: 0.01Hz
Rise and fall time of square wave: 100ns or less
Sine Wave Distortion: 0.8% or less (reference frequency is 1kHz)
Square Wave Duty range: 1%~99%
Trinagle linearity: 98% or more (0.01Hz~10kHz)
Weight: 0.245 kg
