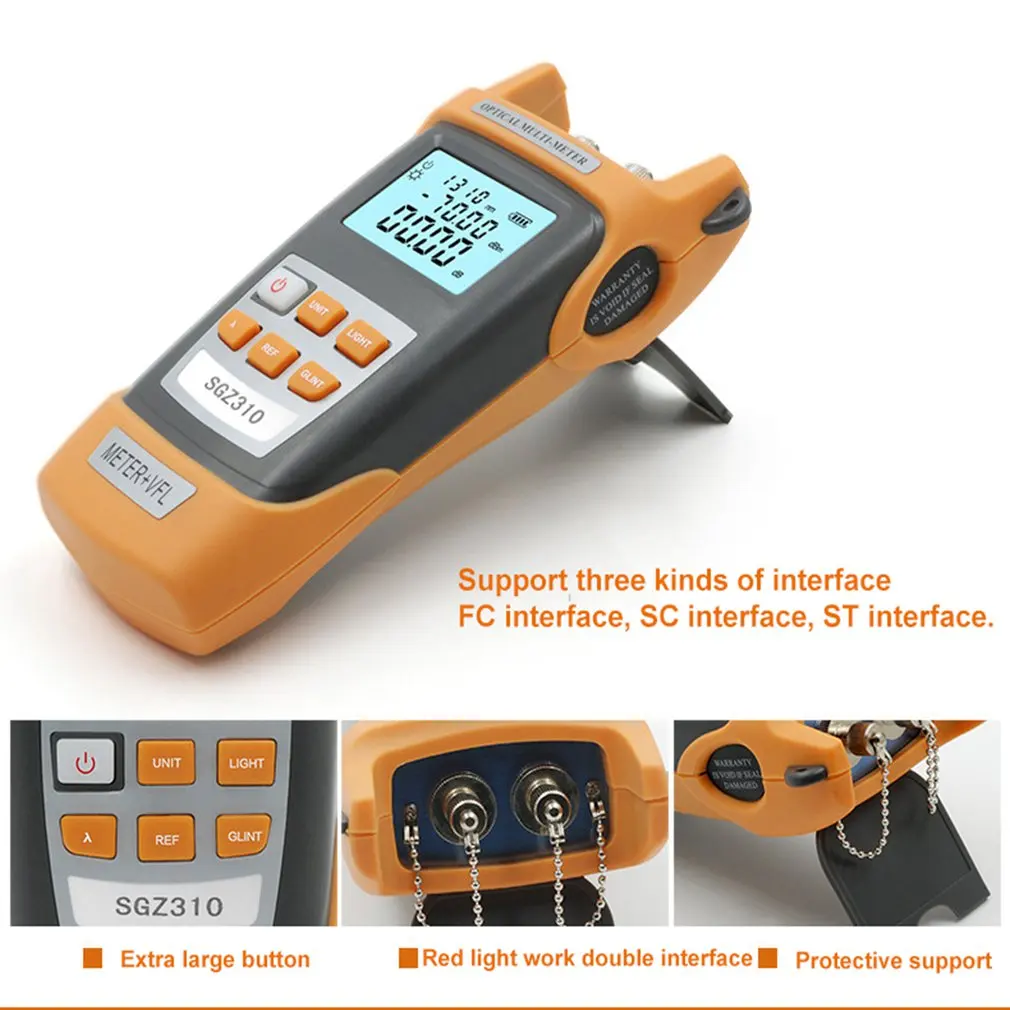

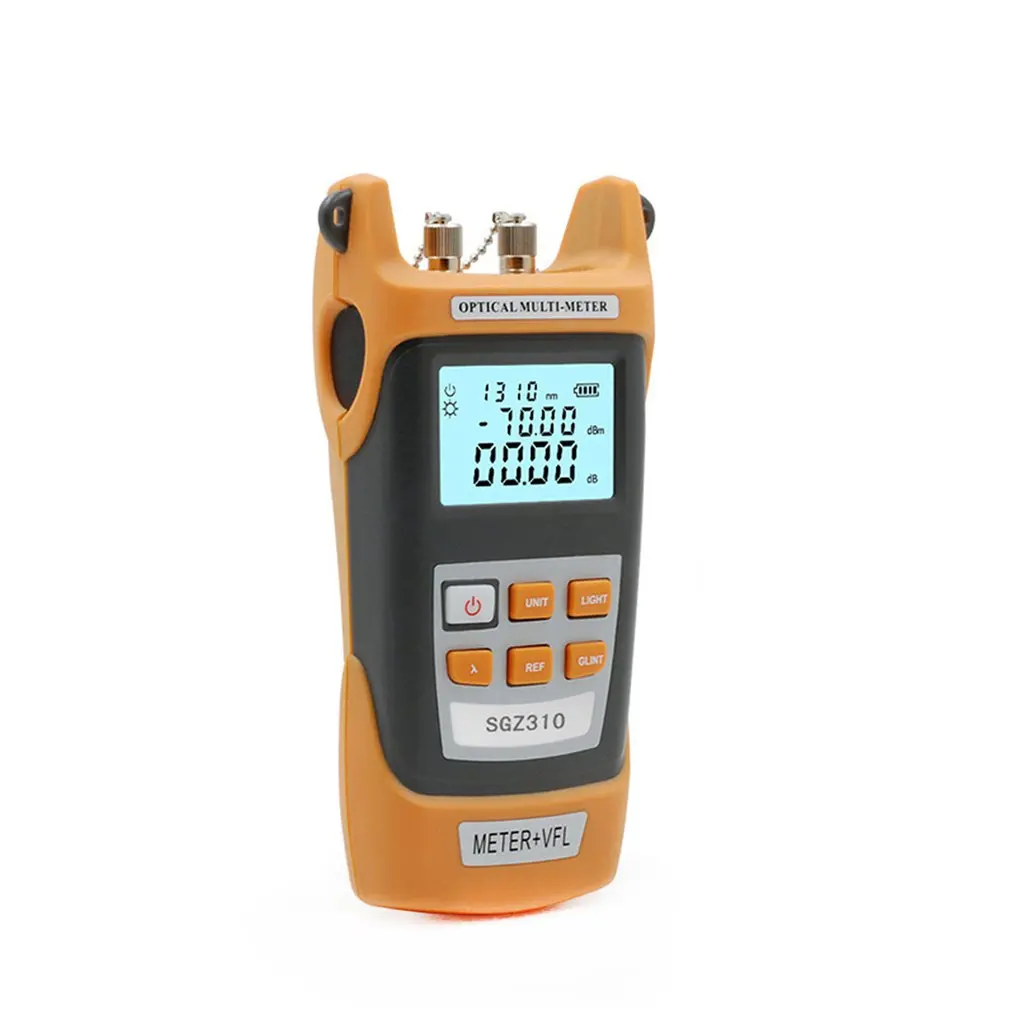

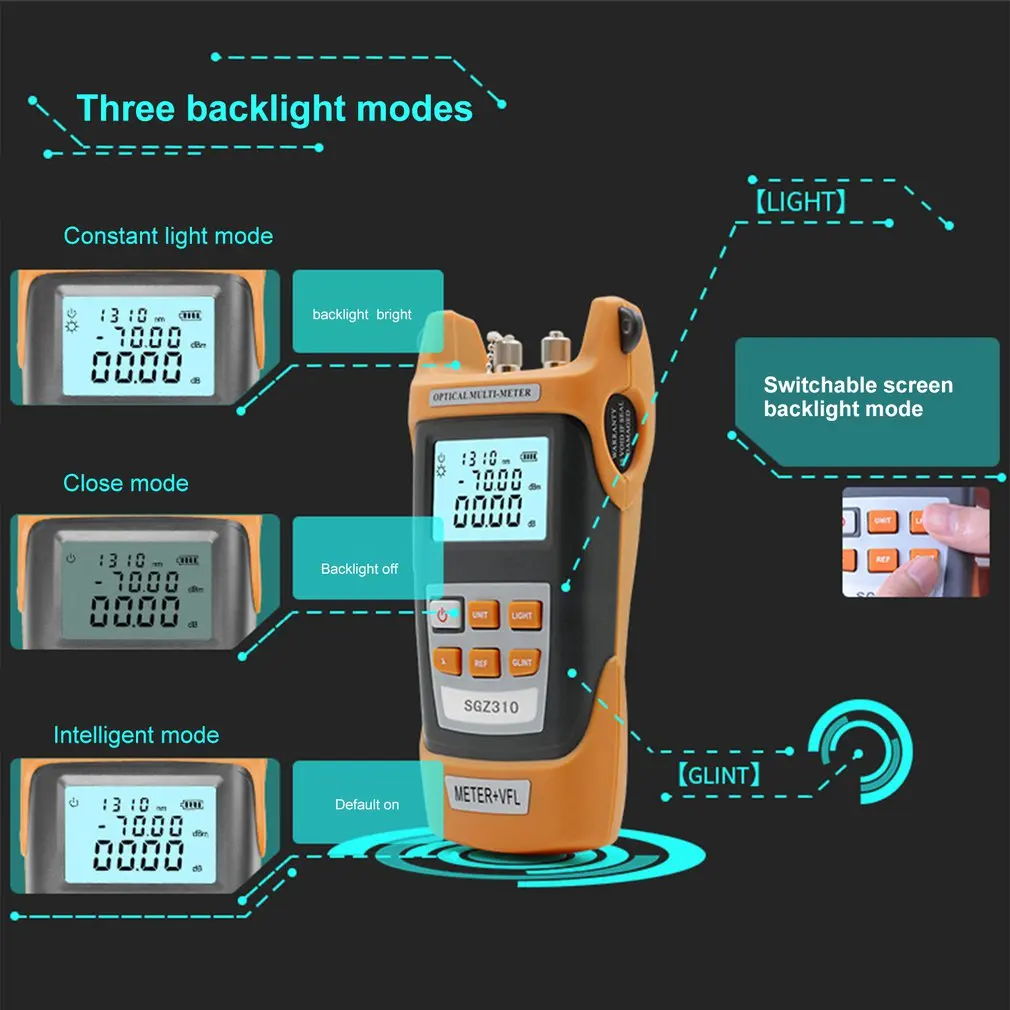

5KM Visual Fault Locator Fiber Optic Cable Tester Red Light Laser Pen LED Lighting -70 - 3dBm Optical Power Meter
sku: 4000081757553
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$31.82
Shipping from: China
Technical Details
| Automatic shutdown time: | 10min |
| Brand Name: | ACEHE |
| Color: | Orange |
| Connector: | FC/SC/ST |
| Detector type: | InGaAs |
| Display resolution: | linear display, 0.1% logarithmic display |

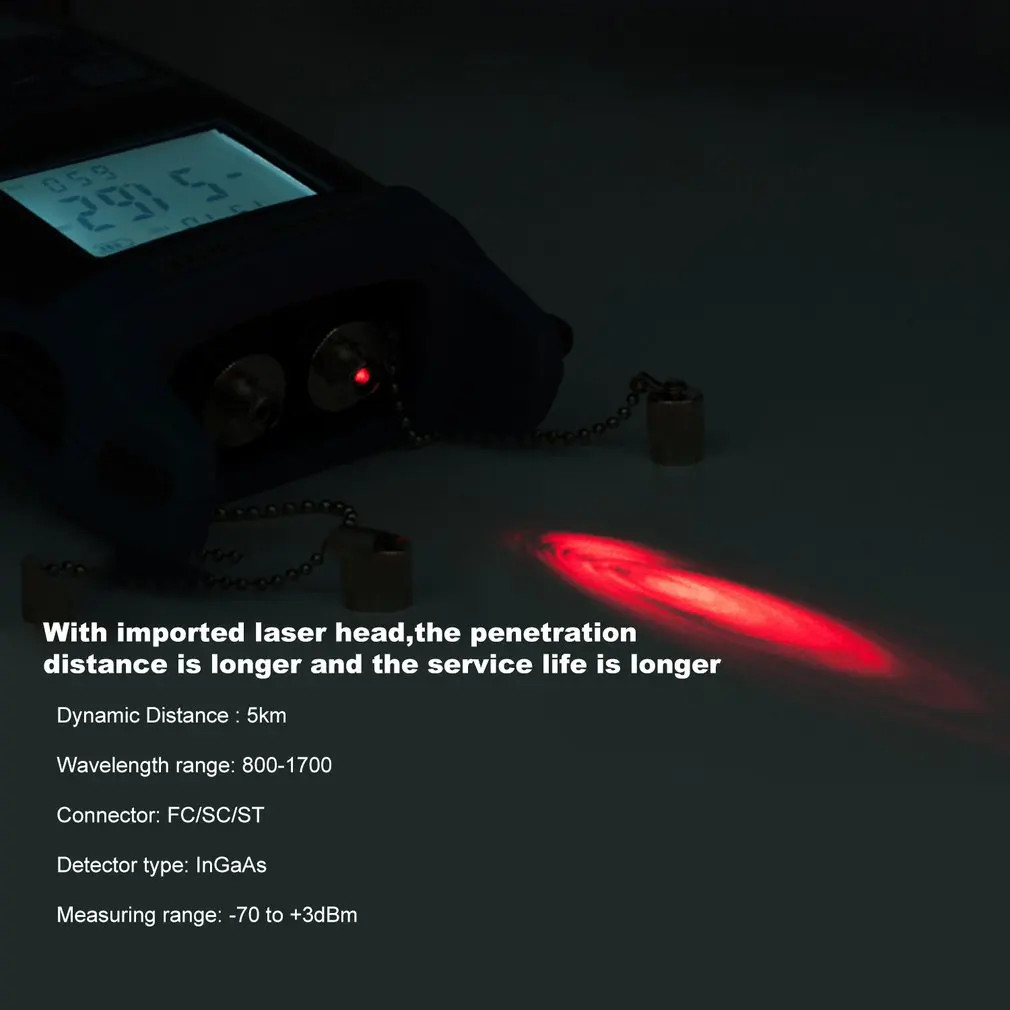

| Dynamic Distance: | 5km |
| Measuring Range: | -70 to +3dBm |
| Model Number: | SGZ310 |
| Operating Temperature: | -20 ~ +70 ℃ |
| Power Supply: | 3 x 1.5V AA Battery(not included) |
| Red Power: | > 15mW |
| Red working wavelength: | 650nm |
| Size: | 190x100x48mm/7.41x3.9x1.87in |
| Standard wavelength nm: | 850 nm, 1300 nm, 1310nm, 1490 nm, 1550 nm, 1625 nm |
| Storage temperature: | -30 ~ +80 ℃ |
| Uncertainty: | ± 5% |
| Wavelength Range: | 800-1700 |
| Weight: | 500g/1.1lb |
