50KHz-200MHz SDR Receiver with Antenna Malachite SDR Receiver

50KHz-200MHz SDR Receiver with Antenna Malachite SDR Receiver
thumb
thumb
thumb
thumb
thumb
thumb
thumb
thumb
thumb
sku: E17569-2
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$85.99
Shipping from: China
   Description
Features:

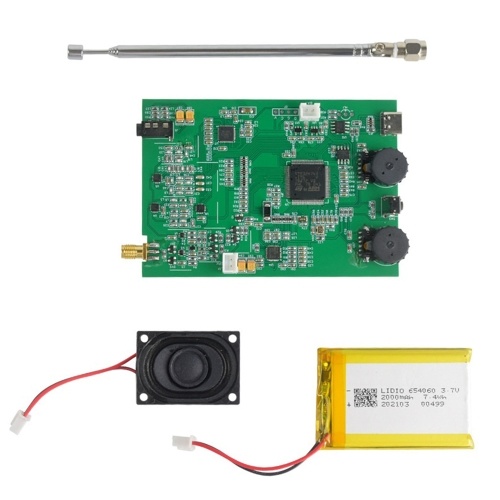

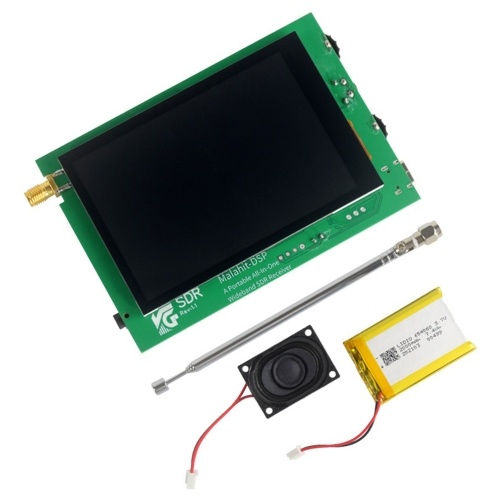

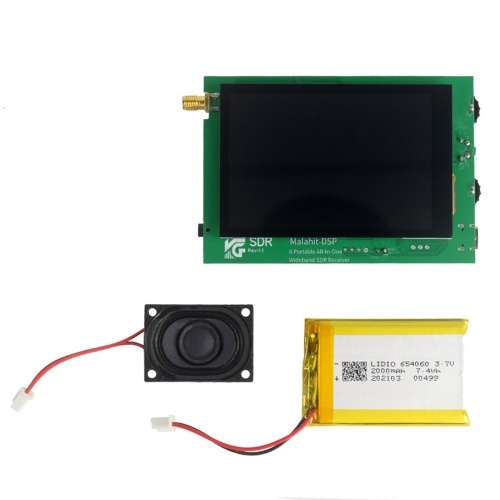

2 types for your option: assembled SDR receiver, or disassembled SDR receiver parts (without shell). Choosing according to practical needs.
The radio is built on the principle of SDR - the function is determined by the loaded software. Frequency range: 50KHz-200MHz.
All types of analog modulation: AM, SSB, NFM, WFM. There is a built-in UHF.
Multiple functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, noise blanker, AGC, equalizer.

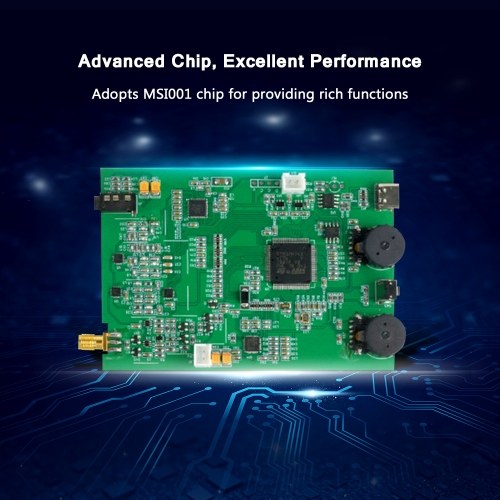

Adopts MSI001 chip for providing rich functions, and the dynamic blocking range is about 85dB. Uses powerful stm32h743 with the clock frequency of 480MHz.

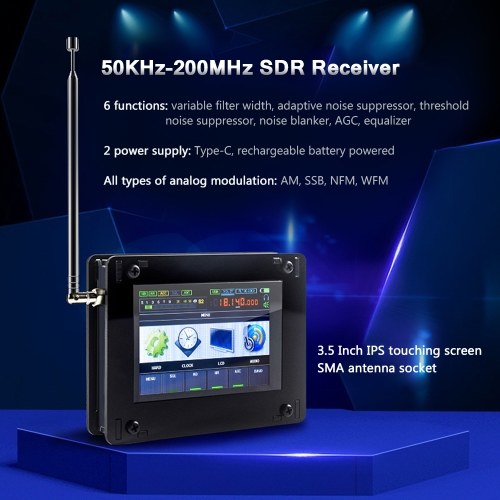

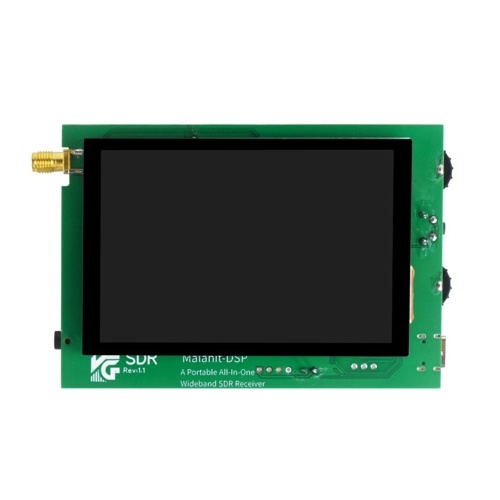

Easy to operate with 3.5-inch IPS touching screen, clear at a glance, with backlight control. And there are 2 encoders with buttons and touching screen.
Dual power supply method: type-C cable (not included), or battery powered - 2000mAh polymer lithium battery included.
The consumption when using headphones is 300mA.
Reception on a built-in telescope or external antenna to improve HF reception on the telescope antenna. And an additional plate with a source follower is developed, which is built in the standard receiver design.
160KHz span, features good extensibility.
Connect to computer via USB, it can transmit CAT, IQ and audio.
High sensitivity: under 250Mhz condition, 0.3μV= 10dB at S/W. The limiting reception sensitivity is almost -130 dBm.
DSP filter adjustment range: 0-10KHz. Adjust to 50Hz-3KHz to get better voice clarity and anti-jamming ability.
SMA antenna socket.
Update the software to realize time display function, please download and install the software according to the instructions.Download Link: https://sharedby.blomp.com/113d4N
Note: Size and color may be slight different because of manual measurement and different light conditions. Thanks for understanding.
   Technical Details
OriginalPrice: 136.99
Warehouse: CN
