50KHz-200MHz 3.5 Inch Touchable IPS Display Screen Zoom Display AM SSB NFM WFM Ana-log Modulation RF DSP SDR HAM Wireless Receiver Backlight Control Function Support UHF Band Wireless Receivers(Built In Battery)

Features:
The receiver is based on the SDR principle architecture and its functions are determined by the loaded software.
Support several analogs modulation: AM, SSB, NFM, WFM.
Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, noise blanker, AGC, equalizer.
The RF front end uses MSI001, and the processor core uses STM32H743 with a primary frequency of 480MHz.

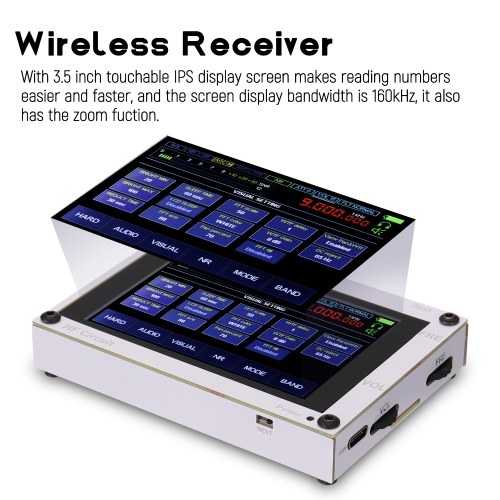

With 3.5 inch touchable IPS display screen makes reading numbers easier and faster, and the screen display bandwidth is 160kHz, it also has the zoom fuction.
The machine supports UHF band, and the operating way includes EC11 pulse encoder and capacitive touching screen two ways.
The built-in LNA is used to improve the dynamic ranges of the receiver and the extended version of improving HF frequency band is designed.
Connect it with the com-puter by USB cable, you can translate the CA-T, IQ and audio to the com-puter.
The backlight can be controlled and use a fine quality sound chamber with a bass diaphragm.
With SMA type antenna socket, the mainboard printed circuit board uses four layer circuit board process, and the circuit impedance matching.
