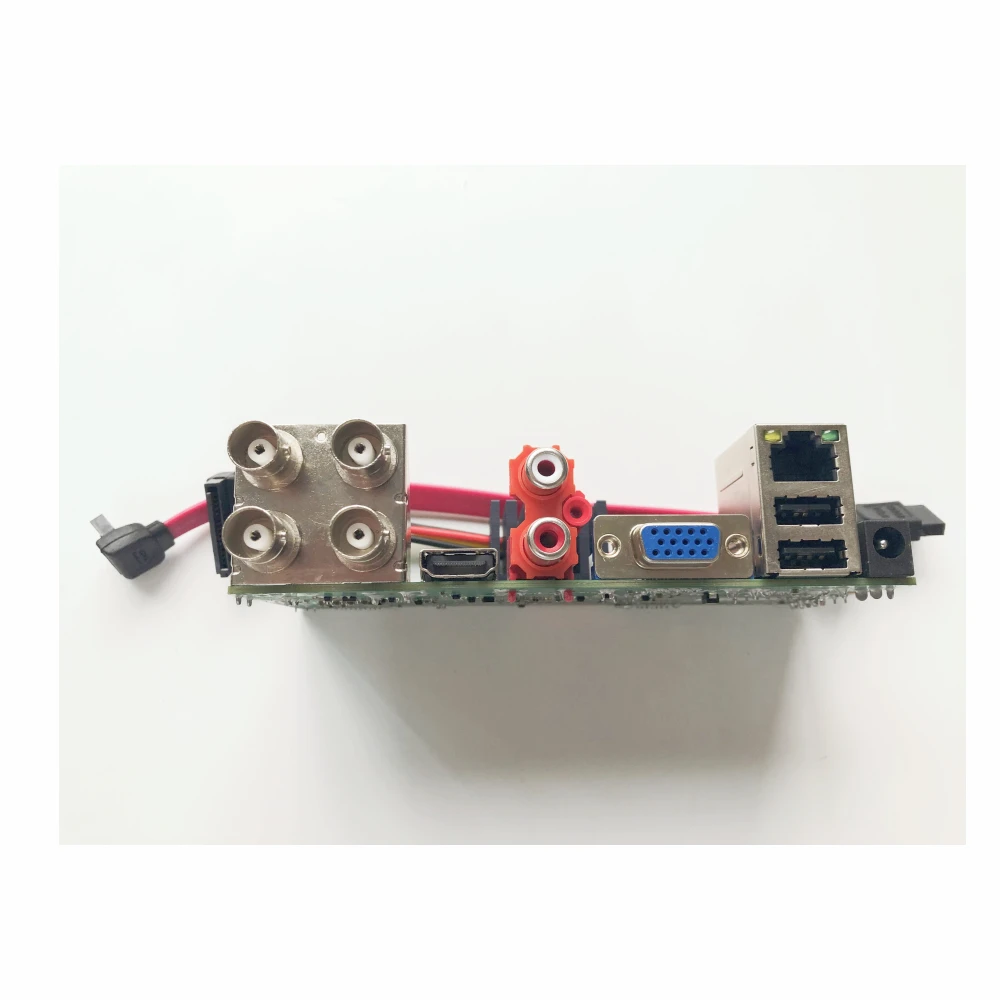

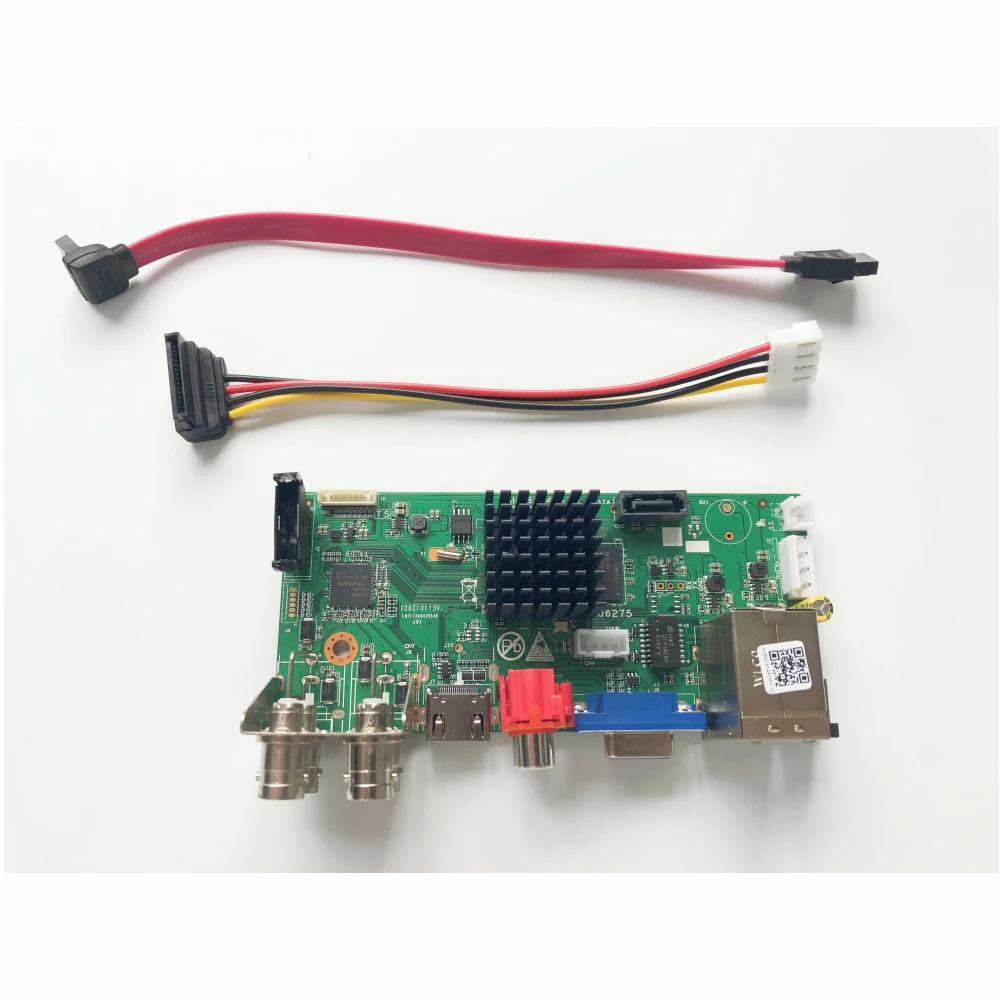

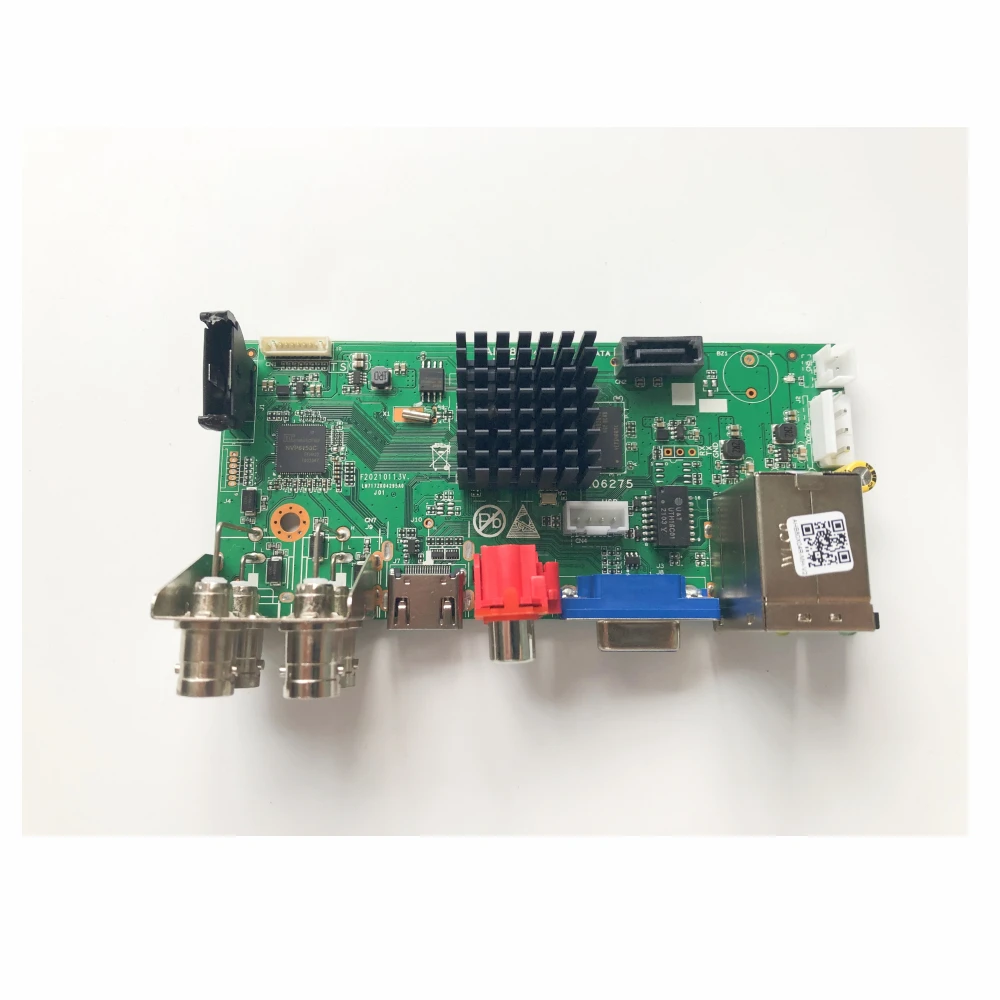

4Channel 5MP-N AHD CCTV Camera DVR System Surveillance Digital Video Recorder PCB for 2MP 4MP 5MP AHD TVI CVI IP Cameras
Technical Details
Alarm Action: | Email Photo |
Audio Compression Format: | G711A |
Audio input: | 1 RCA |
Audio Output: | 1CH RCA |
Backup Type: | Hard Drive |
Brand Name: | SUSIKUM |
Channel: | 4 Channel |
Communication Interface: | RS232 |
Compression Format: | H.265 |
e-CloudP2P: | No |
Function: | Support 2MP, 4MP,5MP AHD Cameras |
Hard drive Interface Type: | SATA |
Hard Drive Size: | 3.5'' |
HDD: | Max 6TB HDD(Not Include HDD) |
IP Mode: | Static IP address |
Item: | 4CH DVR Board |
Model Number: | SN-4CHDVRB501 |
Motion Detection: | Support |
Network Interface: | RJ45 10/100M |
Network Protocol: | HTTP |
P2 View: | XMEYE |
POE: | None |
Power plug: | EU/AU/UK/US |
Resolution: | 5MP-N |
Supported Mobile Systems: | iPhone OS |
Supported Operating Systems: | Microsoft Windows XP |
Technology: | Network |
Two-way Audio: | No |
Video Input Interface: | BNC (1.0 Vp-p, 75Ω) |
Video Output: | 1VGA + 1HDMI |
Video Resolution: | 1080P |
Video Standard: | PAL |
Wireless Security: | WEP |
