45PCS Ajazz Biluo Shaft Blue DIY Mechanical Keyboard Shaft Body With Lubrication

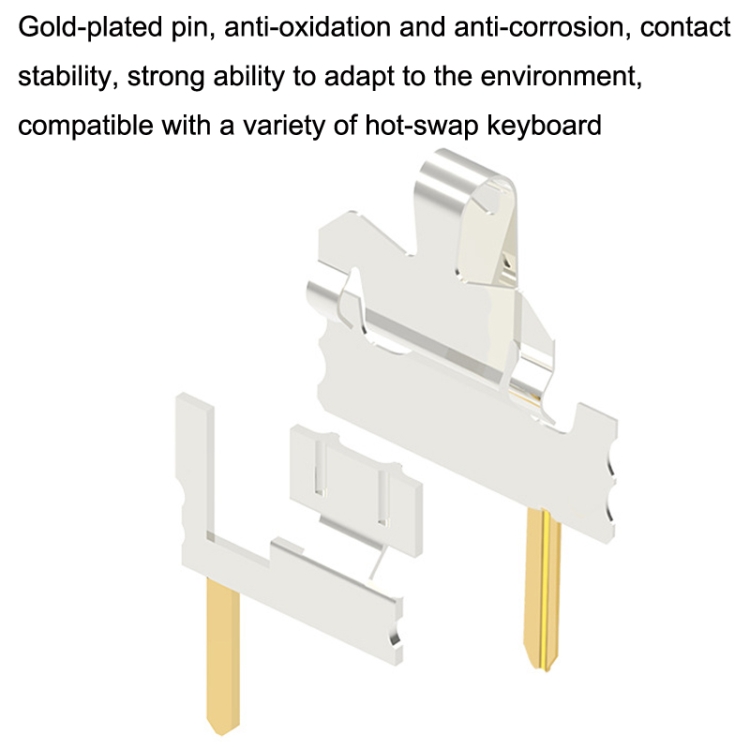

Peach axis:1. Axis type: linear2. Shaft life: 80 million times3. Operating Force: 40gf4. Tactile force: 50gf5. Pre-trip: 2.0mm6. Total Trip: 4.0mm7. Shaft cover: polycarbonate transparent PC material8. Spindle: POM9. Spring: stainless steel SUS 30410. Gold-plated reeds11. Shaft body lower cover: polycarbonate transparent PC material12. Easy-open can design, PET food-grade transparent can body, can be stored for a long time13. With screw-lid can design, open the cover can be enjoyed, not used up can continue to cover the preservation14. Note: There is an axis sample outside each can for the feel of the hand, if you are not satisfied with the feel of the hand please do not open, after Kaifeng can not be re-saleBanana axis (color transparent version) :1. Shaft type: early paragraph shaft2. Shaft life: 80 million times3. Operating Force: 40gf4. Tactile force: 50gf5. Stroke: 4.0mm6. Total Trip: 3.3mm7. Spring length: 21. mm8. Shaft cover: polycarbonate transparent PC material9. Shaft core: POM10. Spring: stainless steel SUS 30411. Gold-plated reeds12. Shaft base: PA66 nylon13. Belongs to the early paragraph shaft, shaft cover on and under the use of different contrast yellow design14. Strong paragraph sense, smooth travel and strong rebound15. Easy-open can design, PET food-grade transparent can body, can be stored for a long time16. With screw-lid can design, open the cover can be enjoyed, not used up can continue to cover the preservation17. Note: There is an axis sample outside each can for the feel of the hand, if you are not satisfied with the feel of the hand please do not open, after Kaifeng can not be re-saleKiwi fruit axis:1. Shaft type: early paragraph shaft2. Shaft life: 80 million times3. Operating Force: 50gf4. Tactile force: 60gf5. Stroke: 4.0mm6. Total Trip: 3.3mm7. Spring length: 21.5mm8. Shaft cover: polycarbonate transparent PC material9. Shaft core: POM10. Spring: stainless steel SUS 30411. Gold-plated reeds12. Shaft base: polycarbonate transparent PC material13. Easy-open can design, PET food-grade transparent can body, can be stored for a long time14. With screw-lid can design, open the cover can be enjoyed, not used up can continue to cover the preservation15. Note: There is an axis sample outside each can for the feel of the hand, if you are not satisfied with the feel of the hand please do not open, after Kaifeng can not be re-saleBlueberry axis:1. Axis type: linear axis2. Shaft life: 80 million times3. Operating Force: 35gf4. Tactile force: 50gf5. Stroke: 4.0mm6. Total Trip: 4.0mm7. Shaft cover: polycarbonate transparent PC material8. Spindle: POM9. Spring: two-stage gold plating10. Gold-plated reeds11. Shaft base: PA66 nylon12. Easy-open can design, PET food-grade transparent can body, can be stored for a long time13. With screw-lid can design, open the cover can be enjoyed, not used up can continue to cover the preservation14. Note: There is an axis sample outside each can for the feel of the hand, if you are not satisfied with the feel of the hand please do not open, after Kaifeng can not be re-saleBiluo axis blue:1. Shaft type: early paragraph shaft2. Bottom pressure: 65gf3. Trigger pressure: 50gf4. Paragraph start: 2.0mm5. Total trip: 2.0mm6. Material: PC7. Spindle: POM8. PC material, high strength spring can increase stability, gold-plated pin, double gold contacts9. Long tap life, smooth touch, quick response10. Gold-plated reeds for contacts11. Gold-plated pin, anti-oxidation and anti-corrosion, contact stability, strong ability to adapt to the environment, compatible with a variety of hot-swap keyboard12. The shaft adopts high and light spring, and adopts double gold contact technologyMountain haze axis green:1. Axis type: linear axis2. Trigger pressure: 45gf3. Bottom pressure: 55gf4. Paragraph start: 2.0mm5. Total trip: 2.0mm6. Material: PC7. Spindle: POM8. Gold-plated reeds for contacts9. The shaft adopts high and light spring, and adopts double gold contact technologyMechanical shaft body replacement step:1. Remove the key cap with the key extractor2. Use the key extractor to pull out the shaft3. The shaft alignment installation position (note that the needle can not be crooked)4. Place the new shaft on the clamp5. Press lightly on the light axle stop6. Install the key cap
