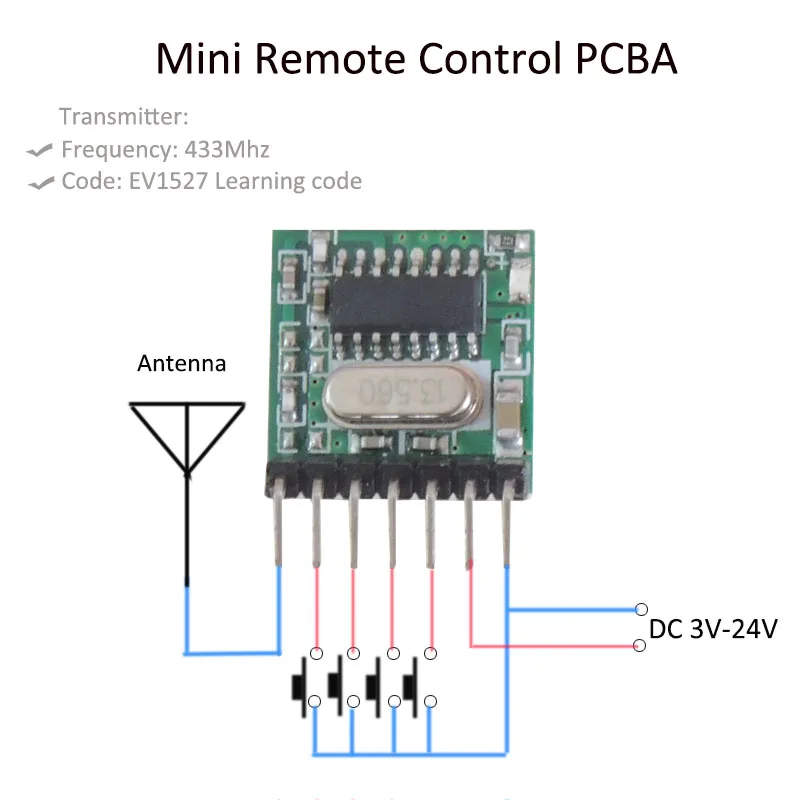

433Mhz Wireless Transmitter and Receiver Module Learning Code EV1527 Decoding Module 4CH output With Learning Button DIY remote
sku: 33005839512
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$0.93
Shipping from: China
Technical Details
| Amount of storage remote controls: | 25 pieces |
| Brand Name: | Diese |
| Channel: | 4 |
| Channels: | 4 Channels |
| Frequency: | 433 MHz |
| Frequency Band: | -0.2MHz , +0.2MHz |

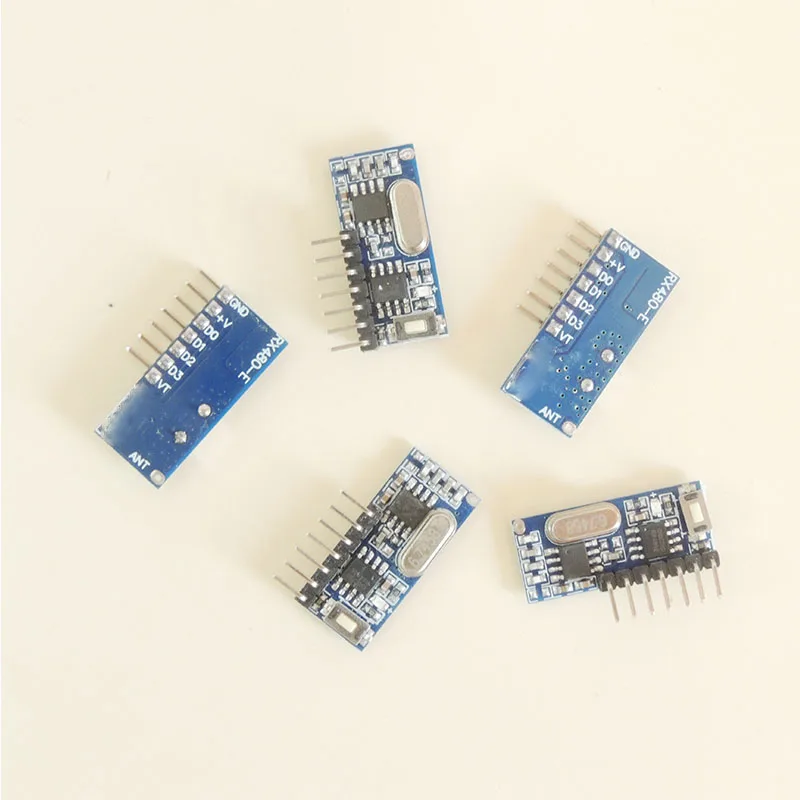

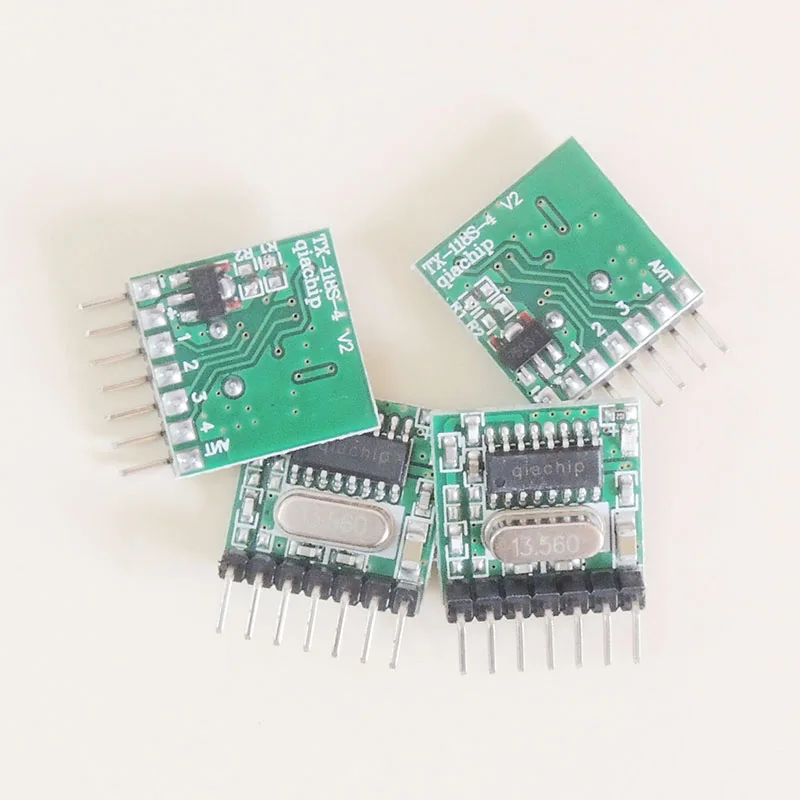

| Model Number: | RX480E,TX118SA-4,receiver and transmitter |
| Output Current: | 10mA |
| Package: | Yes |
| Quiescent Current: | less than 5MA |
| Rate of fire: | maximum: 10KB / S |
| Receiver Size: | 28*12.3*6 (mm) |
| Receiver working voltage: | DC 3.3~5V |
| Receiving Range: | above 15 meters (Open space) |
| Receiving sensitivity: | -108dB |
| Remote operating mode: | Momentary Mode / Toggle Mode / Latched Mode |
| RF Operating mode: | ASK superheterodyne wireless reception |
| Support APP: | No |
| Support encoding: | EV1527 Leaning code |
| Transmit deviation: | +/- 7. 5KHZ / narrow-band emission |
| Transmitter Size: | 18*18*6 (mm) |
| Transmitter working voltage: | DC 3V-24V |
| Transmitting power: | 11dbm |
| Use: | Electric Door,Lighting,Automated curtains,Switch,Universal |
| Wireless Communication: | RF |
| Working Temperature: | -25~+75 degrees |
