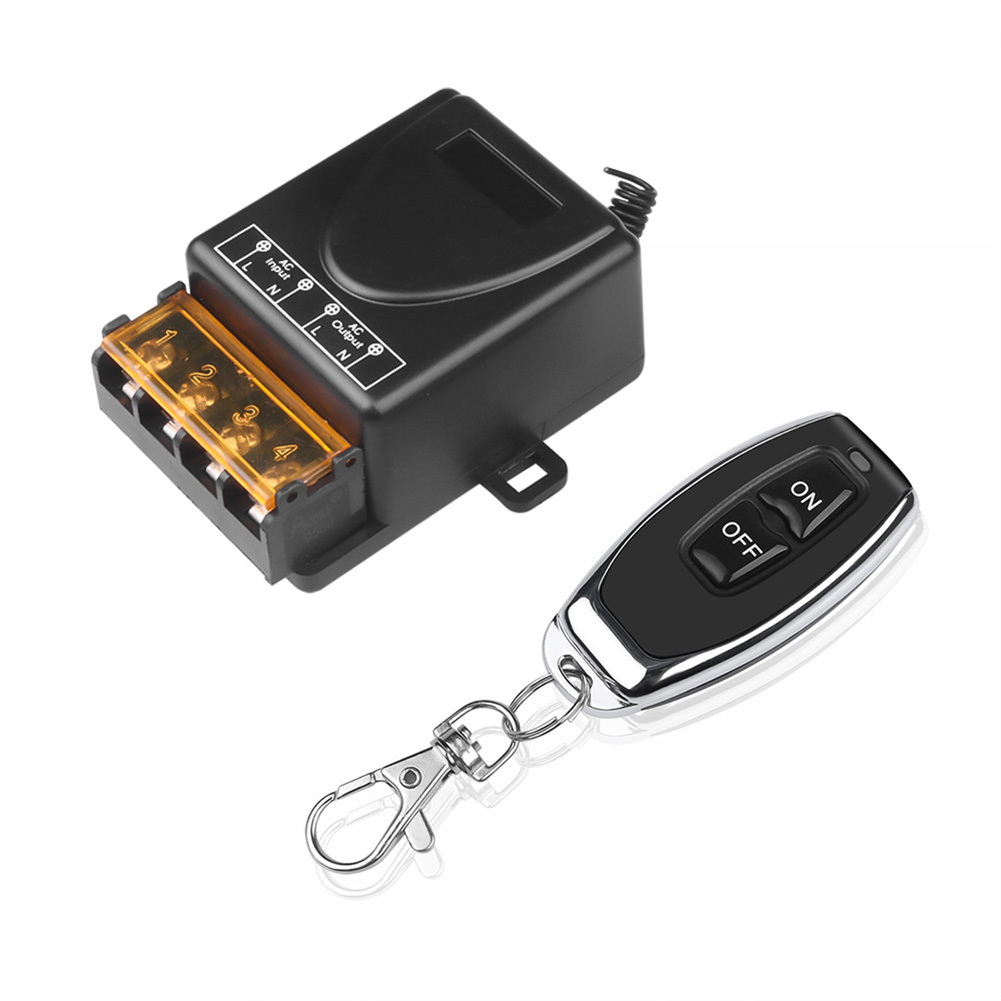

433MHz Relay Wireless Remote Control Switch Light ON OFF Switch Transmitter, 501 Original

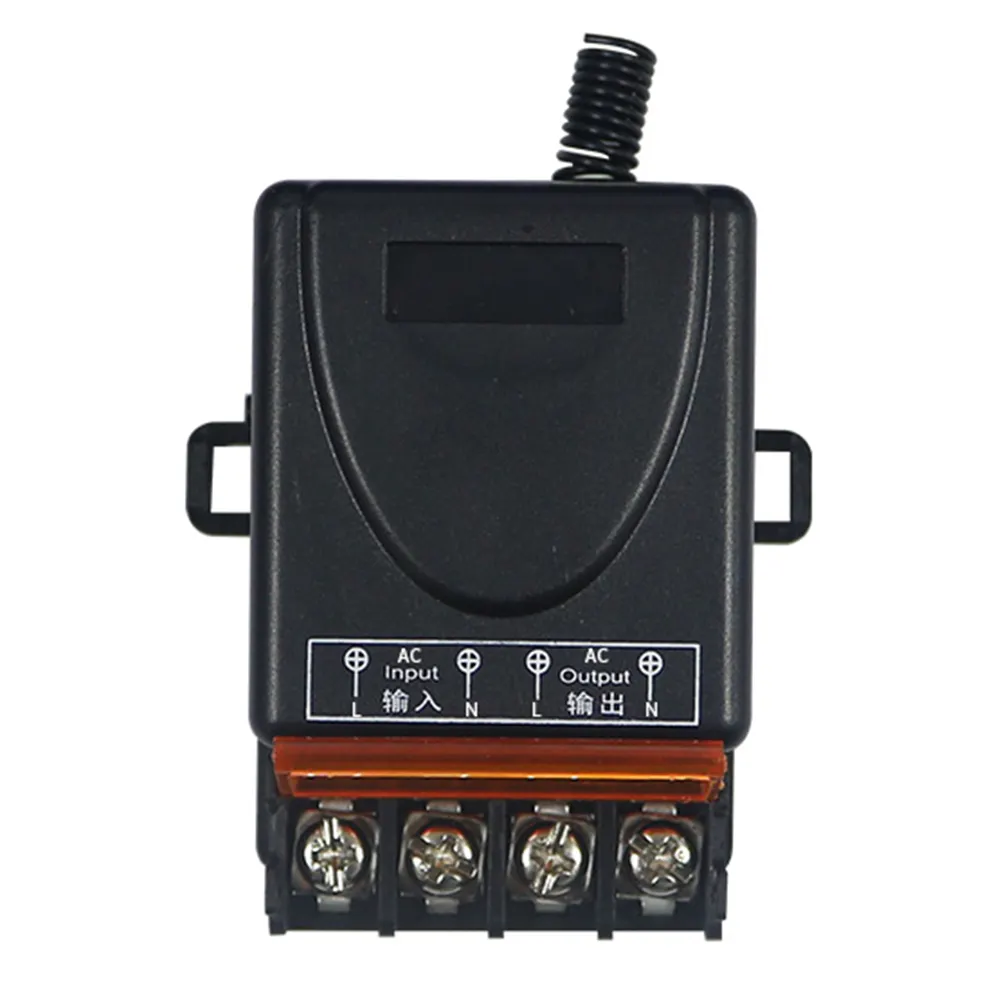

433MHz Relay Wireless Remote Control Switch for Light Door Garage 60V-280V ON OFF Switch Transmitter Receiver Remote ControllerFeature:The switch power supply with high efficiency, green and low energy has wide power range (AC85V-250V), no static heating and good stability.Using advanced superheterodyne receiving technology and intelligent MCU, it has many advantages, such as good stability, strong anti-interference ability, multi-function and so on.At the same time, SPE high-power relay with good quality in China is selected to enhance the load capacity and long service life.Specification:Product model: AK-YL-AC02AProduct size: circuit board 64 * 40 * 22mm/2.5*1.57*0.86in; Including shell 105 * 51 * 30mm/4.13*2*1.2inProduct frequency: 433MHzWorking voltage: AC85-250VReceiving distance: > 50m (more open space) with high-power remote control, the distance is longerWorking mode: inching, interlock, self-locking, delayMaximum load: 3000W / light bulbInductive load: 1500W / motor / water pumpQuiescent current: < 10mAProduct weight: 68.5gApplication: all kinds of lamps, remote control fans, remote control appliances, remote control plug and so onFunction mode description:Inching mode: press the learning button once and the LED flashes once,Press the a key of the remote control, and the LED flashes three times, indicating that the inching mode learning is successfulSelf locking mode: press the learning button twice and the LED flashes twice,Press the a key of the remote control, and the LED flashes three times, indicating that the self-locking learning is successful. At that time, press the a key once to pull in the relay, and then press the a key once to turn off the relayInterlock mode: press the learning button three times, and the LED flashes three times,Press a key once, the LED indicator will flash three times, and then press B key again, the LED will flash three times, indicating that the interlock learning is successful. At that time, press a key once, the relay will be closed, and then press B key, the relay will be short on.Delay function description:Delay five seconds learning method: short press the learning button four times, the LED flashes four times, press and hold the remote control a key, the LED flashes three times, it means that the learning is successful, press the a key, the relay will automatically disconnect after five secondsDelay ten seconds learning method: short press the learning button for five times, the LED flashes for five times, press the a key, the LED flashes for three times, it means that the learning is successful, press the a key once, the relay will automatically disconnect after 10 secondsDelay 15 seconds learning method: short press the learning button for six times, LED flashes for six times, press the a key once, LED flashes for three times, indicating that the learning is successful, press the a key once, the relay will turn off automatically after 15 secondsClear code operation instructions:Long press the learning button for about 8 seconds, and the indicator light will flash to show that the code clearing is successful. Warm prompt: to switch any working mode, the code must be cleared before learningPrecautions for controller use:1. High voltage danger, careful electric shock, non professional do not operate, please strictly follow the wiring diagram wiring, otherwise the consequences will be borne.2. No live wiring is allowed. The wiring must be done without power failure. And the wiring must be firm and not loose to prevent fire. 3. After connecting the line, the terminal cover must be covered.4. Before turning on the power supply, carefully check whether the connected circuit is correct.5. After power is turned on, it is forbidden to touch any metal or non-metallic parts of the controller by hand.6. To learn the code, please use high insulation items, such as plastic bars, to press the learning key. Do not touch directly with your hand in case of electric shock and injury to the person.7. This product is switch power supply, PCBA is charged, it is strictly forbidden to open the shell for private maintenance. If you have a product failure, please contact us immediately.Note:Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!Please allow 1-2cm measuring deviation due to manual measurement.
