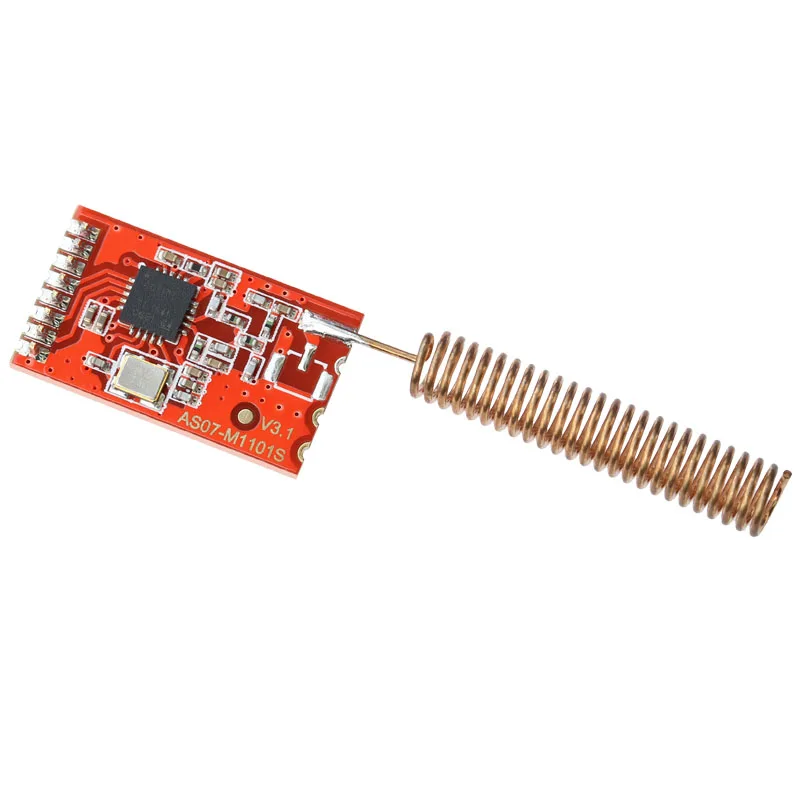

433MHz CC1101 Wireless rf Module 10mW 1km SPI rf Transmitter and Receiver DIP/SMD package with spring antenna
sku: 32958656763
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$9.28
Shipping from: China
Technical Details
| Brand Name: | Fanakm |
| Communication Interface: | SPI |
| Measured distance: | 1000m |
| Model Number: | AS07-M1101S |

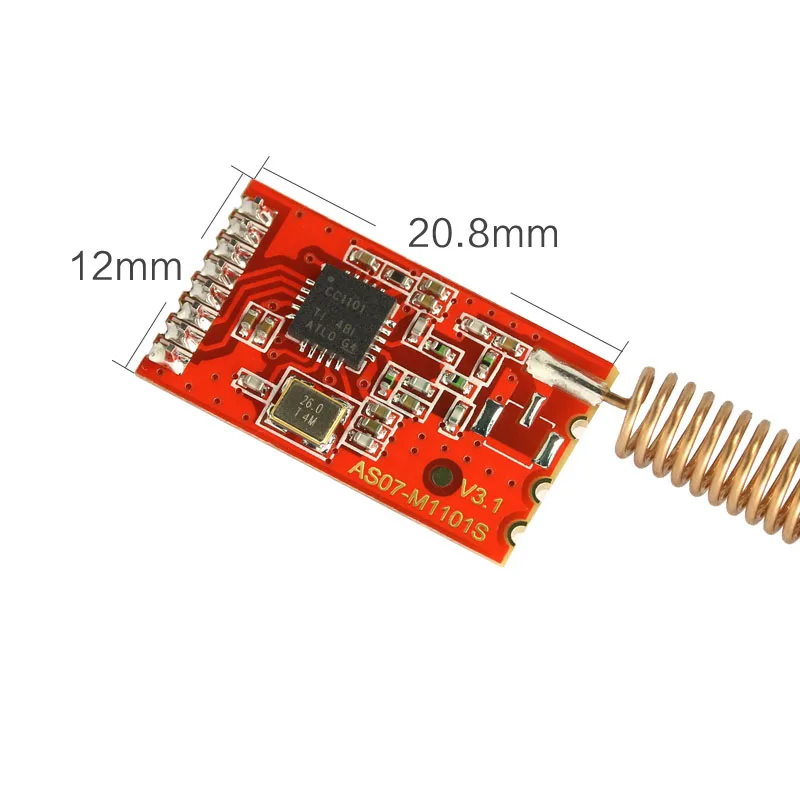

| Module size: | 20.8*12.2mm |
| Operate Frequency: | 400M~470MHz |
| RF chip: | CC1101 |
| Sending current: | 29mA@10dBm |
| Sending power: | Maximum 20dBm |
| Supply Voltage: | 1.8 ~ 3.6V DC |
| Turn off current: | 0.5uA |
| Working Frequency: | 433mHz |
