3X KA2284 Audio Level Meter Level Indicating Suit LED Indicator DIY Kit for

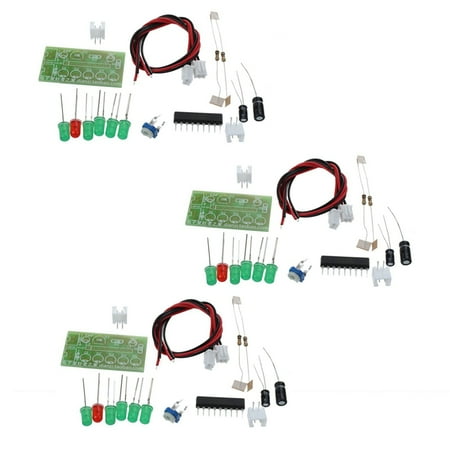

a wide operating voltage (3.5V--12V) The ALC circuit without telescoped diode or transistor Brightness level in amplitude can be adjusted Chips: KA2284 PCB Board Size: 40X19mm This is an Electronic DIY KIT that utilizes the KA2284 some soldering experience is required. The PCB ( Circuit Board) is provided with the DIY KIT and it needs to be soldered hence the name DIY KIT. All required electronic parts are provided refer to the images for more details. All resistors are 0.25w metal film The is for illustration . Package including: All components to this kit 3 X PCB Board (color will be shipped out by randomly ) 6 X XH2.54-2P connectors 6 X XH2.54-2P Line 3 X 100R Metal Film Resistor 3 X 10KR Metal Film resistor 3 X 2.2UF 3 X 10UF 3 X Blue&white Potentiometer 3 X KA2284 15 X 5mm diffused green 3 X 5mm diffused RED Note: Random color t accept the specified color. Only the above package content other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
