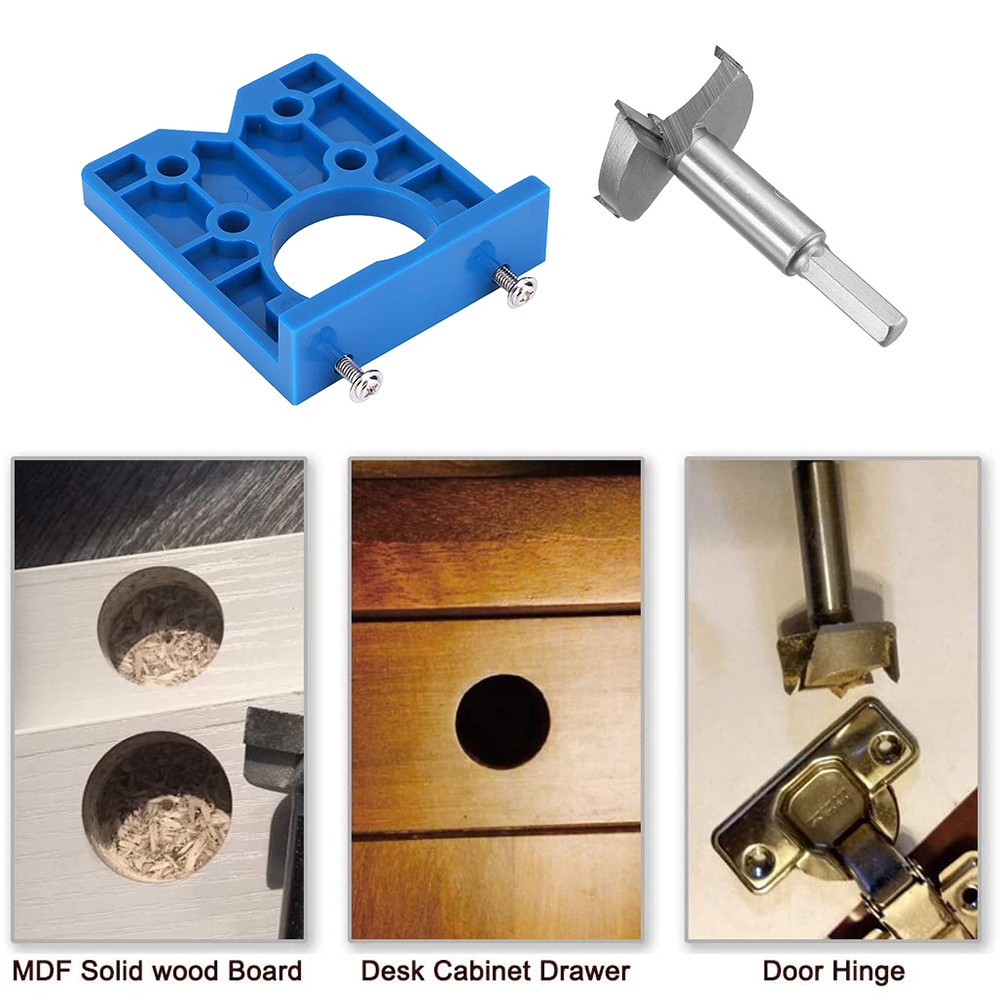

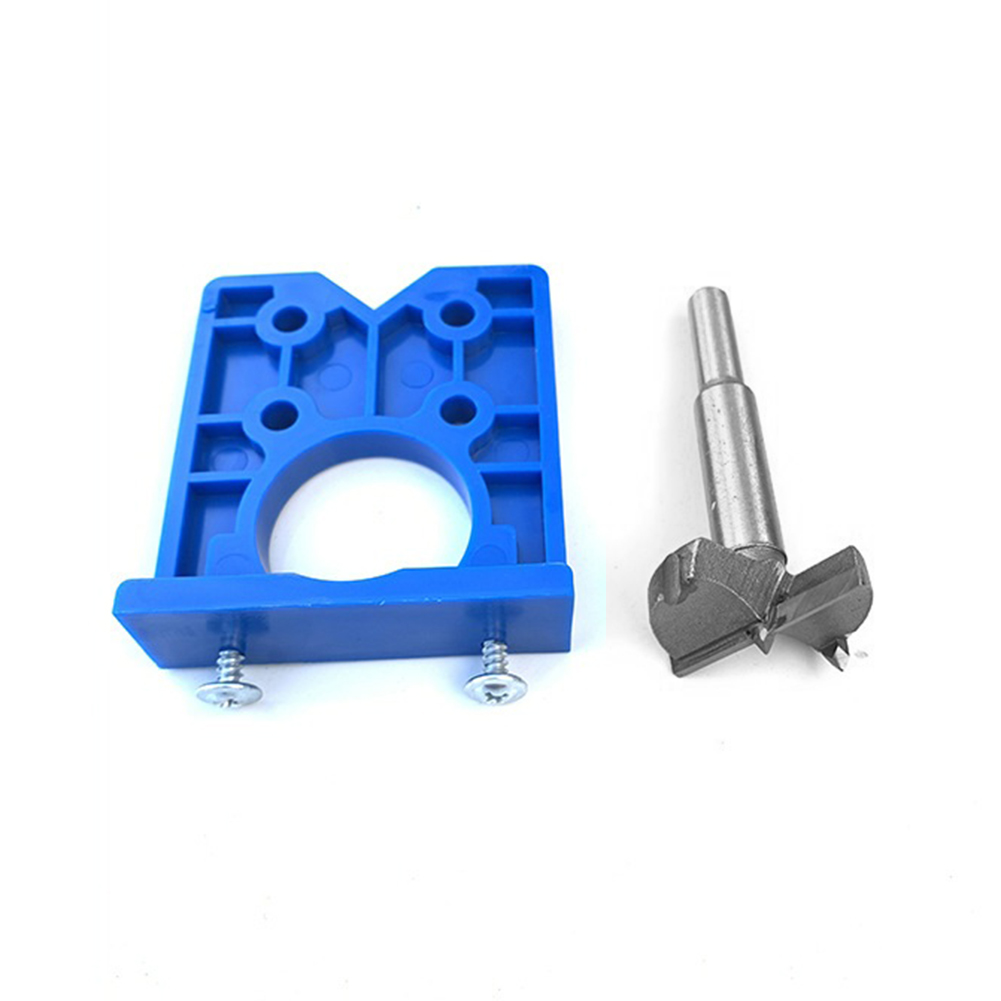

35mm Hinge Drilling Jig Concealed Hinge Hole Drilling Guide + Drill Bit Set, 501 Original

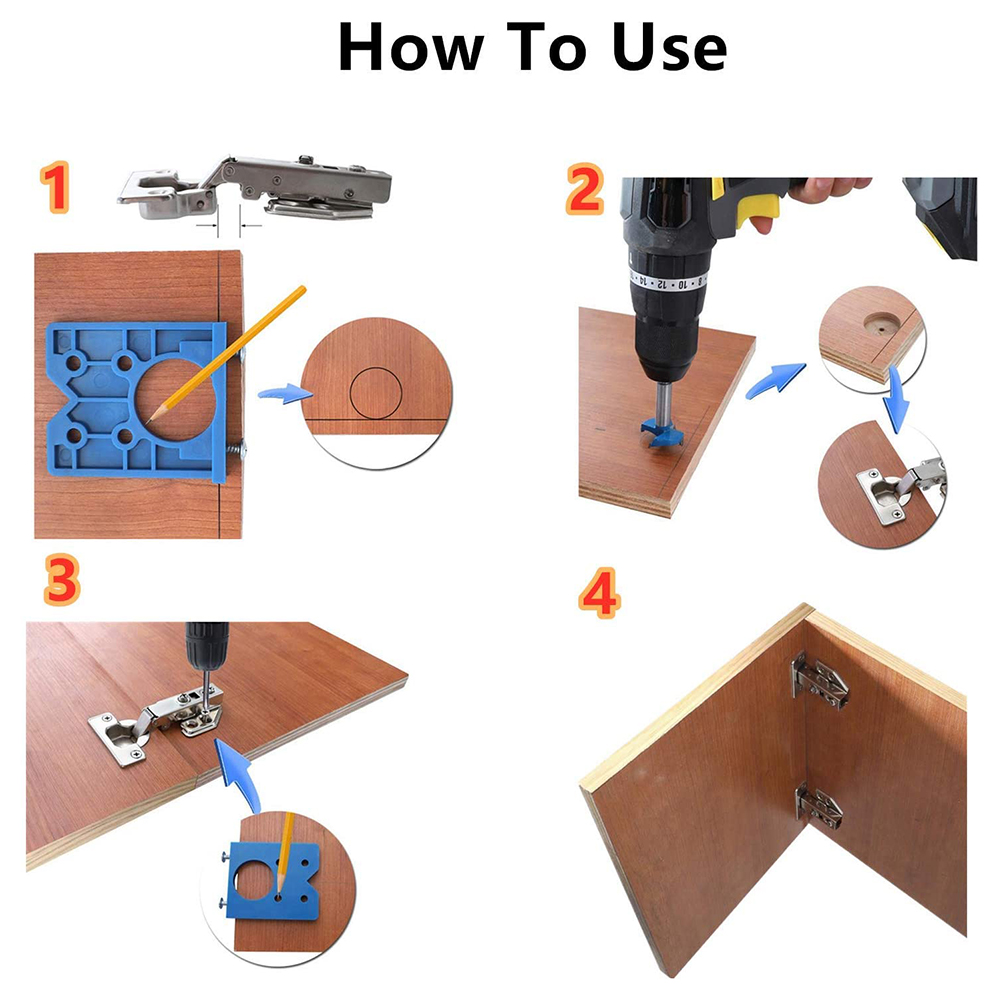

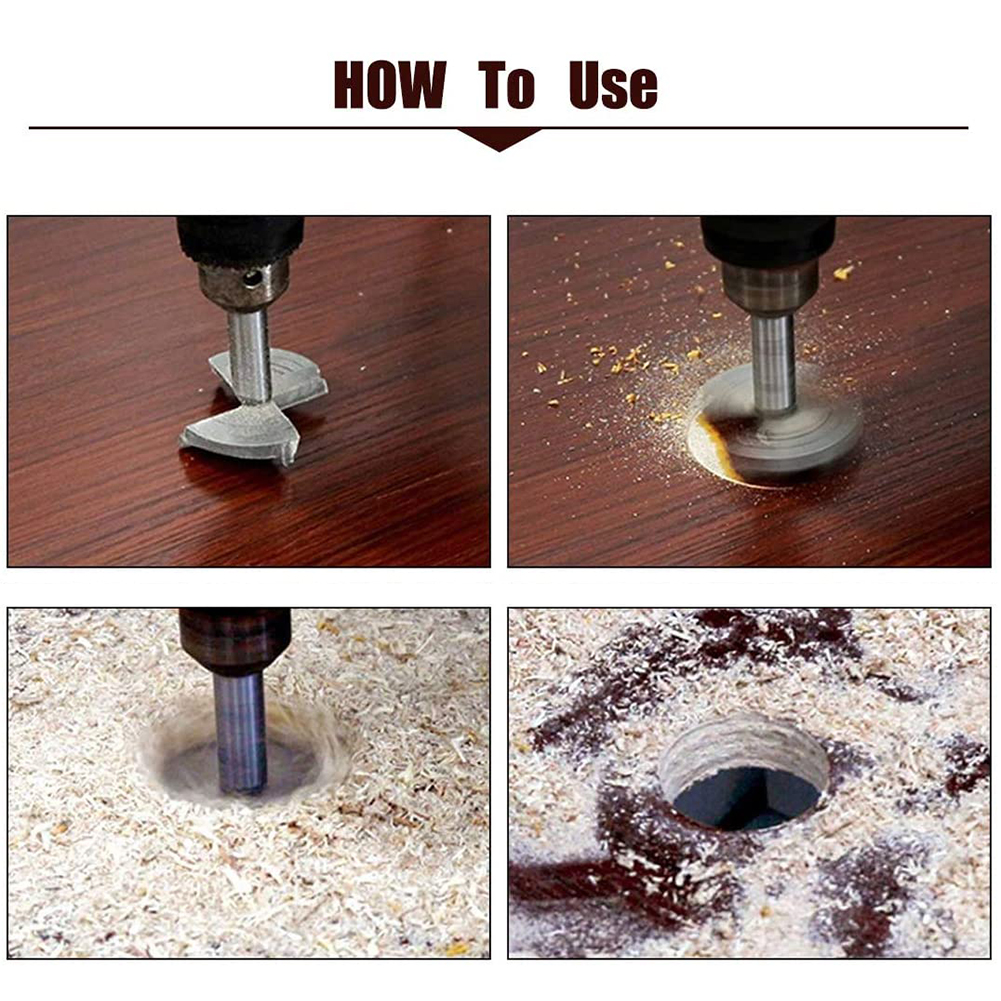

35mm Hinge Drilling Jig Concealed Hinge Hole Drilling Guide Locator + Drill Bit Set Woodworking Hole Opener Door Cabinet Accessories ToolFeature:1. The concealed hinge drilling jig is made of high impact polycarbonate, which is very suitable for drilling.2. The drill bit drills clean holes in hard wood.3. The X-wing design provides you with high visibility and precise cutting.4. Very suitable for cabinet hinges and mounting plates.5. Suitable for drilling machines, pistol drills, bench drills, vertical drilling machines, handheld electric drills, vertical electric drilling machines and mobile belt magnetic drilling machines.Specification:Material: ABS plastic, carbon steelDrill bit color: Silver, Blue, Red (Optional)Drill bit size: 35mm/1.38\"Guide size: 66*77mm/2.60*3.03\"Instruction:1. Determine the position of the hinge cup with the short board facing upwards, fix the screws on the edge of the board, and then drill holes in the hinge cup.2. Draw the corresponding center line on the other board, with the short board facing down, and the center line aligned with the inverted triangle, and then drill the hinge seat positioning hole.3. Install the hinge.4. Adjust the maximum distance of the hole opener to 0-30mm.Note:1. There may be slight size deviations due to manual measurement, different measuring methods and tools.2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.1 X Hole Drilling Guide1 X Drill Bit
