3-Gear Waterproof Heated Handlebar Grips Cover Winter Warmth Electric Grip, 501 Original

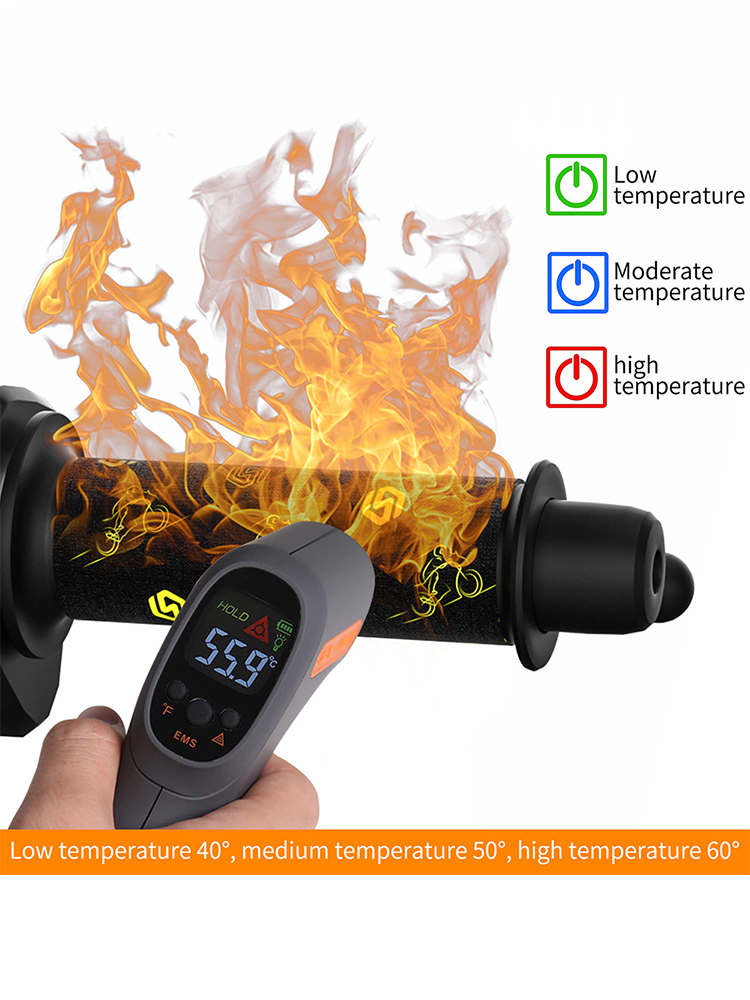

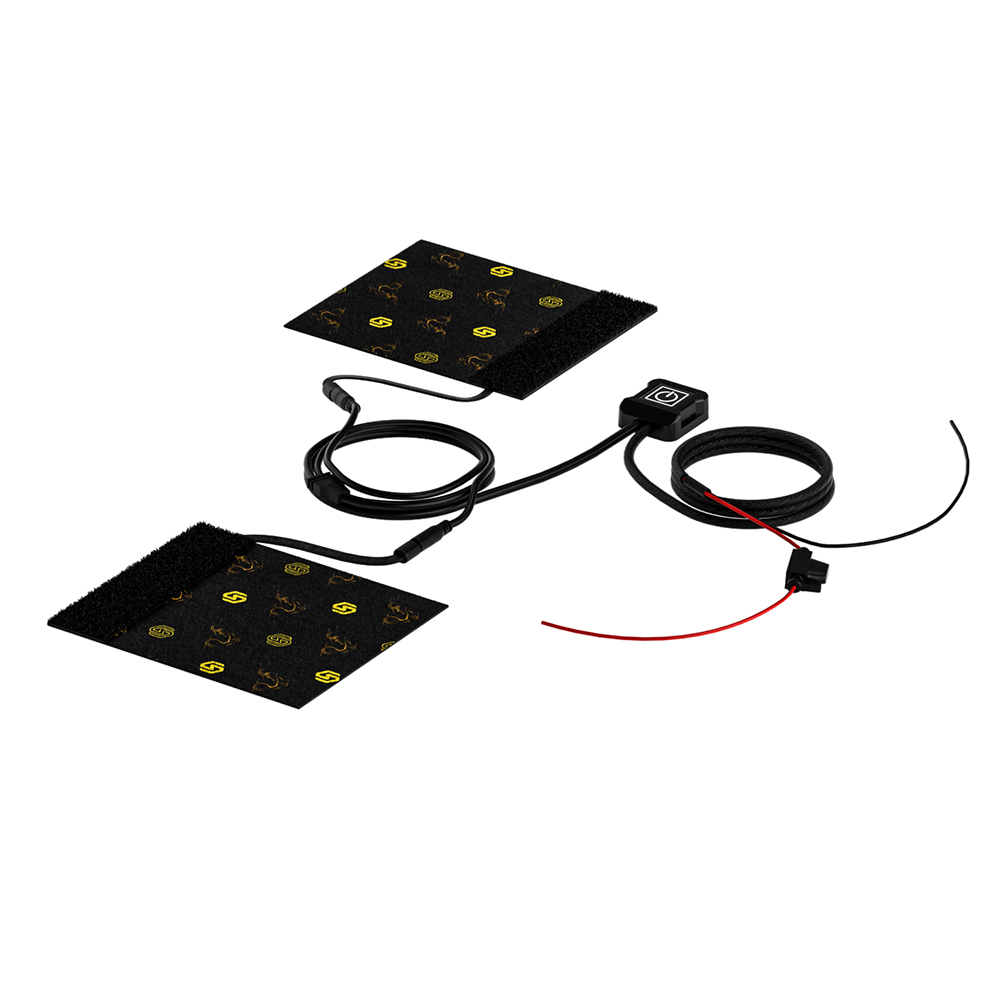

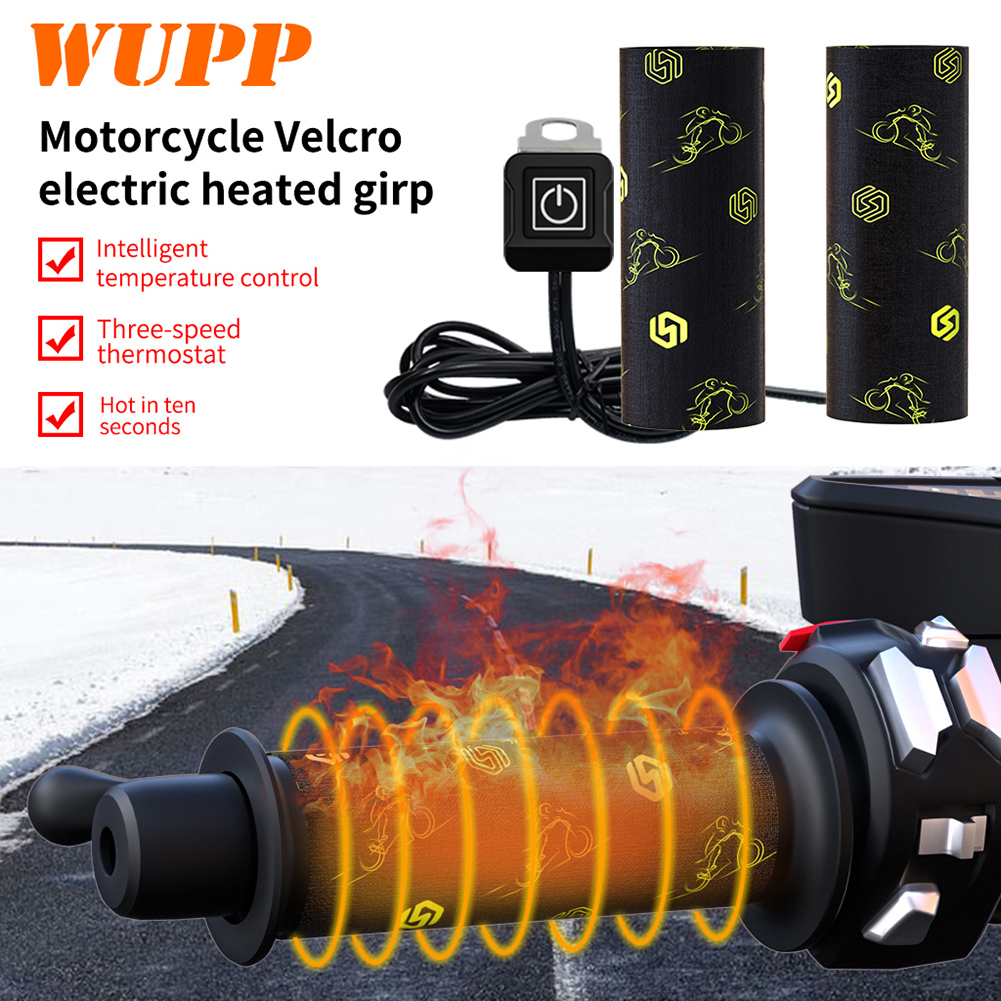

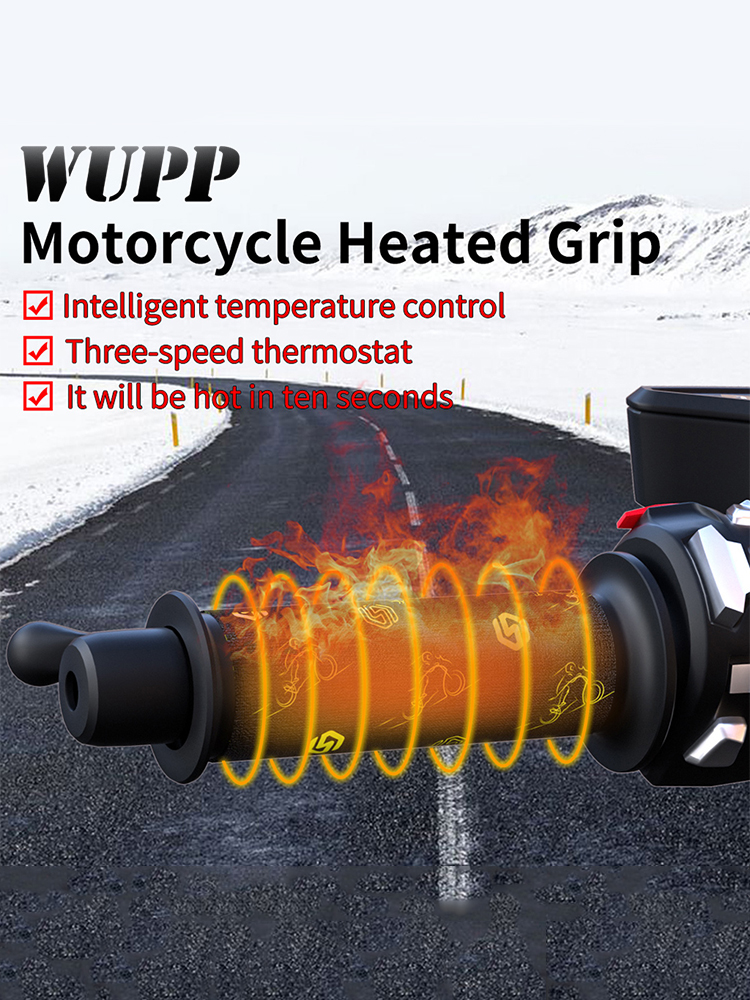

12V 3-Gear Waterproof Motorbike Heated Handlebar Grips Winter Warmth Motorcycle Electric Heating Hand Grip Covers Motorcycle AccessoriesFeature: Kevlar material, faster heat up, more uniform heat, after 8000 times wear test success.Built-in intelligent temperature control chip, three adjustable temperature, intelligent temperature control more secure.10 seconds fast heat, heating area is large.The heating piece is fixed by self adhesive sticker, convenient and fast.IP67 waterproof level, even if the switch and handle set soak in water can work normally, handle set need to clean, just unplug, you can wash, very convenient.Specification: Name: Electric Handlebar GripModel: CS-974A1Net weight: 125gGross weight: 150gPacking size: 12.1*3.6*16.1cmInput voltage: DC12VWire length: 108cm(heater to switch), 146cm (switch to electric door lock)Operating temperature: -30°C - +100°CProduct power: high-grade: 20W, mid-range: 15W, low-range: 10WProduct material: composite fiber heating wire + Kevlar wear-resistant cloth, (L bracket) stainless steelInstallation: 3m adhesive fixed, L bracket mirror holder fixedWiring method: red connect positive, black connect negative (connected to the reverse light does not light, only heat)Operating Instructions: Power on: red light blue light green light each flashing once and then extinguished.Standby: red light breathing flashing state, the temperature reaches a certain temperature automatically becomes blue light.Working state: the light is always on (high-grade: red light is always on, mid-range: blue light is always on, low-range, green light is always on)Click on the key: switch gears.Special Note: (1) Please select the appropriate gear according to the ambient temperature. In low temperature conditions, when you cannot accurately perceive the temperature of the electric handlebar set in time due to hand stiffness, please use the low or medium gear first to prevent high temperature burns.(2) This product is only suitable for motorcycles with 12V battery. Please read the installation diagram carefully before installation, incorrect wiring will lead to damage to the parts.(3) This product can only be installed on the motorcycle handlebar power use, you can use the battery to test whether the product is properly powered before installation.(4) It is strictly forbidden to work with electricity when not riding (empty burn), in order to prevent damage to the original rider due to high temperature of the electric handlebar set.(5) Wiring is recommended to connect the electric door lock line, most models are black positive, green negative, the specific situation is recommended to use a multimeter to measure.(6) Positive and negative terminals are reversed, the switch does not work, and the electric heater is directly heated.Note:1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!2. Please allow slightly measuring deviation due to manual measurement.Package Content:2 X Heated Handlebar Grips Covers5 X Ties1 X L-Shaped Stainless Steel Bracket1 X 3m Adhesive
