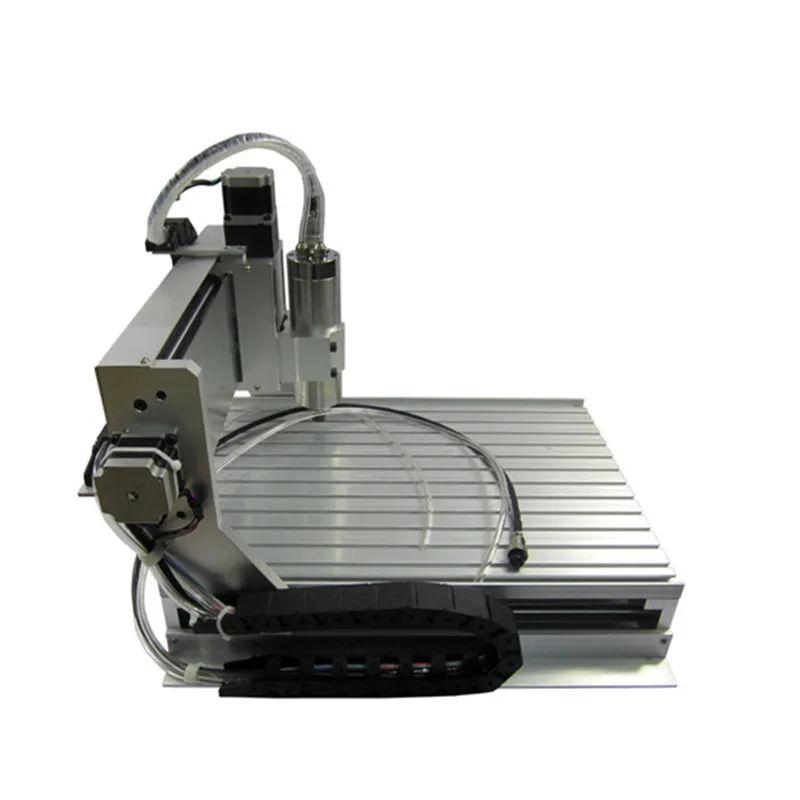

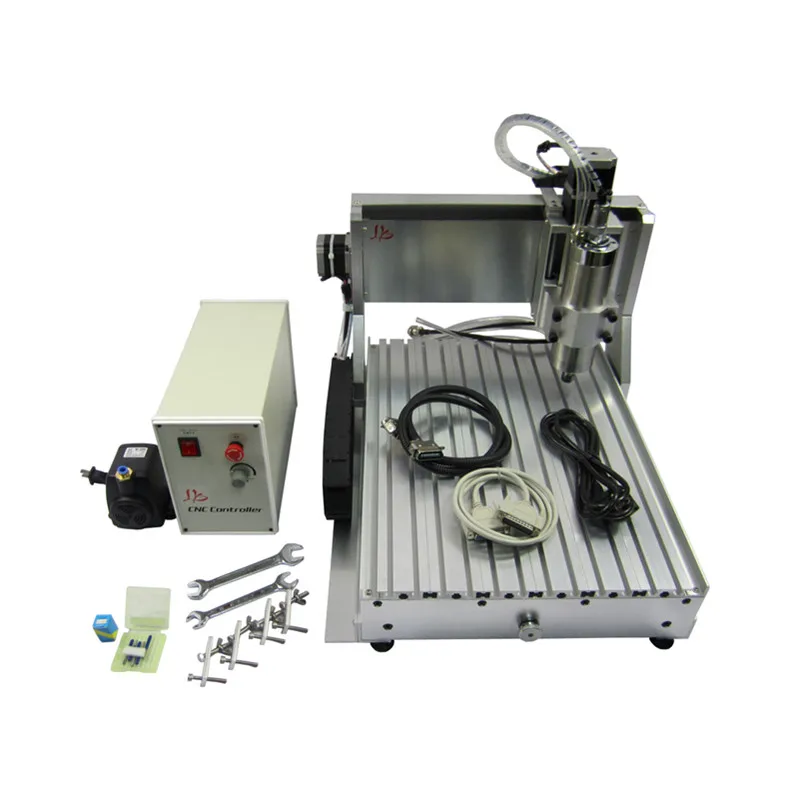

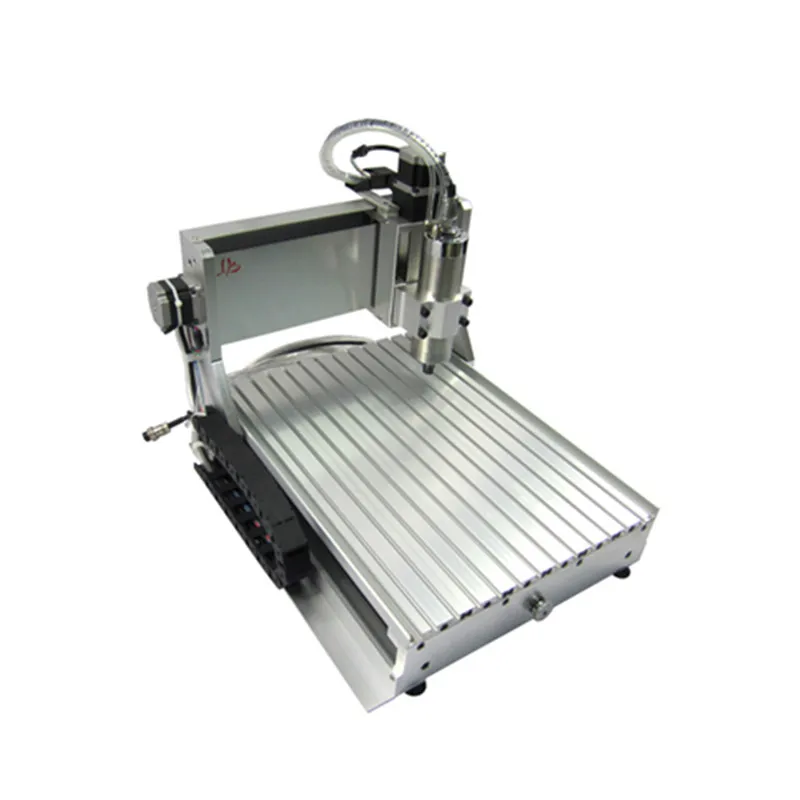

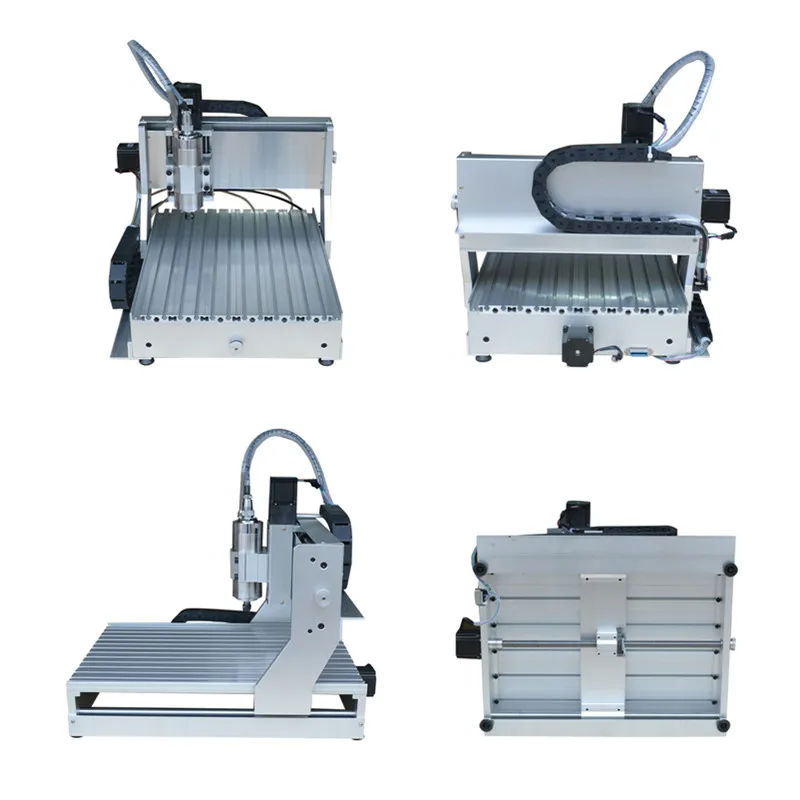

3 Axis 4 Aaixs 2200W Limit Switch Engraver Milling Machine 2.2KW 3040 CNC Router VFD with Water-cooled Spindle
sku: 32992716100
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$1,298.00
Shipping from: China
Technical Details
| CNC or Not: | CNC |
| Collet type: | ER20, 6mm Collet |
| Condition: | New |
| Engraving Area: | 400X300mm |
| Machine Dimensions: | 600X510X480mm |
| Maximum operating speed: | 4000mm/min (Engraving speed :300-3000mm/min) |
| Model Number: | 3040 CNC Router 2.2KW |
| Package Size: | 68cm x 58cm x 52cm (26.77in x 22.83in x 20.47in) |
| Rail Type: | Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
| spindle motor: | 2.2KW VFD water cooling spindle , 0-24000r/min |
| Stepper motor and drive: | two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive. |
| Type of screw: | Ball screw 1605, Pitch 4mm |
| Z-Axis Stroke: | 80mm, Engraving depth depends on the length of the tool edge |
