2430 7200KV 4P Sensorless Brushless Motor with 25A Brushless ESC(Electric Speed Controller)for 1/16 1/18 RC Car Truck
Description
features enhanced throttle response,excellent acceleration, strong breaks and throttle linearity.

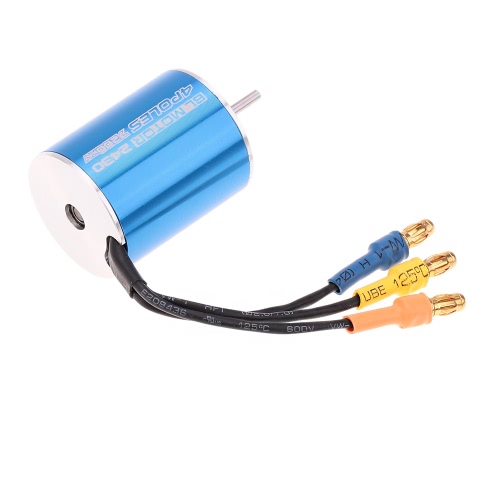

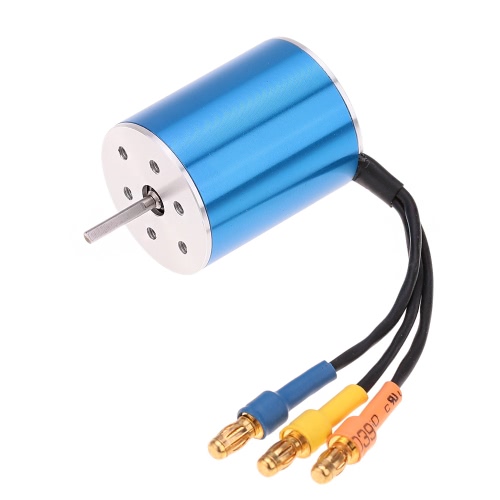

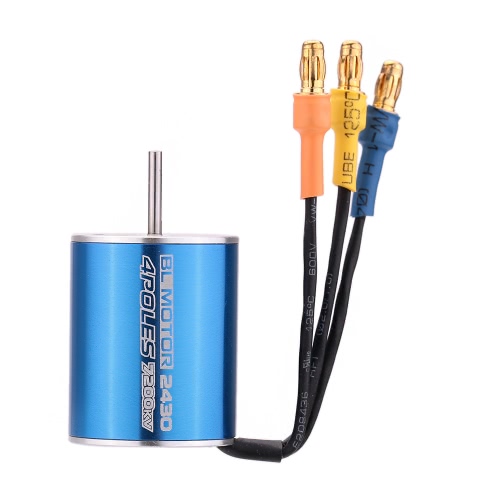

Motor
Features:
4 poles Hi-torque motor design.
CNC machined 6061 T6 billet alumium heatsink can.
High purity copper windings maximizes efficiency.
High RPM ABEC5 oversized bearings.
Universal fits 1/16 1/18 brushless cars-multi-mounting system for M2.5 screws.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
Stator - Super Thin (0.35mm) laminations.
Removable/replaceable.
Precision engineered for maximum energy conversion.
Specification:
RPM: 7200KV
Max Current: 24A
Max Watts: 200W

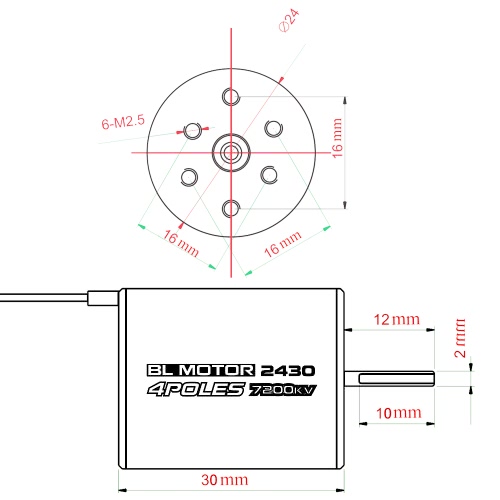

Can Size: 2430
Sensored: No
Can Diameter: 24mm
Can Length: 30mm
Shaft Diameter: 2mm
Shaft Length: 12mm
Bullet Connector: 3.5mm
Weight: 45.5g/1.6oz
Max voltage: 7.4V(2S)
Note: there's some little error from human measuring.

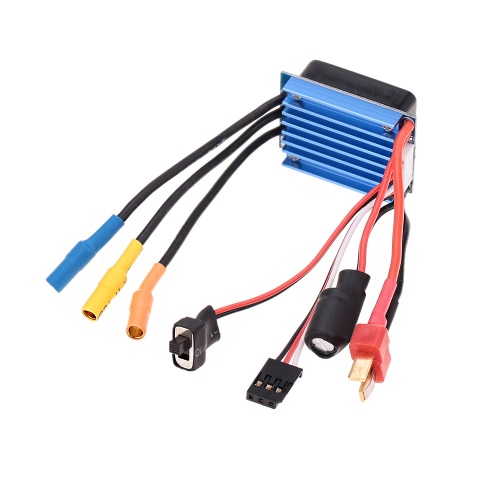

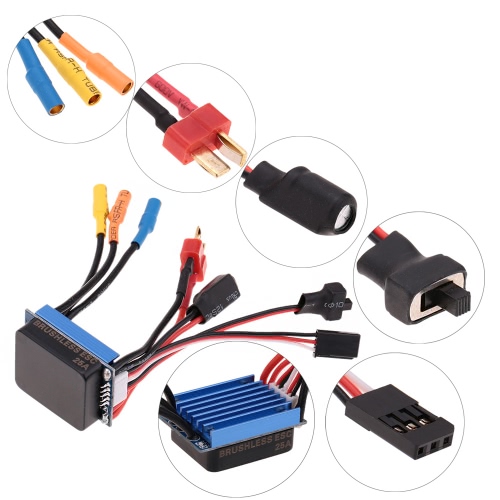

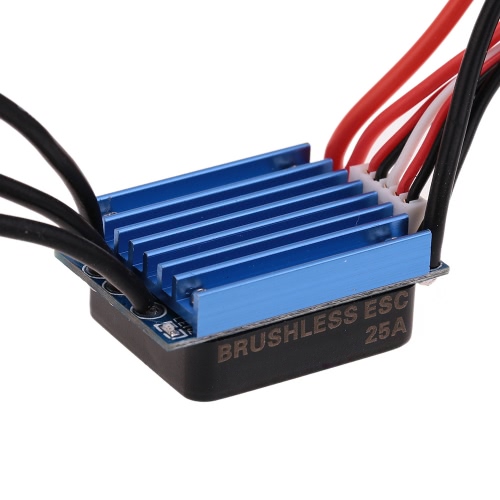

Electric Speed Controller
Features:
Compatible with sensorless brushless motors.
High anti-interference capability.
Using advanced software interface to set up or update the software.
Super smooth and accurate throttle linearity.
Fast response to throttle input.
Mutiple protection features: low voltage cut-off protection, over-heat protection and throttle signal loss protection.
Motor
Features:
4 poles Hi-torque motor design.
CNC machined 6061 T6 billet alumium heatsink can.
High purity copper windings maximizes efficiency.
High RPM ABEC5 oversized bearings.
Universal fits 1/16 1/18 brushless cars-multi-mounting system for M2.5 screws.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
Stator - Super Thin (0.35mm) laminations.
Removable/replaceable.
Precision engineered for maximum energy conversion.
Specification:
RPM: 7200KV
Max Current: 24A
Max Watts: 200W
Can Size: 2430
Sensored: No
Can Diameter: 24mm
Can Length: 30mm
Shaft Diameter: 2mm
Shaft Length: 12mm
Bullet Connector: 3.5mm
Weight: 45.5g/1.6oz
Max voltage: 7.4V(2S)
Note: there's some little error from human measuring.
Electric Speed Controller
Features:
Compatible with sensorless brushless motors.
High anti-interference capability.
Using advanced software interface to set up or update the software.
Super smooth and accurate throttle linearity.
Fast response to throttle input.
Mutiple protection features: low voltage cut-off protection, over-heat protection and throttle signal loss protection.
Technical Details
EanCode: | 791330656691 |
OriginalPrice: | 21.82 |
Warehouse: | CN |
