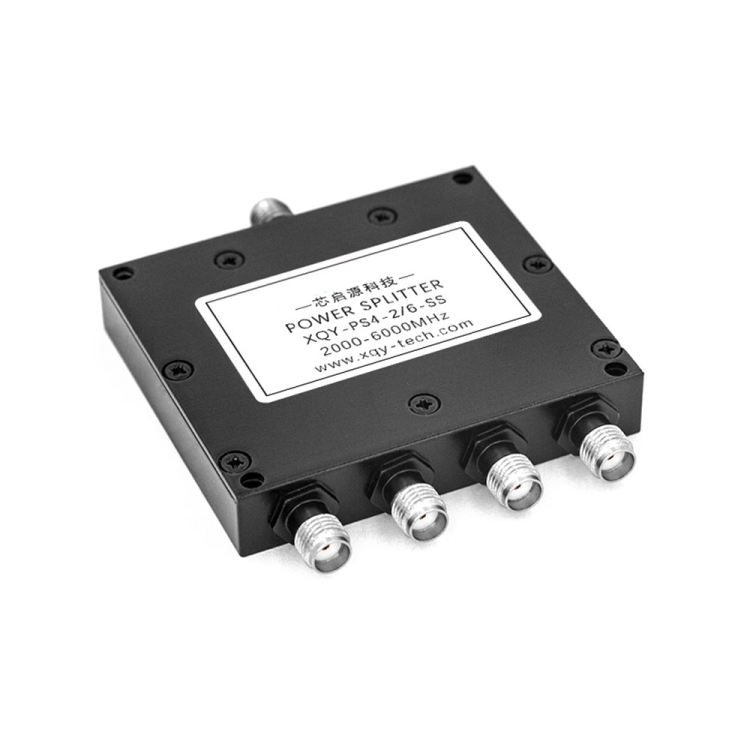

2000~6000MHz SMA 1 To 4 Microstrip Power Splitter

2000~6000MHz SMA 1 To 4 Microstrip Power Splitter
thumb
thumb
thumb
thumb
thumb
артикул: 2504091
СОГЛАСНО НАШИМ ДАННЫМ, ЭТОТ ПРОДУКТ СЕЙЧАС НЕ ДОСТУПЕН
$38.13
Доставка из: Китай
   Описание

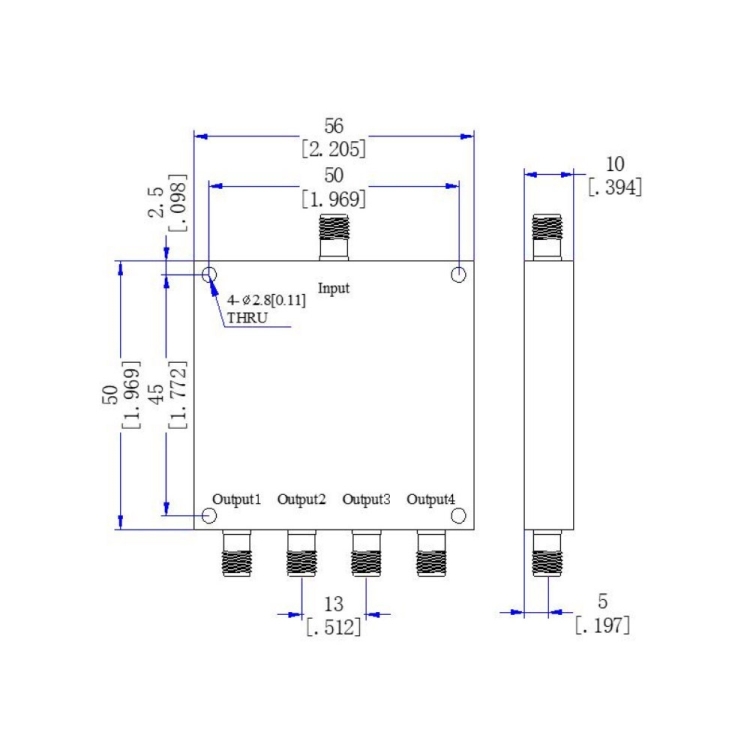

1. Impedance: 50 Ohms2. Phase balance: ±4 degrees3. Surface treatment: black paint4. Port connector: SMA-Female5. Low insertion loss, low standing wave, high isolation6. Working temperature: -45~+85 degrees celsius7. Frequency range: 2000~6000MHz8. Amplitude balance: ±0.2dB9. Isolation: Min.20dB10. Input standing wave: Typ. 1.8/Max.1.2511. Output standing wave: Typ. 1.15 / Max.1.212. Withstand power: 30W for splitter; 2W for combiner13. Insertion loss: less than or equal to 0.8dB (excluding theoretical loss of 6dB)14. Dimensions: 56x50x10mm15. Weight: 64g
