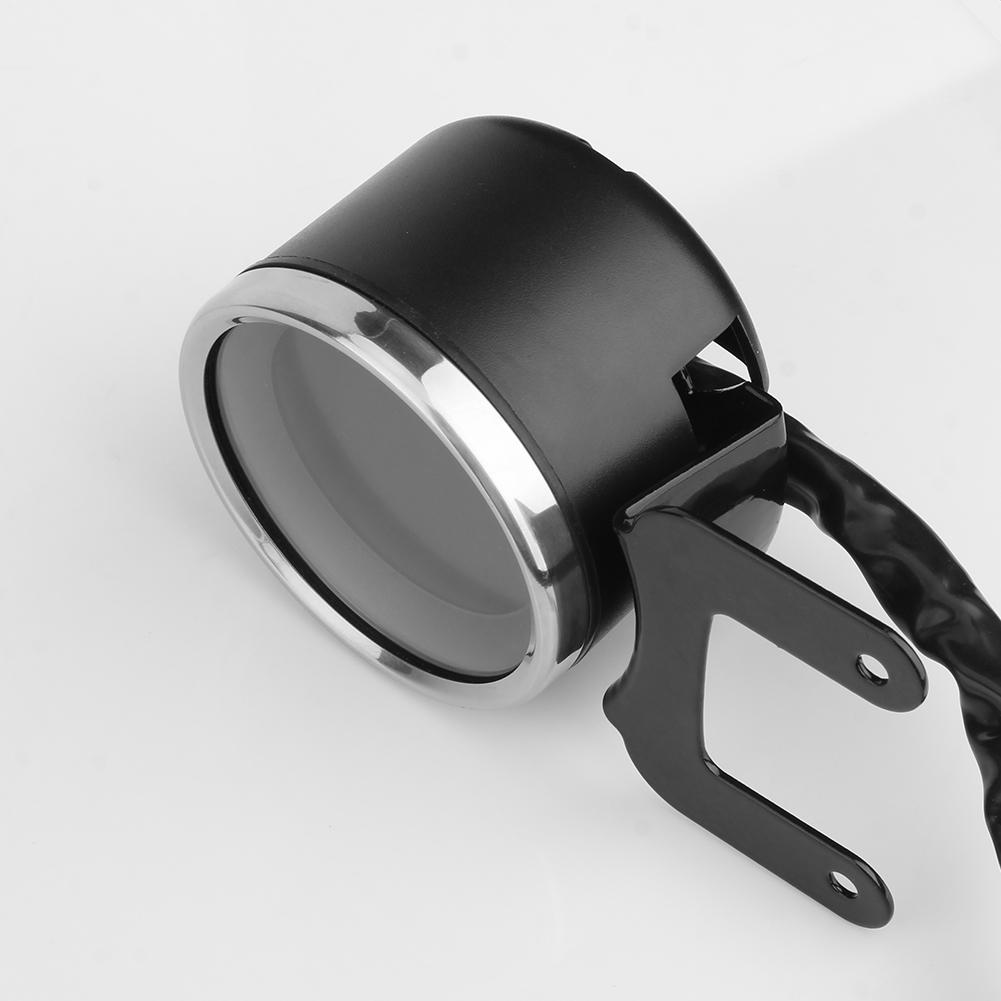

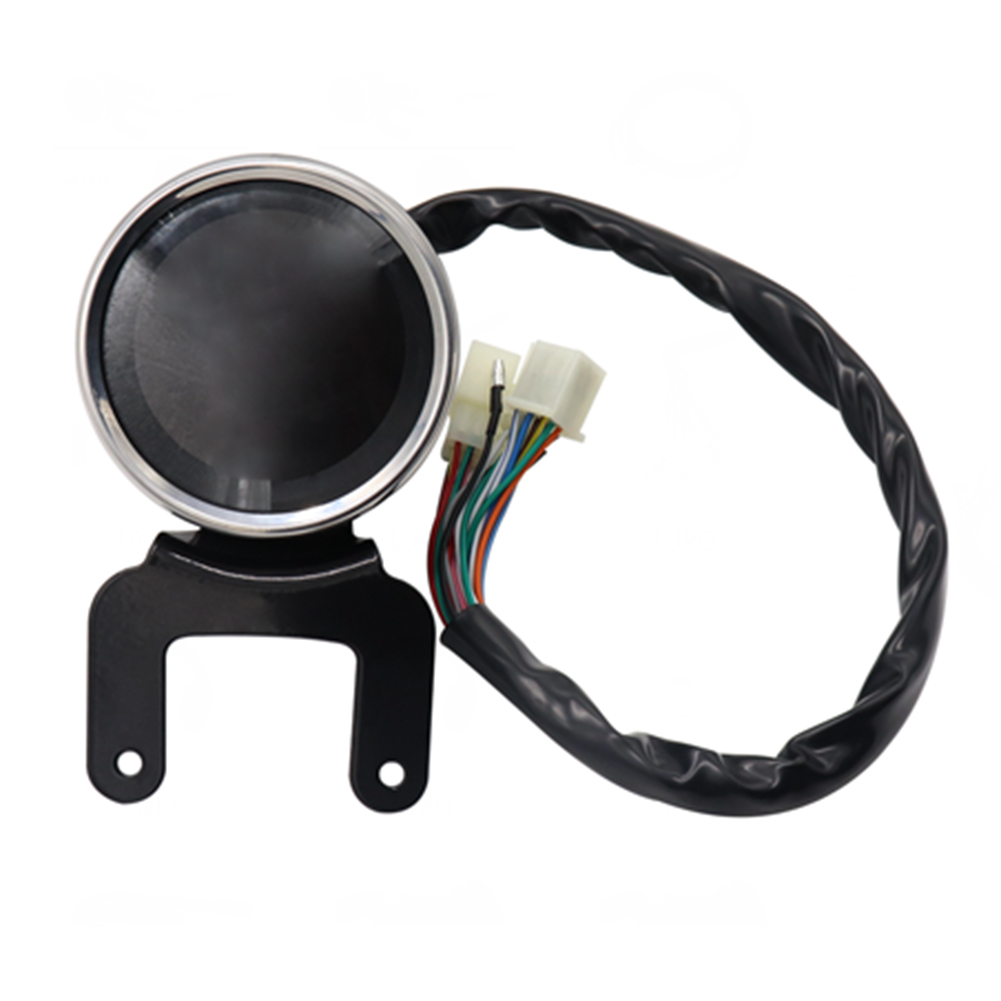

12V Motorcycle LCD Digital Speedometer Tachometer Water Temp Fuel Gauge, 501 Original

Features: 1. Complete functions: the function includes (speedometer, tachometer, fuel gauge, water temperature gauge), the LCD screen is very clear, the viewing angle is large and the soft vision, relieve eye fatigue.2. Left and right turn signals: show where the vehicle\\'s turn signals are located. Usually in the flameout state, when the owner lights the turn signal, the indicator will light up in the corresponding direction.3. Gear position (N, 1-6 gear position display function, and there is no need to add another gear positioner)4. Oil quantity indicator: shows the amount of oil stored in the vehicle. When the electric door is opened and the meter performs self-test, the fuel gauge function prompts you whether you need to refuel.5. High beam: display the status of the vehicle high beam, usually extinguished, when the owner turns on the high beam, the indicator light indicates that the vehicle high beam is on6. KM / H to MPH (metric system display switch)Specifications:Gross weight: 603gNet weight: 556gProduct size: surface diameter: 96mm/3.78\\\"; thickness: 75mm/2.95\\\"; height: 170mm/6.69\\\"Product material: electroplated ironProduct color: black + silverLED backlight: white lightInput voltage: DC 12VWorking voltage: 12VSpeedometer: Tire model 120/80/17, 34Hz means 60KM/H. Speed up 5%, 34Hz means 63KM/HFuel gauge: LCD display F point 8Ω-E point 98ΩWater temperature below 165Ω, long indicator displayMain switch off, standby power consumption is less than 4mAButton Function:A. Short press the button to switch between total and subtotal.B. In the total interface, press and hold the button for 4 seconds, the metric system switches, the default is in metric system; after switching, it can be saved even if it is completely powered off.C. In the subtotal interface, press and hold the button for 4 seconds, and the subtotal is cleared.Wiring method:(round head line):Black: electric switch positive poleRed: battery positive (normally 12V positive)Gray: 6 gear 12 Negative control, LCD displayGreen: 12V negativeBlue/white: oil signalOrange: left turn, 12V positive control, LCD displayLight blue: turn right, 12V positive control, LCD displayBlack/red: speed signal inputBlue: headlights high beam, 12V positive control, liquid crystal displayBlue/yellow: ABS, liquid crystal displayGear line group (6 line group)Green / Red: N file, 12 negative control, LCD displayPink: 1st gear, 12 negative control, LCD displayBlue/red: 2 files, 12 negative controls, LCD displayGreen/Black: 3 files, 12 negative controls, LCD displayYellow / red: 4 files, 12 negative control, LCD displayYellow / white: 5 files, 12 negative control, LCD displayBrown/red: engine fault light, 12V negative control, liquid crystal displayGreen/White: Water temperature signalSensor wiring method (3-wire group):Red/White: sensor positiveGreen: sensor negativeBlack/white: sensor signalPackage Content:1 x Set of Motorcycle Gauge
