12V/24V 6-60V Battery Charging Control Board Charger Power Supply Switch Module

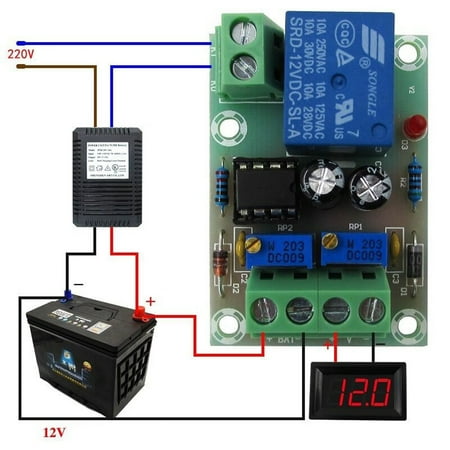

Item Details: * Brand new and high quality *12V / 24V 6-60V battery charging control board charger power switch module Specification: 1.XH-M603 charging control module 12-24V *Model: XH-M603 *Input voltage: DC 10-30V *Display accuracy: 0.1V *Control accuracy: 0.1V *Output type: direct output *Voltage tolerance: +/- 0.1V *Application: 12-24V battery *Size: 82 * 58 * 18mm 2.XH-M604 Battery Charger Control Module DC 6-60V *Name: CNC battery charging control module *Model: XH-M604 *Input voltage: DC 6-60V (maximum 80V) *Display accuracy: 0.1V *Control accuracy: 0.1V *Output type: direct output *Voltage tolerance: +/- 0.1V *Application: 6-60V battery *Size: 81 * 54 * 18mm 3.XH-M602 control battery charging control module AC 220V *Name: CNC battery charging control module *Model: XH-M602 *Input voltage: AC 220V *Display accuracy: 0.1V *Control accuracy: 0.1V *Output type: output switch *Voltage tolerance: +/- 0.1V *Application: for 3.7-120V lithium battery or battery *Size: 86 * 58 * 24mm 4.XH-M601 battery charging control board 12V *Name: 12V charger power control board *Model: XH-M601 *Power supply voltage: 13.8-14.8V * Relay working voltage: 12.4V * Relay disconnection voltage: 14.8V *Voltage tolerance: +/- 0.1V *Voltage detection method: DC voltmeter *Charging mode: 12V battery *Potentiometer adjustment: RP1 RP2 *Size: 50 * 32 * 18mm Using Method: *Set Starting Voltage:in normal display voltage state press the button will display start charging voltage;long press for 3s the digital tube will flash;you can start or stop button to set starting up charge voltage value *Set Stop Voltage:in normal display voltage state press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stoping charge voltage value *Factory Reset:in power on state press the start/stop button at the same time digital tube will display 888;that represents factory reset settings Potentiometer Adjustment: 1.RP1:adjust storage battery start charging voltage (low voltage setting:clockwise becomes higher counter-clockwise becomes lower) 2.RP2:adjust storage battery disconnect charging voltage (low voltage setting:clockwise becomes higher counter-clockwise becomes lower) Package Contents: 1*Power Supply Switch Module Notes: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
