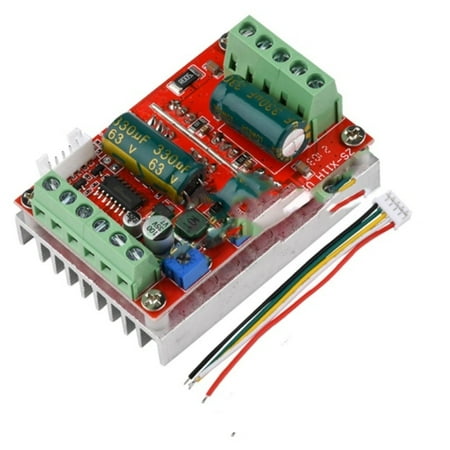

12V 24V 48V BLDC 6-60V 400W three-phase brushless motor controller driver board

Features: 1. MA MB MC phase line output to connect the motor 2. 5V GND The motherboard comes with a 5V power supply (current does not exceed 30mA) 3. VCC GND Motor main power supply (DC external power supply). 4. SC speed control pulse signal output 5 Forward and reverse control interface (can also be connected to an external switch) 6. VR speed control signal input (on-board potentiometer speed control can also be connected to 0-5V analog analog PWM duty cycle to support dual signal input speed control) 7.Ha Hb Hc + 5V GND Hall signal power input generally there are 5 corresponding lines to Hall motor. Full SMD process performance is stable positive and negative functions hint: After receiving the goods there are generally 5 Hall wires on the brushless motor. Two of them are Hall power lines. These three Hall signal lines must be distinguished. Especially the power cord should not be confused. The on the board must match the of the 3-phase wires on the motor driver board for proper operation. If you don t know the definition of the hall wire you can debug the low voltage and low current at the first power-up. Change the of the Hall lines to normal operation do not use high current and high voltage debugging if the Hall lines are not connected in high voltage and high current test the machine there is a risk of damage to the tube MOS if all three Hall signal lines the motor Running smoothly. The low-speed start is smooth and the torque is large. If the three Hall signal wires are not connected it has the following characteristics: 1. The motor cannot be started normally or is difficult to start (sometimes it is necessary to manually turn the motor to start) 2. The motor starts to vibrate without electricity. Motherboard Specifications: Product Name: 450W Brushless Hall DC Motor Driver Model: ZS-X11D1 working Voltage: 9-60V Peak current: 16A 20A peak rated peak Power: 450W Overcurrent Protection: Yes Product size: length 63MM* width 45MM* height 28MM Weight: about 93g. Precautions: 1. There is no fuse in the power supply circuit of the main board and the built-in self-addition will cause permanent damage to the chip on the board (even 2 seconds are not allowed). 2. During normal operation the motor output has sampling overcurrent protection. Since the power and current of the module are very large please do not short circuit when the module does not work normally. Once the short circuit has the possibility of burning the wire first test the wiring tester with a small current and low voltage and then pass the high current and high voltage after ok. Since it is sold as a bare board module please pay attention to the insulation of the wiring and the strong voltage is not allowed to touch the board. 3. Do not connect the motor whose voltage and current are obviously inconsistent with the drive module or far away from the motor so as to avoid unexplained damage. Package includes: 1*Driver board 1*line
