12-24V LED Light Bar ON/OFF Laser Rocker Switch Relay Wiring Harness, 501 Original

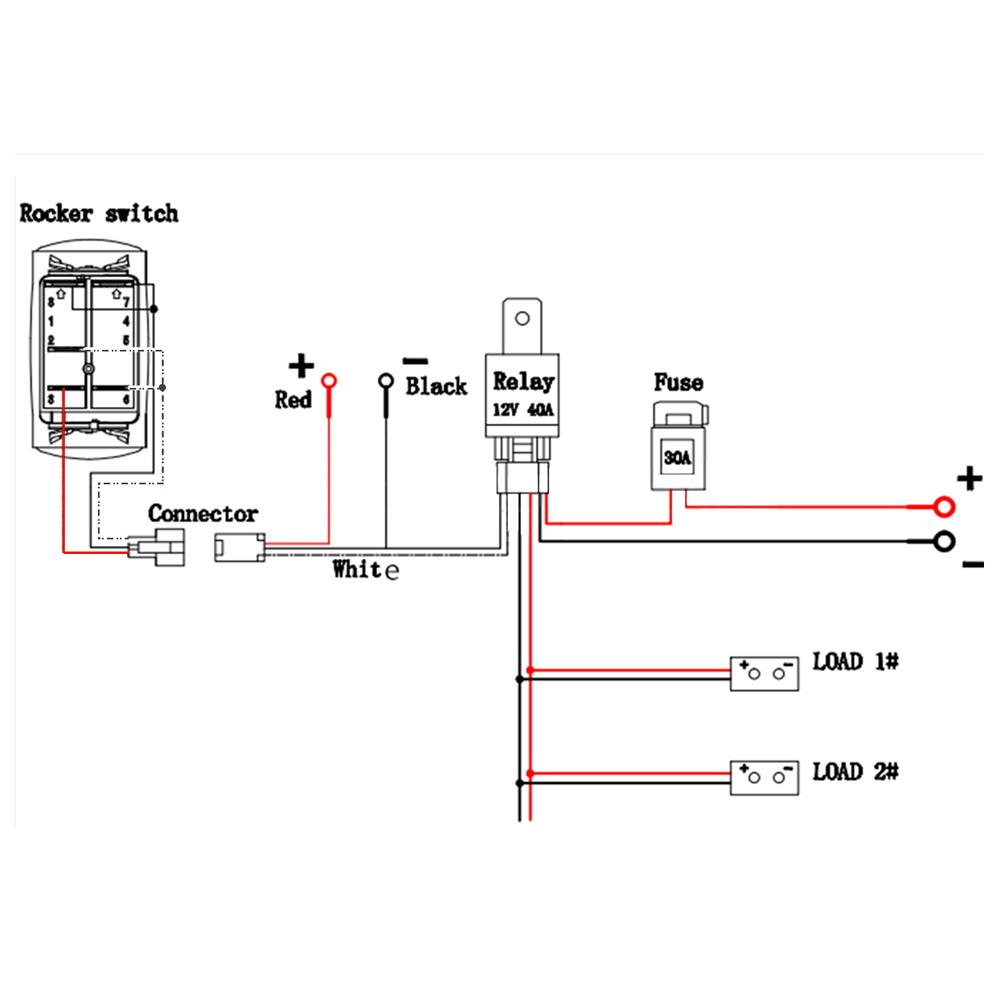

Features:The wiring harness for LED off road lights is the perfect accessory for off road vehicles, working vehicles, and any automobile that could use a relay to power specific equipment.This wiring harness for LED off road lights simplifies the installation process of powering various equipment on all automobiles.Specifications: Wattage: Max 300WColor: BlackRelay: 12V 40AFuse: 30AWaterproof Rating: IP67Light Color: BlueQuantity: 1 pcDimension: like the picture showMaterial: ABS & Environmental anti-retardant materials11 Patterns(type):LED Light Bar / Reverse Light / Spot Light / Tray Light / Zombie Light / Rear Light / winch Out / Off-Road Light / LED Work Light / Fog Light / Roof LED Light BarSwitch type: Rocker switch Off/OnOperating Voltage: 20A/12V --10A/24V DC Fitment:All automobiles and devices equipped with a 10 to 30 Volt DC power source. Full Wiring Kit for All Light Bars with LASER ROCKER SWITCH ON/ OFF switch.Installation: (Just for reference)1. Connect the the red+ wire from the fuse to battery +; connect the black wire from the reply to the battery -;2. Connect the wire for lights bar from the relay; (red/black correspond to the wire of lights bar)3. Connect the red +/black- wire of the switch to battery or any place of your car system to get power for the switch4. Turn on on/off button of switch to test the lights barNote:1. Please check the size measurement chart carefully before making payment.2. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)3. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.4. Instruction is not included.
