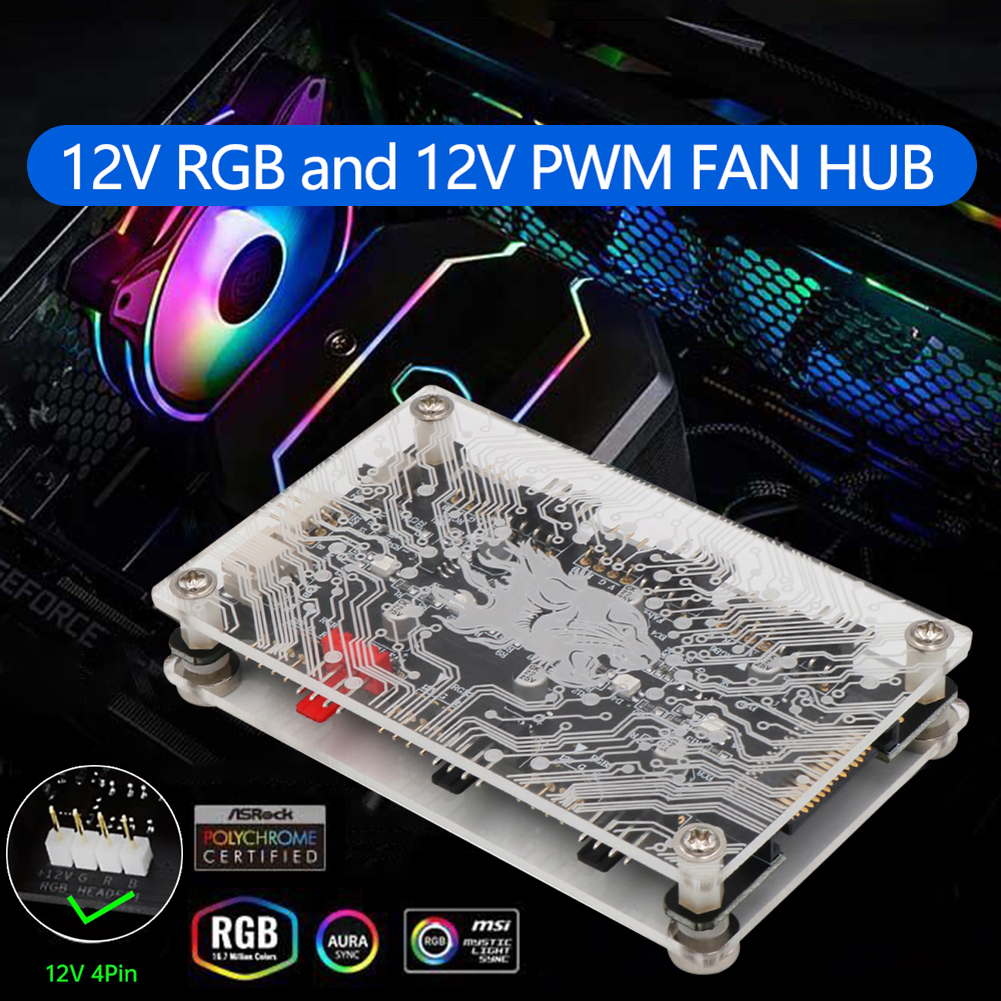

1 to 6 Fan Splitter HUB 4 Pin 12V ARGB LED Strip 12V PWM Cooler Adapter, 501 Original

For PC Case Chassis 1 to 6 Multi Way Fan Splitter HUB 2 in 1 4 Pin 12V ARGB LED Strip 12V PWM Cooler Adapter ControllerFeature:1. This 4-Pin RGB and 4-Pin PWM HUB can simultaneously expand any 12V addressable RGB products and It only occupies one RGB connector on the motherboard.2. This HUB is only compatible with 4Pin 12V addressable RGB headers or controllers. Do not connect to a 5V 3-pin RGB component, please make sure that the connector are aligned the arrows on the header.3. 6x PWM 4-pin header connector, compatible with 3-pin cable (Speed control function is not applicable to 3-pin fan), the red 4-pin 90° connector is only connected to CPU fan.4. Expand the 4-pin fan interface to solve the problem of insufficient motherboard fan interface. Specially designed for 12V 4-Pin 3-Pin fans, supporting up to 10 channels of fans to be activated at the same time.5. In the HUB interface, the RED CPU interface is a dedicated interface for the CPU fan (with speed detection function). Since the motherboard can only receive one speed signal, the remaining 9 conventional fan interfaces have PWM function, but no speed signal.6. Suitable for 4-pin and 3-pin fans. Please note that the speed of the 4Pin fan can be adjusted by temperature control. Also can be used for 3Pin fan, but because 3Pin has no PWM function, it is at a fixed speed after plugging in.7. The magnetic bracket design can easily fix the HUB in the chassis.Specification:Product Size: 100 X 62 X 16mm/3.94 X 2.44 X 0.63\\\"RGB Cable Length: 60cm/23.62\\\"Note:1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!2. Please allow 1-3mm measuring deviation due to manual measurement.
