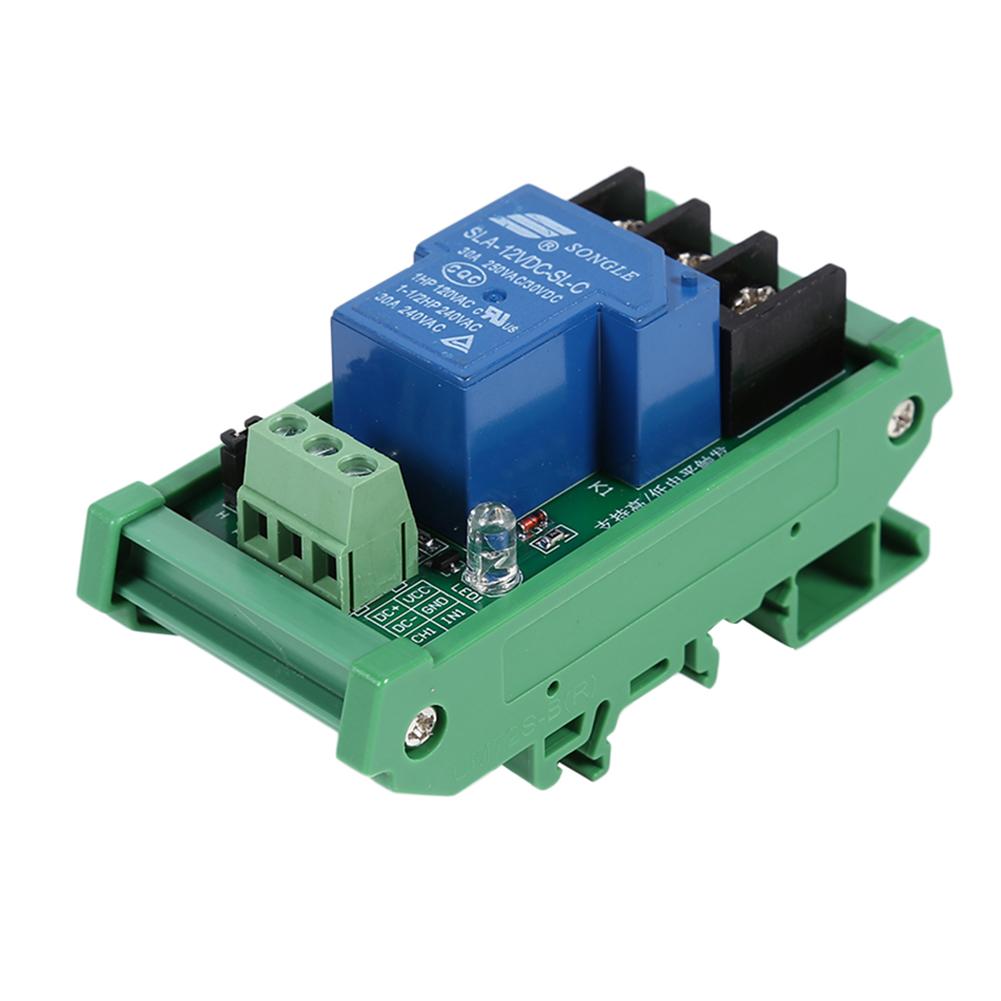

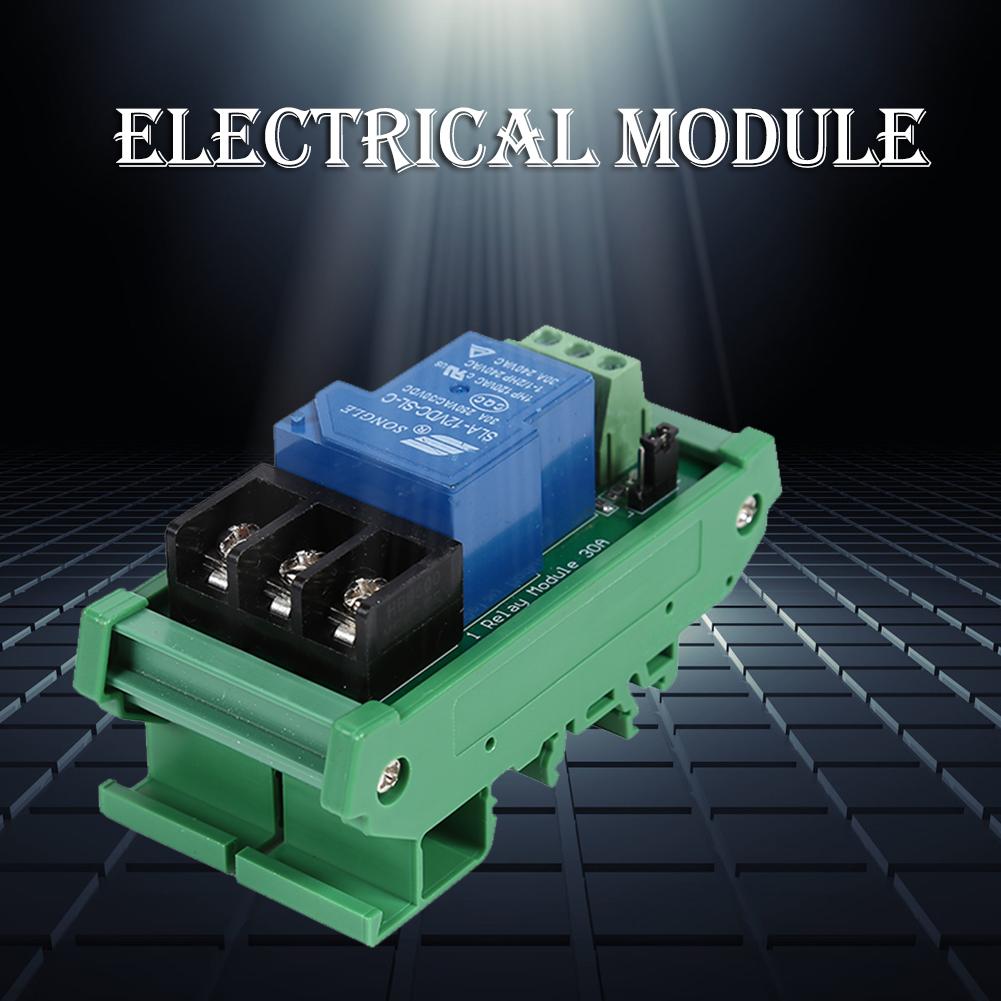

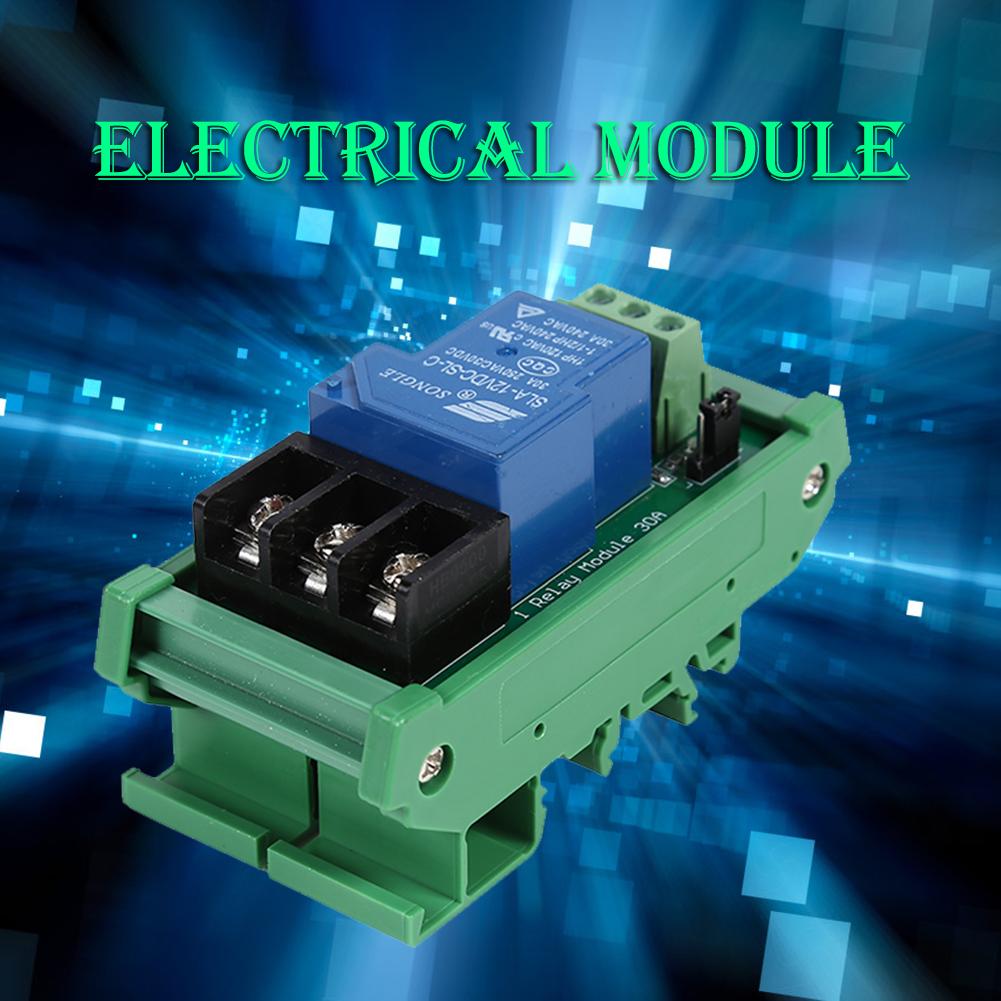

1 Way 30A Relay Module High/Low Level Trigger Relay Module w/Optocoupler, 501 Original

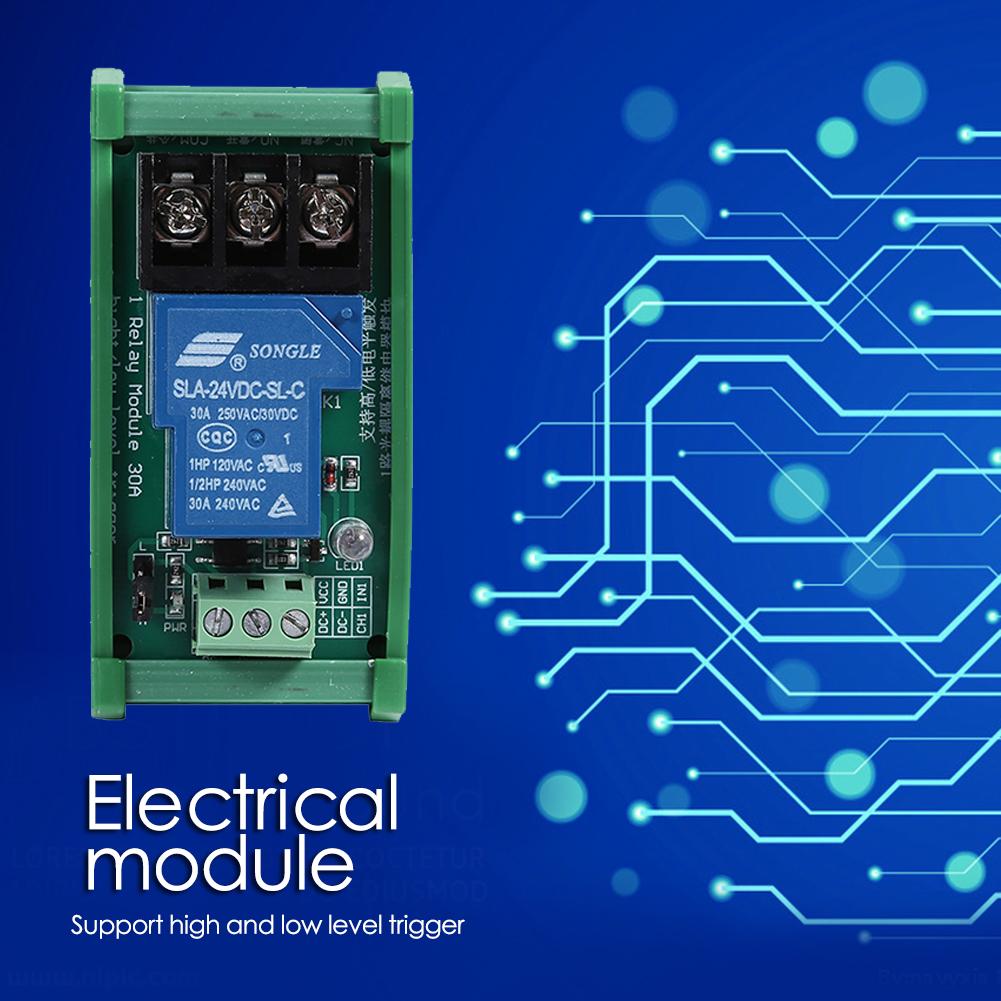

Feature:1. The module adopts genuine and high quality 30A relay. The maximum load of the interface is usually opened: AC 250V/30A, DC 30V/30A.2. Using patch optocoupler isolation, strong driving ability, stable performance, trigger current 5mA.3. The working voltage of the module is 5V, 12V and 24V.4. Modules can be triggered at high or low levels by jumpers.5. The interface design is humanized. All interfaces can be directly connected through the terminal, which is very convenient.Specification:Module size: 72mm*40mm*24mm/2.83*1.57*0.94''Product weight: 88gThere are four fixed bolt holes with 3.1mm holes and 44.5mm*27.5mm/1.75*1.08'' spacing.Static Current: 5mAMaximum current: 50mA/80mA/190mATrigger current: 2-4 mARelay version: 5V/12V/24VInterface Description:1. DC+: Modular DC power supply positive pole (trigger terminal voltage is positive pole)2. DC-: module DC supply negative pole (trigger terminal voltage is negative pole)3. IN: Signal trigger (default trigger voltage is the same as power supply)4. Selection of high/low level triggering mode, as shown in the figure, when jumper is connected to L terminal, IN terminal is triggered at low level, and H terminal is triggered at high level.5. Normally Closed End (NC): Normally Closed End of Relay6. Common End (COM): Relay Common End7. Often Start (NO): Relay Often OpenNote: Maximum AC 250V, 10A AC load and DC30V 10A DC load can be controlled.Please allow 1-3mm differs due to manual measurement.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.1 X 1 Channel 30A Relay Module
