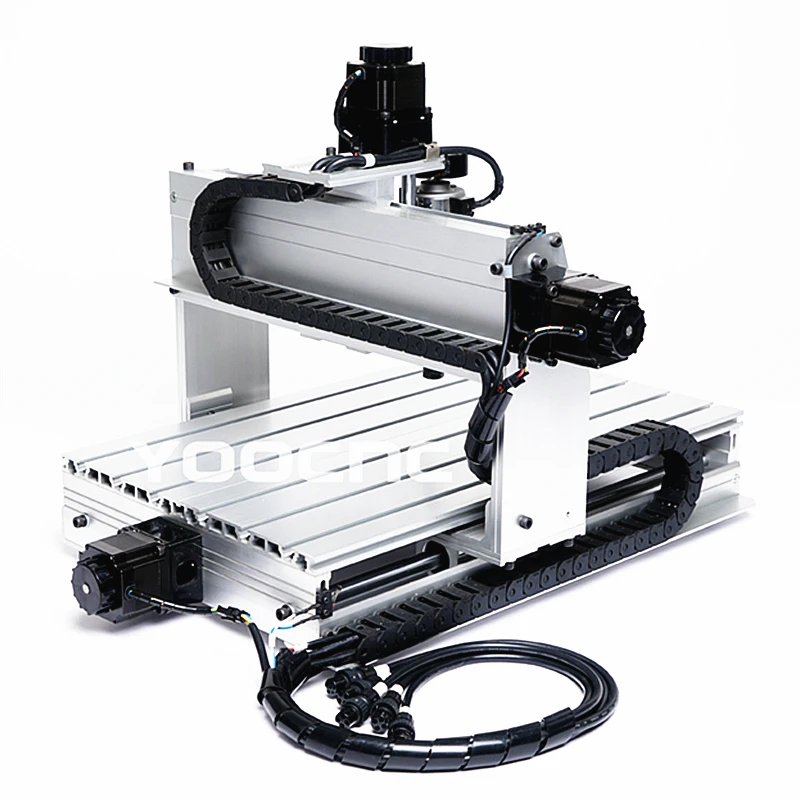

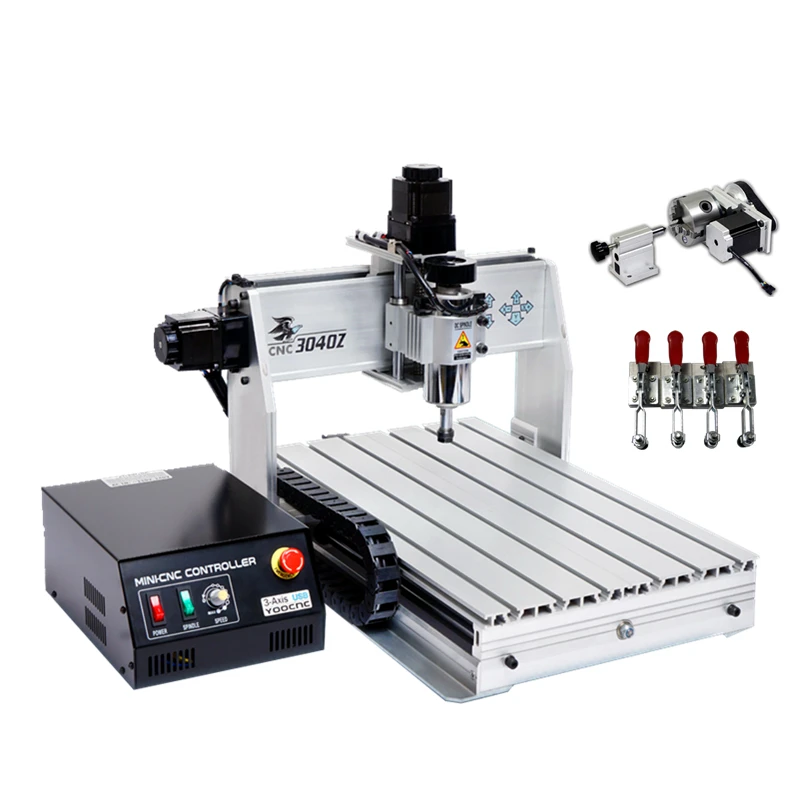

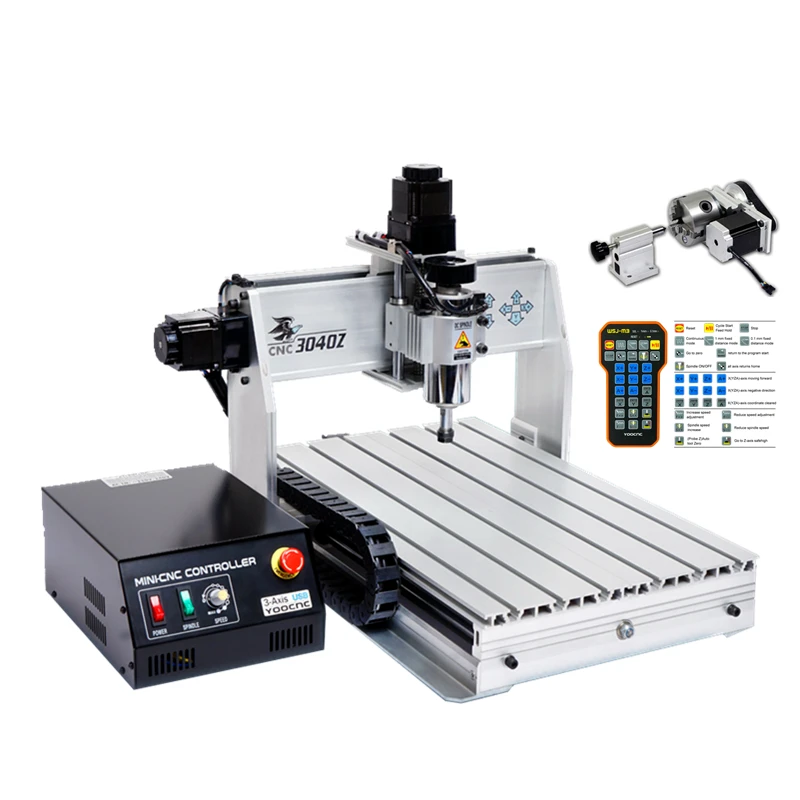

Мини токарный станок с ЧПУ 3040Z-DQ фрезерный станок с ЧПУ 300*400 рабочая зона с usb-портом 3 оси 4 оси фрезерование с ручкой опционально
sku: 32958860344
ACCORDING TO OUR RECORDS THIS PRODUCT IS NOT AVAILABLE NOW
$880.54
Shipping from: China
Technical Details
| Acceptable material thickness: | 0~80mm |
| CNC or Not: | CNC |
| Collet type: | ER11,1/8"(3.175mm) Collet |
| Command code: | G code/.nc/.ncc/.tab/.txt |
| Condition: | New |
| Engraving Area: | 380X285mm |
| Machine Dimensions: | 620X490X410mm |
| Maximum operating speed: | 4000mm/min (Engraving speed: 100-2500mm/min) |
| Model Number: | 3040Z-DQ |
| Rack material: | 6061 and 6063 Hard aluminum alloy |
| Rail Type: | Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
| Software Compatability: | Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |

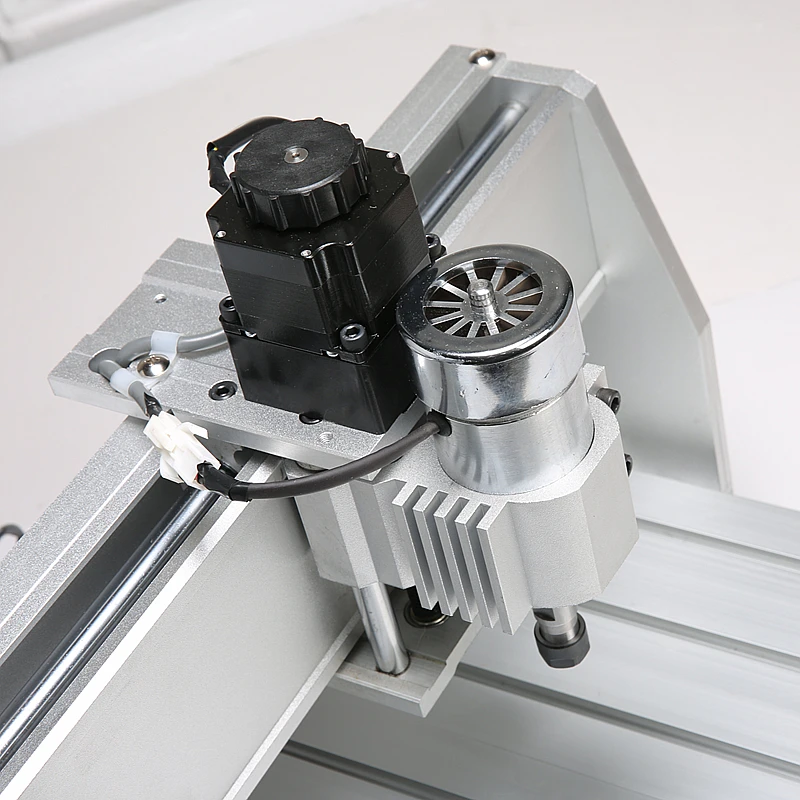

| spindle motor: | 300W/11000r/min(Very small noise) |
| Stepper motor and drive: | two-phase hybrid stepping motor 57BYGH-1.8A |
| Type of screw: | Ball screw 1605, Pitch 4mm |
| Warranty: | 1 year |
| Z-Axis Stroke: | 55mm, Engraving depth depends on the length of the tool edge |
